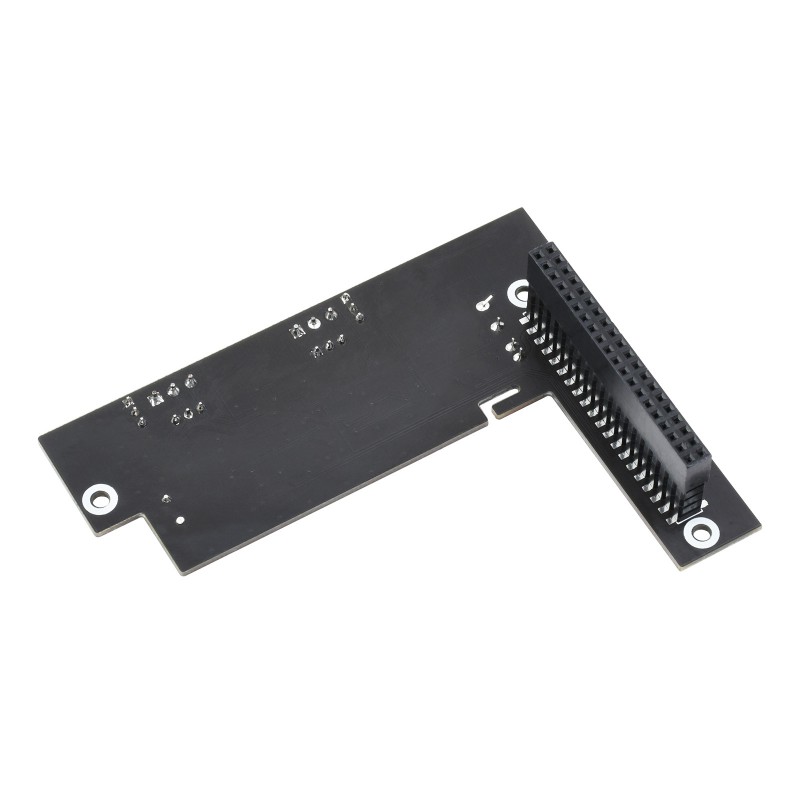

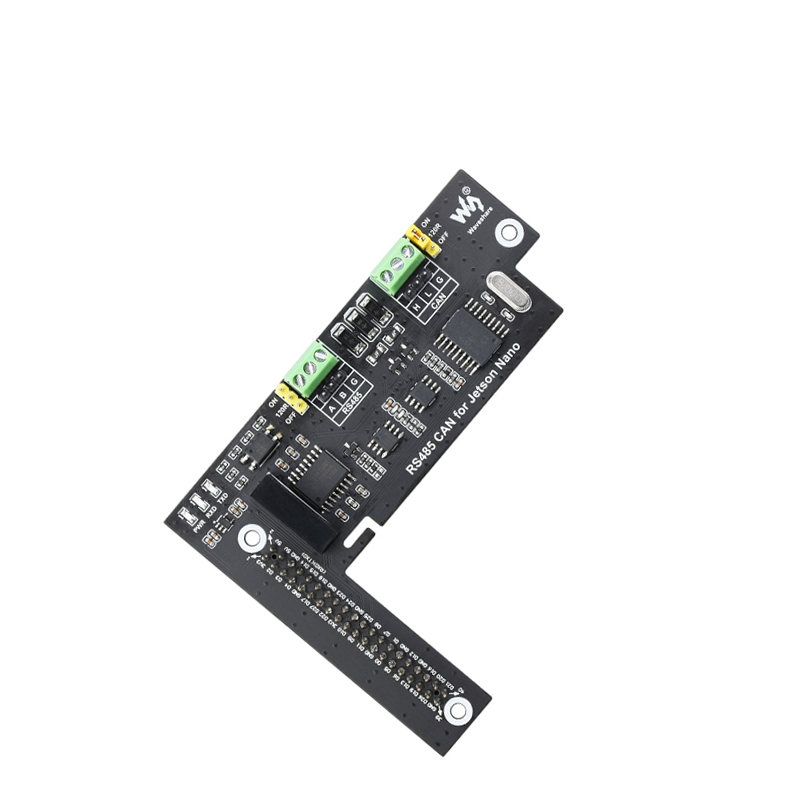

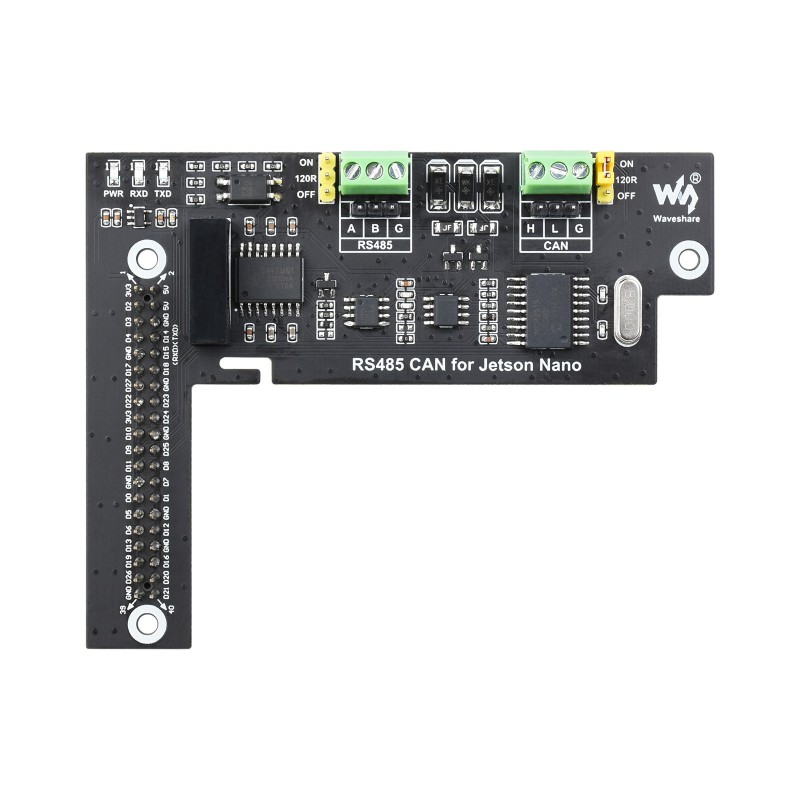

Waveshare RS485 CAN Expansion Board for Jetson Nano Digital Isolation Built-In Protection Circuit
- RS485 CAN Expansion Board Designed For Jetson Nano
- Digital Isolation, Built-In Protection Circuit
- Standard 40PIN GPIO extension header
- Reserved control pins, allows to work with other control boards
SKU: Not Found
Brand: WAVESHARE
Out of stock
₹2197.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
Waveshare RS485 CAN Expansion Board for Jetson Nano, Digital Isolation, Built-In Protection Circuit Ship Time Lead Time: 1~3 Days. Onboard SM24CANB Transient Voltage Suppressor(TVS), Prevent The Damage Of Static Electricity, Surge Voltage And Transient Peak. Voltage, Making RS485 Communication More Stable And Safer RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
Features:
- Standard 40PIN GPIO extension header
- Supports direct attaching to Jet-son Nano
- Onboard CAN controller MCP2515 via SPI interface
- Matching with SIT65HVD230DR transceiver.
- Features RS485 function, controlled via UART
Package Includes:
1 x Waveshare RS485 CAN Expansion Board for Jetson Nano
1 x Screws package
Technical Specifications
| Can controller | MCP2515 |
|---|---|
| Can transceiver | SIT65HVD230DR |
| Communication Mode | Half-duplex |
| Item Type | Expansion Board |
| Mounting voltage | 3.0mm |
| Operating Voltage (V) | 3.3 |
| Overall Dimension | 100 × 79mm |
| RS485 transceiver | SP3485 |
| Shipping Dimensions | 14 × 10 × 4 cm |
| Shipping Weight | 0.082 kg |
