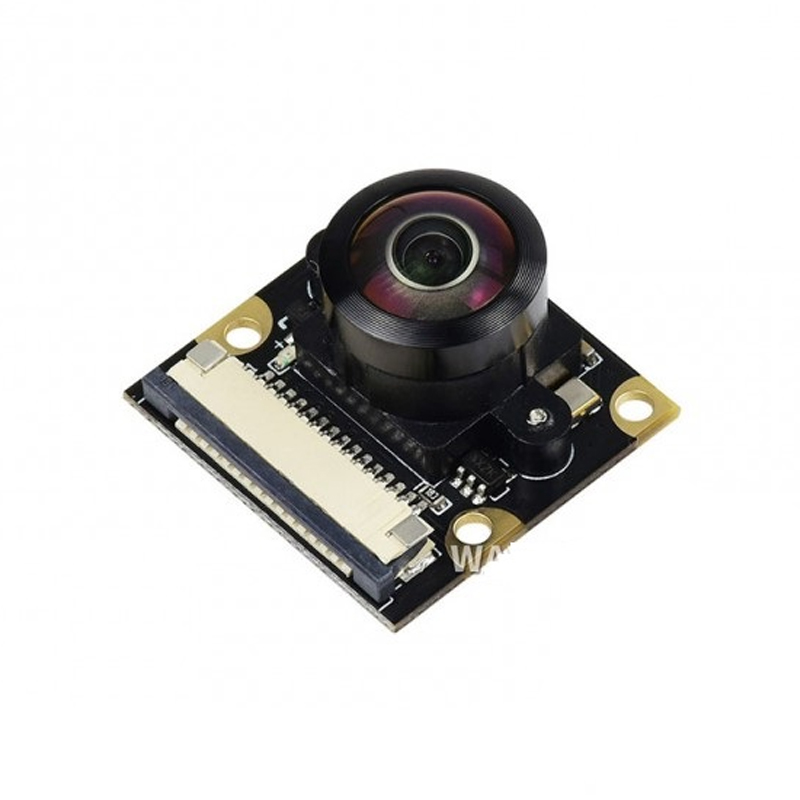

Waveshare RPi Camera (M), Fisheye Lens
- Model: Waveshare RPi Camera (M)
- Aperture (F): 2
- CCD size: 1/4inch
- Focal Length: 0.87 mm
- Sensor best resolution: 1080p
- picture resolution: 2592 × 1944
SKU: Not Found
Brand: WAVESHARE
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
Raspberry Pi Camera Module, adjustable-focus.After the Bullseye version of the Raspberry Pi image, the underlying Raspberry Pi driver was switched from Raspicam to libcamera. libcamera is an open-source software stack (will be called driver later, which is easy to understand), which is convenient for third-party porting and development of their own camera drivers. As of 2021-12-20, there are still many bugs in libcamera, and the current libcamera does not support python, so the Raspberry Pi official still provides a method for installing and downloading Raspicam. For users who are difficult to switch to libcamera but need to use the latest system, please directly refer to the Raspicam instructions.
Useful link:
For Hardware and Software setup, please follow this tutorial.
Features:
- Raspberry Pi Camera
- Supports connecting fill flash LED
- supports all revisions of the Pi
- Fisheye Lens, offers wider field of view
- 5 megapixel OV5647 sensor
- Adjustable focus distance
Package Include:
1 X RPi Camera (M)
1 X 15-pin FFC (opposite sides contact)
Technical Specifications
| Angle of View (diagonal) | 200 degree |
|---|---|
| Aperture (F) | 2 |
| Camera Type | Fisheye Lens |
| Dimensions (L x W x H) mm | 25mm x 24mm |
| Focal Length (mm) | 0.87mm |
| Item Type | Camera Module |
| Operating Voltage (V) | 3.3 |
| Picture resolution | 2592 × 1944 |
| Resolution | 5MP (2592 x 1944) |
| Sensor best resolution | 1080p |
| Shipping Dimensions | 11 × 5 × 3 cm |
| Shipping Weight | 0.017 kg |
| Supported | 1080p30, 720p 60 and 640x480p 60/90 video record |
