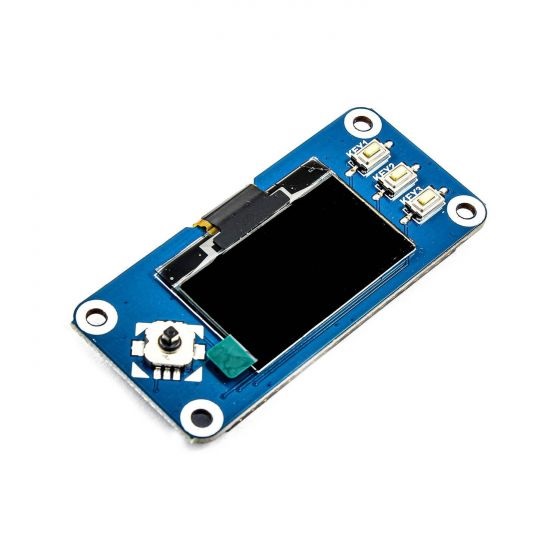

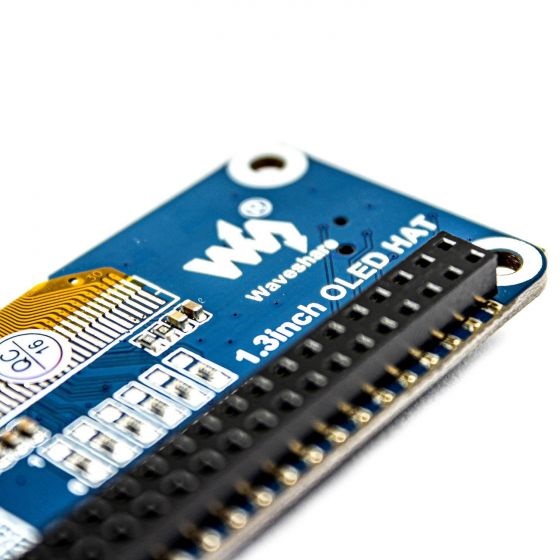

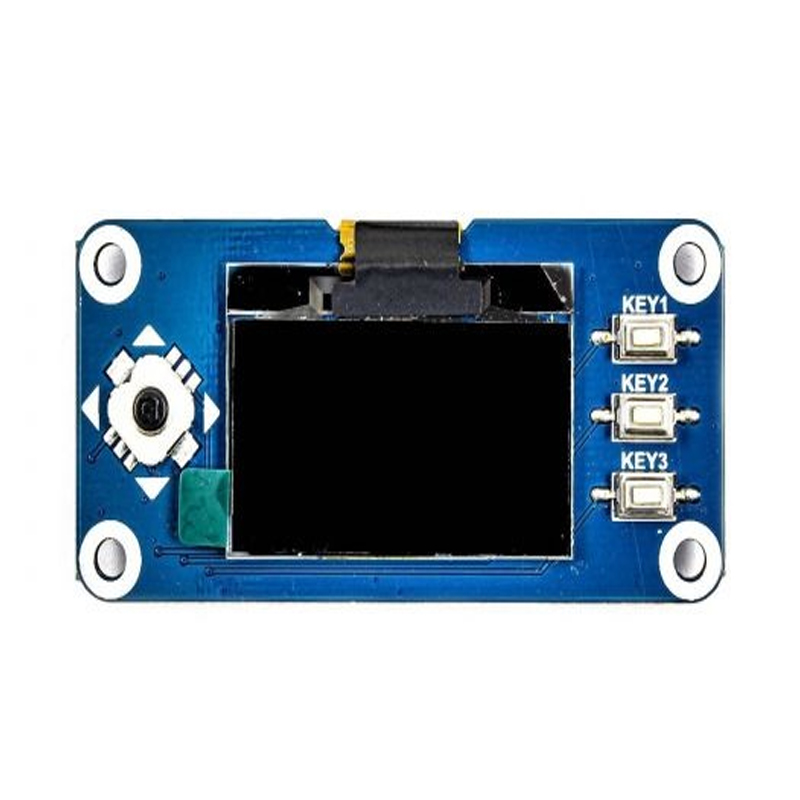

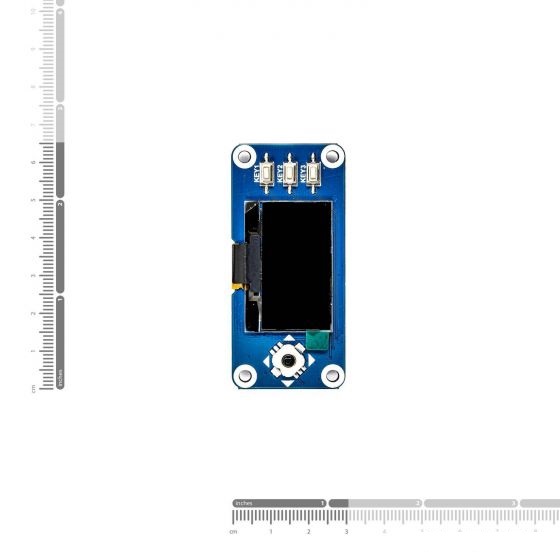

This is an OLED display HAT for Raspberry Pi, 1.3inch diagonal, 128×64 pixels, with embedded controller, communicating via SPI or I2C interface. Trying to add a control interface for your Pi? Even making the Pi into a handheld game console? This compact display would be the ideal choice. Standard Raspberry Pi connectivity, compatible with and direct-pluggable onto Raspberry Pi 2B/3B/Zero/Zero WOptional interfaces: 4-wire SPI, 3-wire SPI, I2C, configured via an onboard resistor.1x joystick (5-position), 3x pushbuttons, handy and useful.Comes with development resources and a manual (examples for Raspberry Pi/Arduino/STM32).

Features:

1. Standard Raspberry Pi connectivity, compatible with and direct-pluggable onto Raspberry Pi B/3B/Zero/Zero W

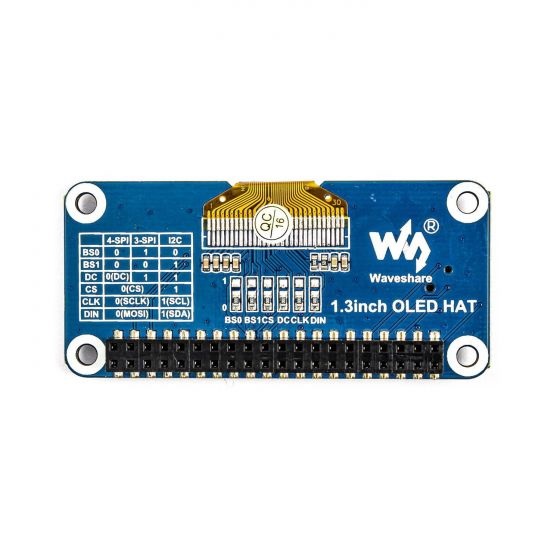

2. Optional interfaces: 4-wire SPI, 3-wire SPI, IC, configured via onboard resistor
3. 1x joystick (-position), 3x pushbuttons, handy and useful
4. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM3)

Useful link:

For Software setup, please follow this tutorial.

Package Includes:

1 x Waveshare 128×64 1.3inch OLED display HAT for Raspberry Pi

1 x screw pack(2 pieces)
