ECG EMG and Heart Rate Sensors

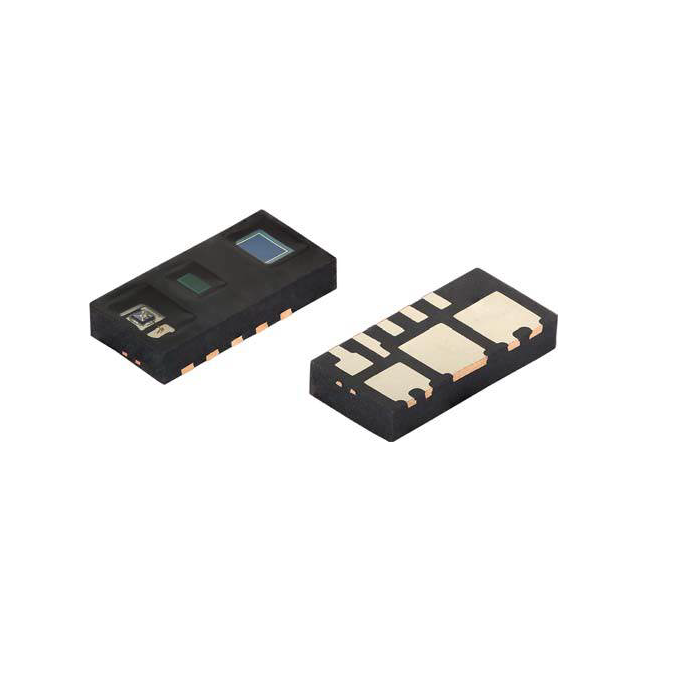

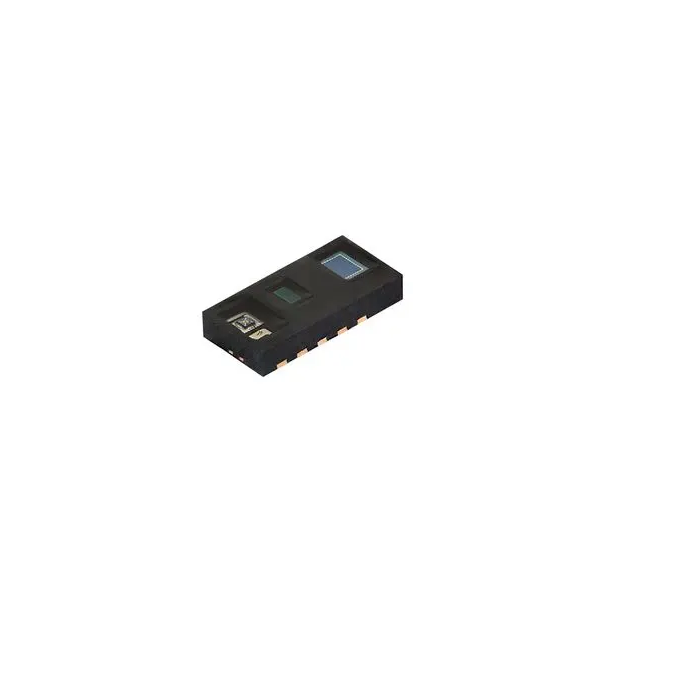

Vishay VCNL4020C Ambient Light Proximity Bio Sensor I2C
- Product: VCNL4020C-GS08 BIOSENSOR
- Operating Voltage Range (V): 2.5 to 3.6
- I2C Bus Voltage Range (V): 1.7 to 5
- LED Pulse Current (1) (mA): 10 to 200
- Ambient Light Range (lx): 0.25 to 16 383
SKU: Not Found
Brand: Unknown Brand
Out of stock
₹498.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The VCNL4020C is a fully integrated biosensor and ambient light sensor. Fully integrated means that the infrared emitter is included in the package. It has a 16-bit of resolution. It includes a signal processing IC and features a standard I2C communication interface. It features an interrupt function. Built-in infrared emitter and broader sensitivity. photodiode allows to also work with green and red LEDs 16-bit effective resolution ensures excellent cross talk immunity. Programmable LED drive current from 10 mA to 200 mA in
10 mA steps Excellent ambient light suppression through signal modulation
Applications
- Wearables
- Health monitoring
- Pulse oximetry
Features:
- Package type: surface-mount
- Package form: SMD
- Dimensions (L x W x H in mm): 4.90 x 2.40 x 0.83
- Communication via I2C interface
- Interrupt function
Package Includes:
1 x VISHAY VCNL 4020C-GS08 BIOSENSOR
Technical Specifications
| Ambient Light Range (lx) | 0.25 to 16 383 |
|---|---|
| LED Pulse Current (mA) | 10 to 200 |
| Operating Voltage (V) | 2.5 to 3.6 |
| Outputs | 16 bit, I2C code |
| Shipping Dimensions | 1 × 1 × 1 cm |
| Shipping Weight | 0.04 kg |
