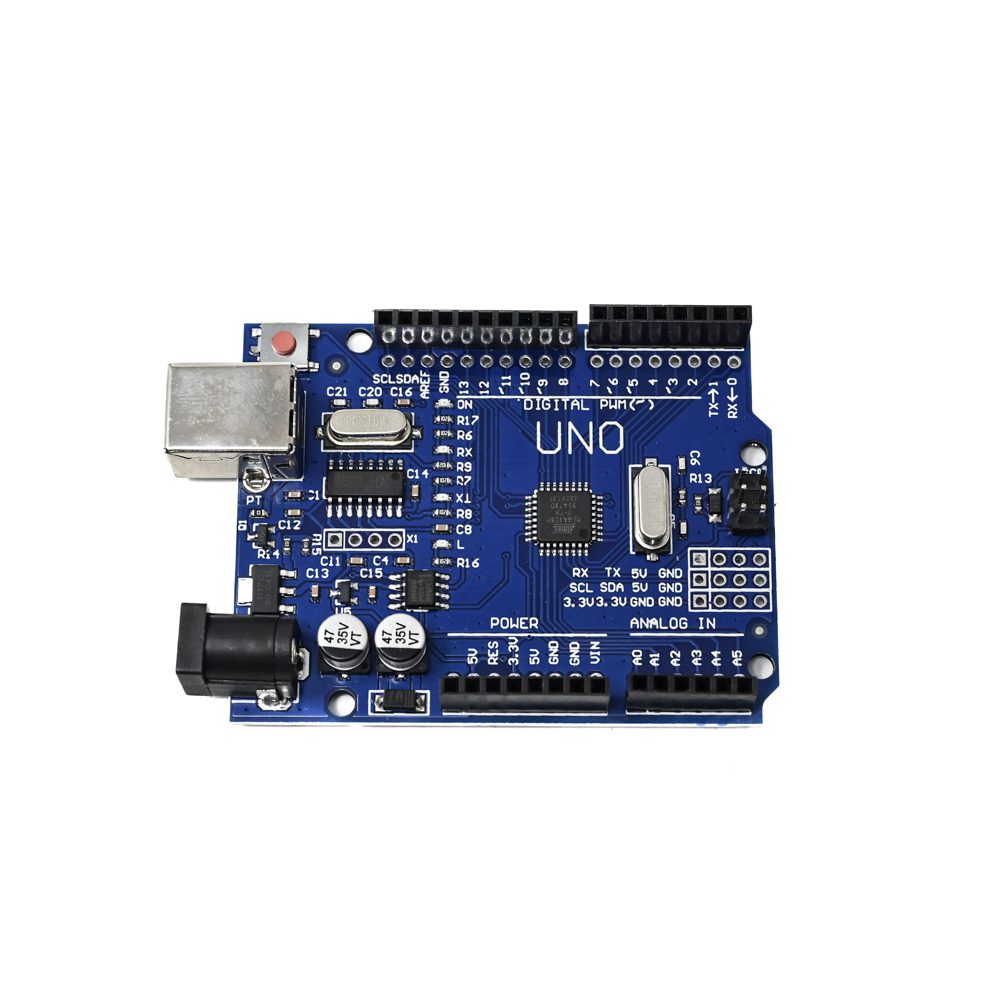

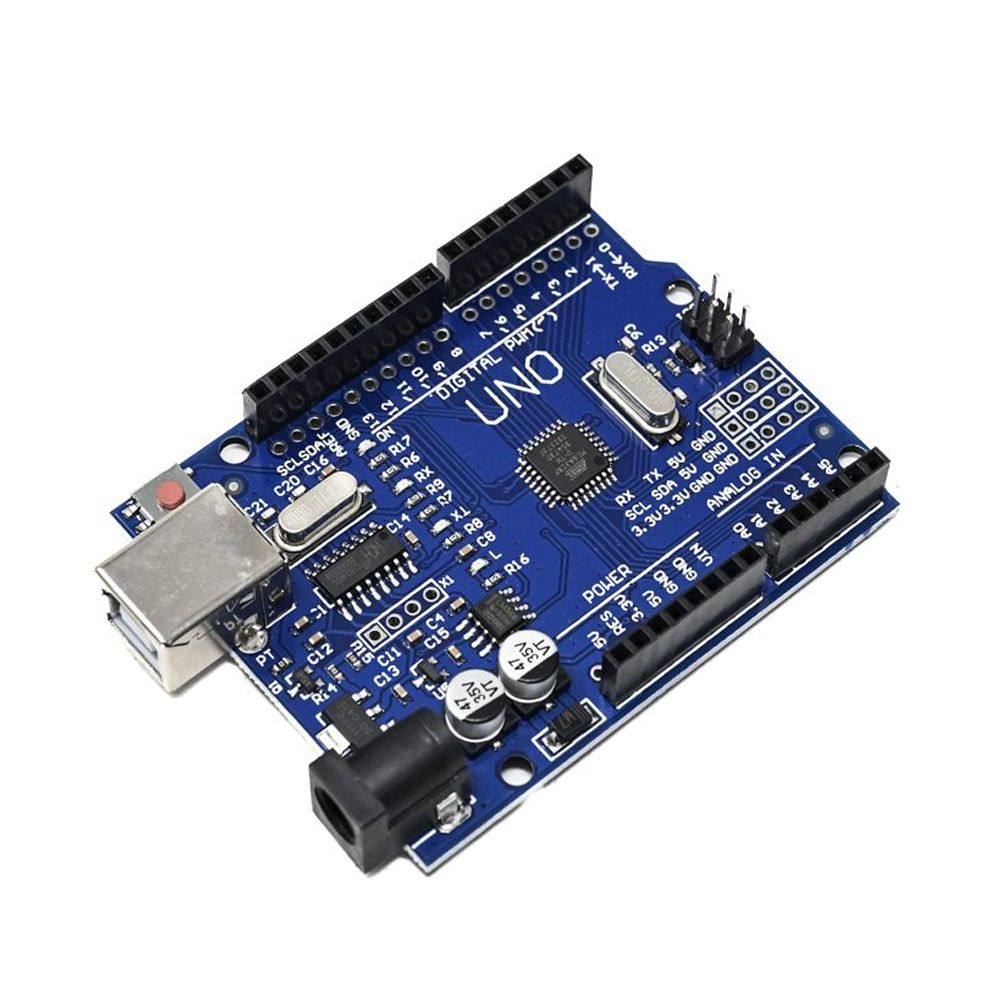

Uno R3 CH340G ATmega328p Development Board Compatible with Arduino
- Microcontroller ATmega328 (SMD) – Interface CH340G
- Operating Voltage: 5V
- Input Voltage (recommended): 7-12V
- Input Voltage (limits): 5-20V
- Digital I / O Pins 14 (of which 6 provide PWM output)
- Analog Input Pins: 6
- While this is a clone board, upgrade to the Official Arduino UNO R4 EK Minima — now ₹100 OFF! Use Coupon code UNO100 at checkout.
SKU: Not Found
Brand: Generic
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The Uno R3 CH340G ATmega328p Development Board is the low-cost version of the popular Uno R3 Arduino. It is assembled with the CH340 USB to Serial converter chip, instead of using an Atmega16U2 chip.
We have used plenty of these low-cost Arduino boards with CH340 chips, and have found them to work perfectly. The only time the CH340 chip is used is during programming and when using the serial output of the USB port. During normal operation, this board is identical to the more expensive version without CH340 chip.
Why Consider the Official Boards?
| Feature | Official Arduino Boards | Clone Boards |
| Warranty | ✅ 1-Year Official Warranty | ❌ None / Limited |
| Build Quality | ✅ High-Grade Components | ⚠️ Varies |
| Software Support | ✅ 100% Compatible | ⚠️ May Face Issues |
| Firmware Updates | ✅ Regular Official Releases | ❌ Rare / None |
| Durability | ✅ Long Lifespan & Support | ⚠️ Shorter Life |
How to use:
1. Download the IDE Arduino Link: Click Here
2. Download the USB chip driver Link: Click Here
3. Plug in UNO development board, the driver will be installed automatically
4. Select the UNO from the die
5. Select the COM port
6. The best choice first, Arduino comes with routine procedures, burn into it.

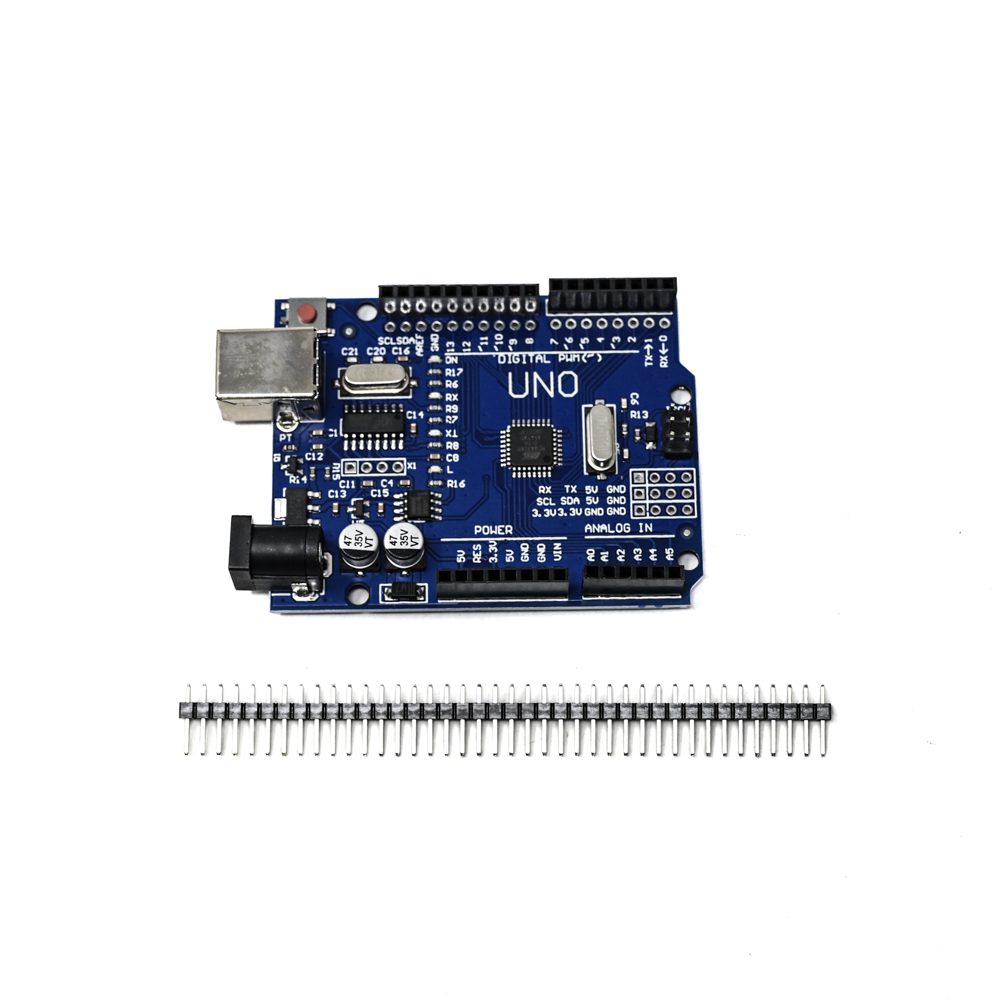

Package Includes :
1 x Uno R3 CH340G ATmega328p Development Board Compatible with Arduino
1 x set of male Jumper Header.
Technical Specifications
| Analog I/O Pins | 6 |
|---|---|
| Board Type | Uno |
| Chip Type | ATmega328P |
| Clock Speed | 16 MHz |
| DC Current for 3.3V Pin(mA) | 50 |
| DC Current per I/O Pin (mA) | 40 |
| Digital I/O Pins | 14 (of which 6 provide PWM output) |
| Dimensions (L x W x H) mm | 75 x 54 x 12 |
| EEPROM | 1 KB (ATmega328) |
| Flash Memory | 32 KB |
| Input Voltage (limit) | 6-20V |
| Input Voltage (V) | 7-12V |
| Item Type | Development Board |
| Microcontroller | ATmega328 (SMD) – Interface CH340G |
| On Board LED | On/Off, L (PIN 13), TX, RX |
| Operating Temperature (°C) | -40 to 90 |
| Operating Voltage (VDC) | 5 |
| Power Supply Option | DC Jack or USB |
| PWM Digital I/O Pins | 6 |
| Shipping Dimensions | 10 × 6 × 4 cm |
| Shipping Weight | 0.05 kg |
| SRAM | 2 |
| Weight (g) | 26 |
