Arduino Uno R3 with Cable
- Not Found
SKU: Not Found
Brand: Unknown Brand
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description

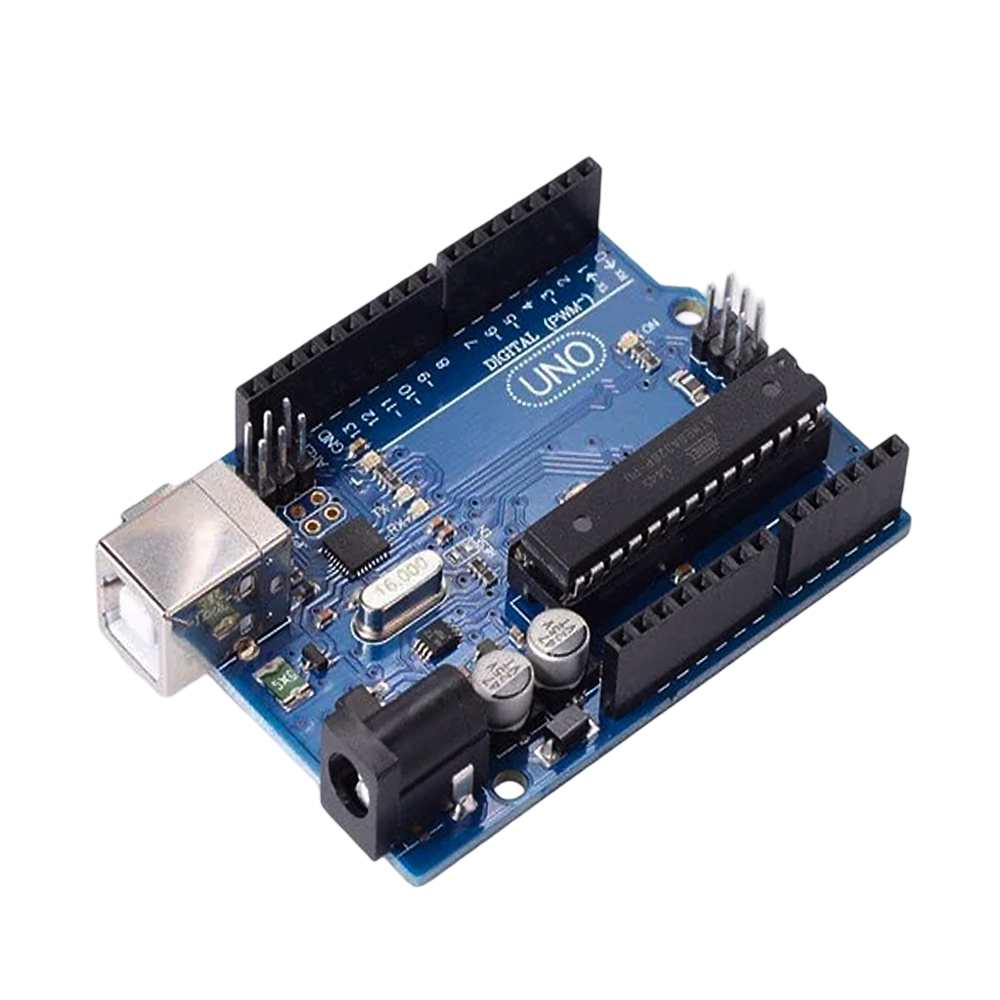

The Arduino Uno R3 with Cable is a microcontroller board based on the ATmega328 (datasheet). It has 14 digital input/output pins (of which 6 can be used as PWM outputs); 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button.
It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.
Note: If you are getting the error while uploading the code in the Arduino Uno or not detecting the port need to upload the bootloader.
We recommend purchasing Original Arduino boards for the best quality and support. Buy authentic boards here https://robu.in/brand/arduino/
Package Includes :
1 x Arduino Uno R3

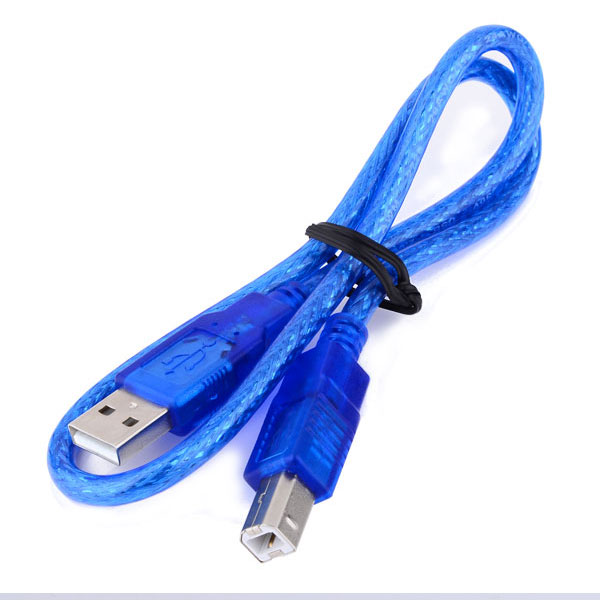

1 x USB Cable
Useful Links:
Getting Started with Arduino and Genuino products
Technical Specifications
| Analog I/O Pins | 6 |
|---|---|
| Board Type | Uno |
| Clock Speed | 16 MHz |
| DC Current for 3.3V Pin(mA) | 50 |
| DC Current per I/O Pin (mA) | 40 |
| Digital I/O Pins | 14 (of which 6 provide PWM output) |
| Dimensions (L x W x H) mm | 75 x 54 x 12 |
| EEPROM | 1 KB (ATmega328) |
| Flash Memory | 32 KB |
| Input Voltage (V) | 6-20V |
| Item Type | Development Board |
| Operating Voltage (VDC) | 5 |
| PWM Digital I/O Pins | 6 |
| Shipping Dimensions | 9 × 6 × 4 cm |
| Shipping Weight | 0.08 kg |
| SRAM | 2 |
| Weight (g) | 28 (without cable), 54 (with cable) |
| With Cable (Y/N) | Y |
