Time Delay Relay Modules

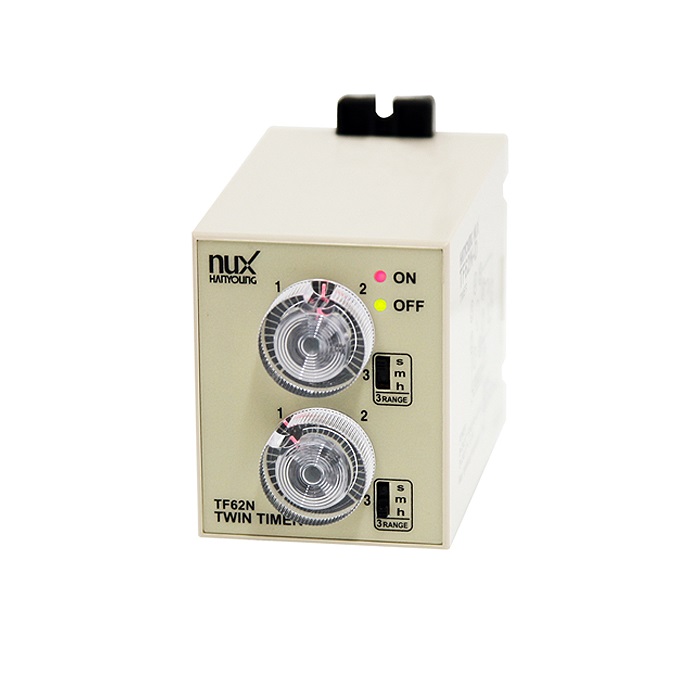

HANYOUNG NUX TF62NE-30D Analog Twin / Dual Timer
- Timer type: Analog twin timer
- Power supply voltage: 24 – 240 V a.c. 50/60 Hz or 24 – 240 V d.c. dual usage
- Allowable voltage: ±10 % of Power supply voltage
- Power consumption: Max. 4.1 VA (24 – 240 V a.c. 50/60 Hz) • Max. 2 W (24 – 240 V d.c.)
- Operating time range: 0.1 sec ~ 60 hour
SKU: Not Found
Brand: HANYOUNG NUX
Out of stock
₹1661.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The TF62NE-30D Analog Twin / Dual Timer has two timers which can be used separately or linked together (to give sequencing). The second timer can be used to give random timings instead of fixed timings if required. Each timer circuit switches relay contacts whilst timing.
Note: For more technical details go through Datasheet in the attachment section
Features:
- Simple setup method
- Free power (24-240 V AC/DC (common))
- Repeated operation of 0.3% of the maximum range
- Selection of time unit (3 kinds) due to the front side of the deep switch
- Function: TWIN TIMER
- Allowable voltage variation: ± 10 % of Power supply voltage
- Life span of relay Mechanical: More than 10 million times / Electrical: More than 100,000 times
- Noise Immunity ±2 kV (Between unit’s power terminals), square wave by noise simulator (pulse width : 1 ㎲)
Package Includes:
1 x HANYOUNG NUX TF62NE-30D Analog Twin / Dual Timer
Technical Specifications
| Contact Capacity | 250 V AC 3 A |
|---|---|
| Dielectric Strength | 2000 V a.c 50 / 60 Hz ( 1 minute |
| Insulation Resistance | More than 100 MΩ |
| Model | Timer |
| Power Consumption | Less than 1.5 W (at 24 V d.c), Less than 4.5 VA (at 240 V a.c 60 Hz) |
| Power Supply | 24 – 240 V |
| Return time | Less than 100 ms |
| Shipping Dimensions | 11 × 9 × 7 cm |
| Shipping Weight | 0.146 kg |
| Storage Temperature (°C) | – 25 ~ 65 °C |
| Vibration | 10 – 55 ㎐ |
