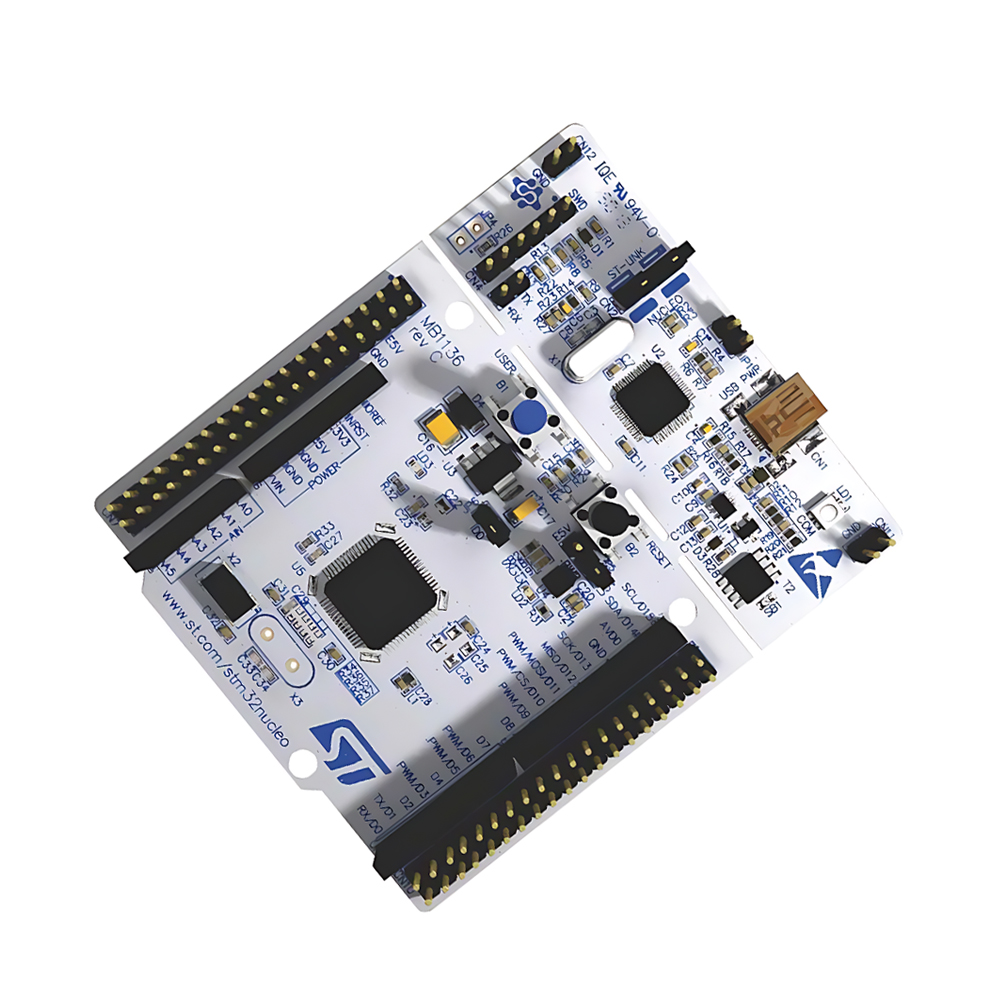

STMICROELECTRONICS NUCLEO-F070RB Development Board, STM32 Nucleo-64 MCU, Arduino Uno V3 Connectivity, Flexible Power Supply
- Model: STM32 Nucleo-64 MCU
- STM32 microcontroller with LQFP64 package
- USB re-enumeration capability – Three different interfaces
- Voltage: 3.3V, 5V, 7 – 12V
- Applications: Embedded Design & Development
SKU: Not Found
Brand: STMicroelectronics
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The STM32 Nucleo board provides an affordable and flexible way for users to try out new concepts and build prototypes with the STM32 microcontroller, choosing from the various combinations of performance, power consumption, and features. The Arduino ™Uno V3 connectivity support and the STMICROELECTRONICS NUCLEO headers allow to expansion easily the functionality of the STM32 Nucleo open development platform.
with a wide choice of specialized shields. The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1
debugger and programmer. The STM32 Nucleo board comes with the STM32 comprehensive software HAL library together with various
packaged software examples, as well as direct access to the ARM
Note: For more info refer to the datasheet in attachment section.
Features:
- Small size, easy to use & high performance
- Advanced Security Features
- Low voltage, low power consumption
- Enhanced User Interfaces
- Best for DIY projects
Package Includes:
1 x STMICROELECTRONICS NUCLEO-F070RB Development Board STM32 Nucleo-64 MCU, Arduino Uno V3 Connectivity, Flexible Power Supply
Technical Specifications
| Application | Embedded Design & Development |
|---|---|
| Board Type | Uno |
| Chip Type | STM32 |
| Debugger | Selection-mode switch to use the kit as a standalone ST-LINK/V2-1 |
| Extension resources | Arduino Uno V3 connectivity ST morpho extension pin headers for full access to all STM32 I/Os |
| Item Type | Development Board |
| Model Name | NUCLEO-F070RB |
| Shipping Dimensions | 12 × 10 × 5 cm |
| Shipping Weight | 0.07 kg |
