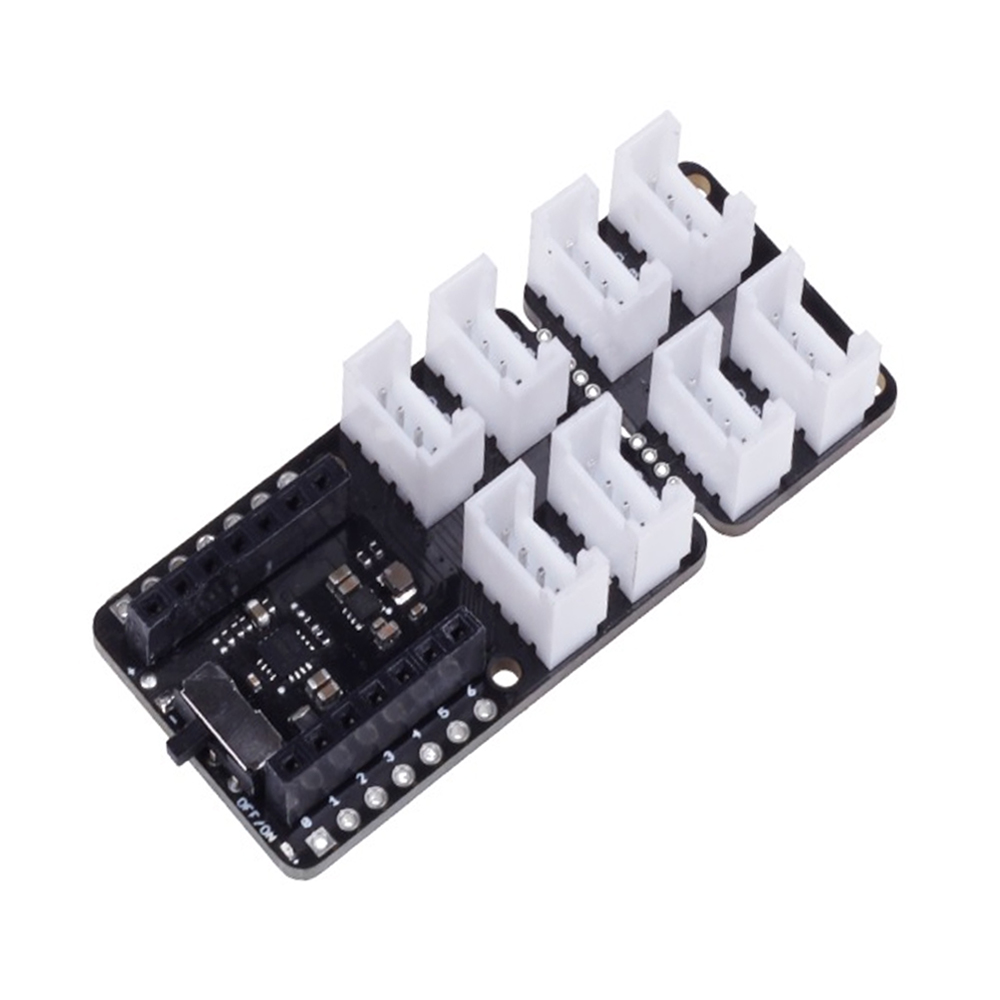

Grove Shield for Seeeduino XIAO is a plug-and-play Grove extension board for Seeeduino XIAO. With the on-board battery management chip and battery bonding pad, you could easily power your Seeeduino XIAO with lithium battery and recharge it. 8 Grove connectors onboard include two Grove IIC and one UART. It acts as a bridge for Seeeduino XIAO and Seeed’s Grove system. Flash SPI bonding pad allows you add Flash to Seeeduino XIAO to expand its memory space, providing Seeeduino XIAO with more possibilities.

Application:

1. Wearable devices
2. Rapid prototyping
3. Grove modules testing
4. Projects require small size

Note:

A pair of non-soldered 7-pin headers are accompanied in the product of Seeeduino XIAO. You could solder them before connecting Seeeduino XIAO with this Shield by plugging the soldered pin headers into the female headers on the Shield.

Features:

1. On-board Lithium Battery Charging and Management Function
2. Grove connectors (Grove IIC*2, Grove UART*1), all 14 GPIO led out
3. Compact and Breakable Design
4. SPI-Flash Bonding Pad Reserved
5. On-board Power Switch and Charging Status Indicator Light

Package Includes:

1 x Grove Shield for Seeeduino XIAO

2 x 1*7pins male header
