RFID Tags and Cards

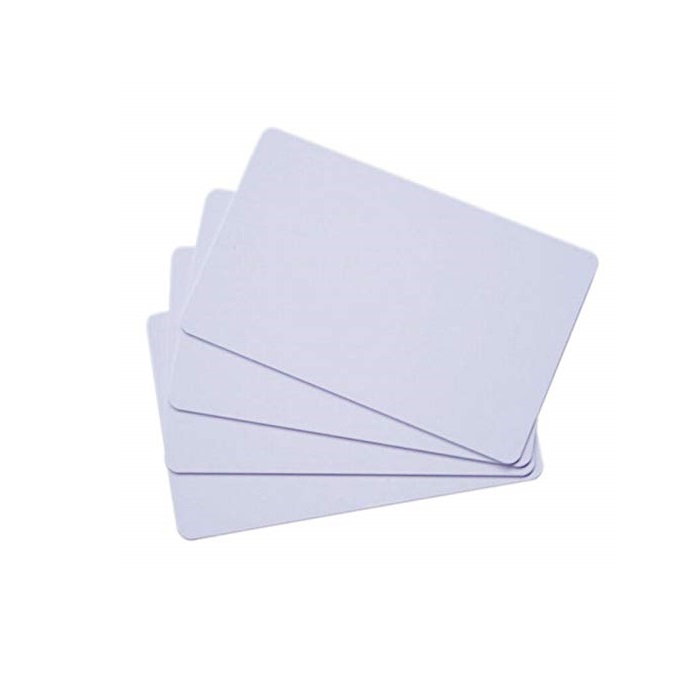

13.56MHz RFID Cards Pack of 5
- Contactless transmission of data and supply energy (no battery needed)
- Operating distance: Up to 100mm (depending on antenna geometry)
- Operating frequency: 13.56MHz
- Data transfer: 106 kbit/s
- Data integrity: 16 Bit CRC, parity, bit coding bit counting
- Anticollision
- Typical ticketing transaction: <100 ms ( including backup management)
SKU: Not Found
Brand: Generic
Out of stock
₹49.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
This is RFID 13.56MHz Card used for Contactless transmission of data and supplies energy with no battery needed. Its Operating distance is Up to 1 Meter depending on antenna geometry. Operating frequency is 13.56MHz and Data transfer speed is 106 kbit/s.
It is featured with Data integrity of 16 Bit CRC, parity, bit coding bit counting which allows Anti collision. These cards are typically used in ticketing transaction: <100 ms including backup management.
Applications :
- Public transportation
- Access control
- Event Ticketing
- Gaming & identity
Features:
- Contactless transmission of data and supply energy (no battery needed)
- Anticollision
- EEPROM
- 1Kbit, organized in 16 sectors, each district two passwords
- User definable access conditions for each memory block
- Data retention of 10 years.
- Write endurance 100 000 cycles
- Security
- Individual key set per sector (per application) to support multi-application with key hierarchy
- A unique serial number for each device
- Transport key protects access to EEPROM on-chip delivery
Package includes:
5 x RFID 13.56MHz card-5pcs
Technical Specifications
| Additional Specs. | Data storage time: Minimum 10 years |
|---|---|
| Data Transfer Rate | 106 kbit/s |
| Dimensions (L x W x H) mm | 86 x 54mm |
| Material | PVC |
| Model | RFID Card |
| Operating Frequency (MHz) | 13.56 |
| Operating Temperature (°C) | -20 to 60 |
| Reading Distance (m) | 10 |
| Shipping Dimensions | 5 × 3 × 1 cm |
| Shipping Weight | 0.02 kg |
| Thickness (mm) | 0.88 |
