PIR / IR and Optical Sensor

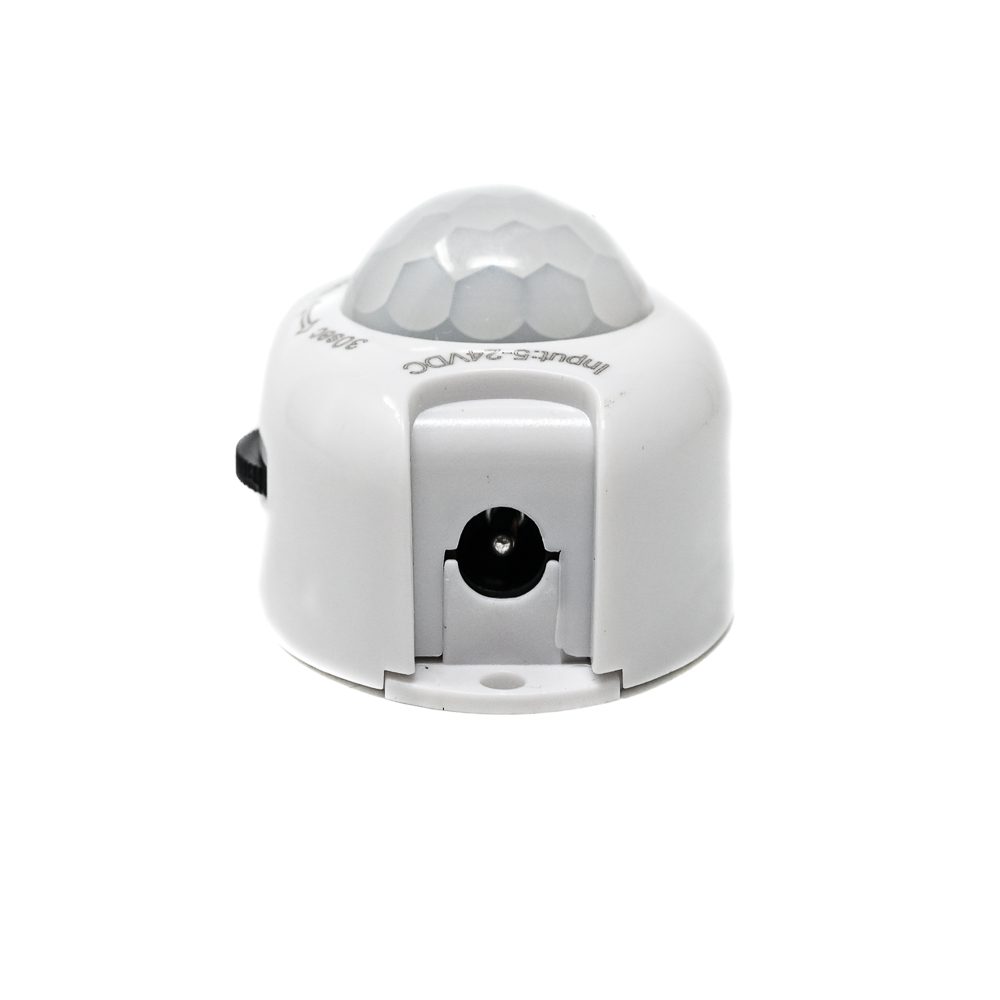

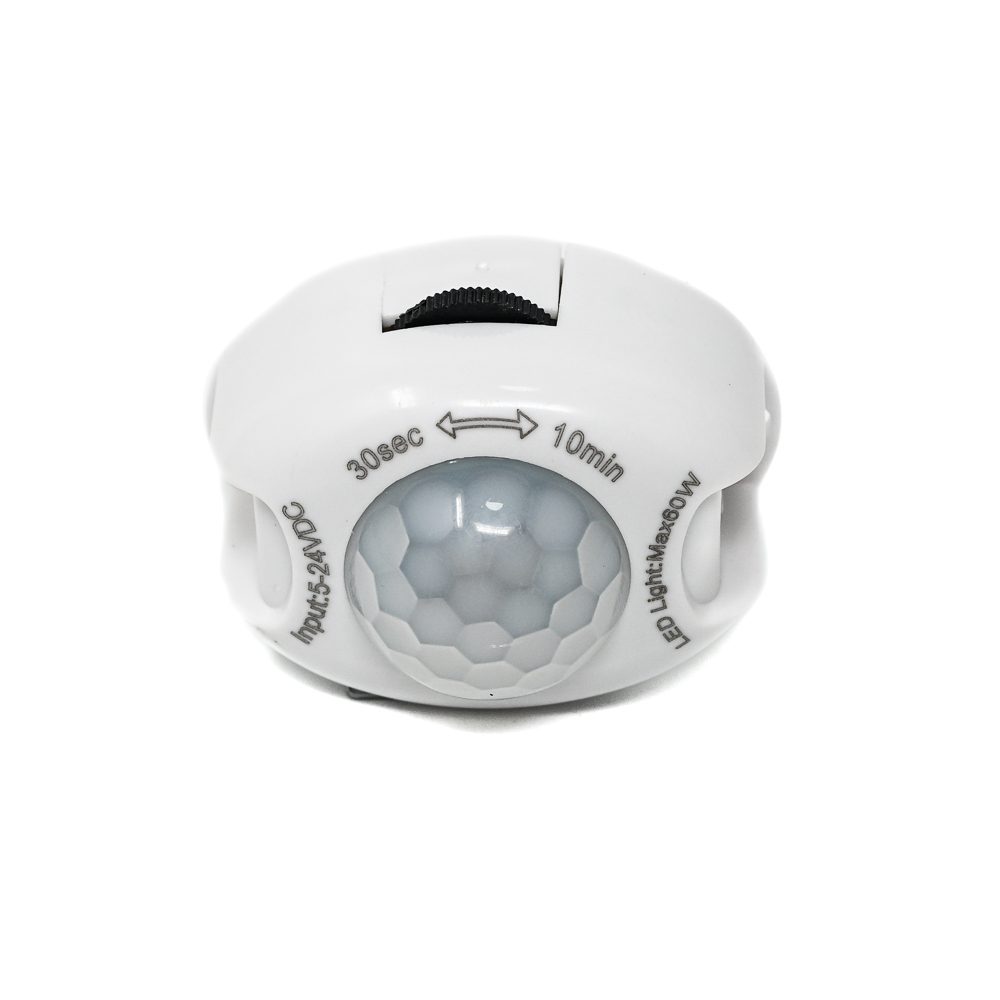

PIR9 Light Band Sensor DC5-24V
- Fresnel Lens: 120° detection.
- Motion Detection: Infrared-based.
- Quick Install: Screw socket interface.
- Time Adjust: 1-10 minute delay.
SKU: Not Found
Brand: Generic
Out of stock
₹251.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The PIR9 Light Band Sensor operates on a DC5-24V power supply, offering reliable motion detection for various lighting applications. This sensor efficiently detects infrared radiation from moving objects, such as people, and automatically controls the lighting system. It is ideal for energy-saving solutions in both residential and commercial settings, ensuring lights are only on when needed.
The PIR9 sensor provides seamless integration with low-voltage systems, offering a convenient, efficient, and environmentally friendly way to manage lighting while reducing energy consumption.
Features:
- Infrared sensor detects movement and ambient light.
- Automatically turns lights on/off based on motion and light levels.
- Manual setting for light threshold and duration.
- Saves energy by switching off when no motion is detected.
- Suitable for bathrooms, kitchens, corridors, garages, and more.
- Can function as a home security light alarm.
Package Includes:
1 x PIR9 Light Band Sensor DC5-24V
Technical Specifications
| Detection Angle | 120° |
|---|---|
| Detection Distance | 8m |
| Height (mm) | 30 |
| Humidity Range | <93% RH |
| Item Type | Light Band Sensor |
| Length (mm) | 48 |
| Material | Flame-retardant ABS |
| Model | Light Band Sensor |
| Model No | PIR9 |
| Operating Frequency (Hz) | 50/60Hz |
| Power Consumption | <0.5W |
| Rated Voltage (V) | DC5-24V |
| Shipping Dimensions | 4 × 4 × 3 cm |
| Shipping Weight | 0.014 kg |
| Weight (g) | 41 |
| Width (mm) | 37 |
