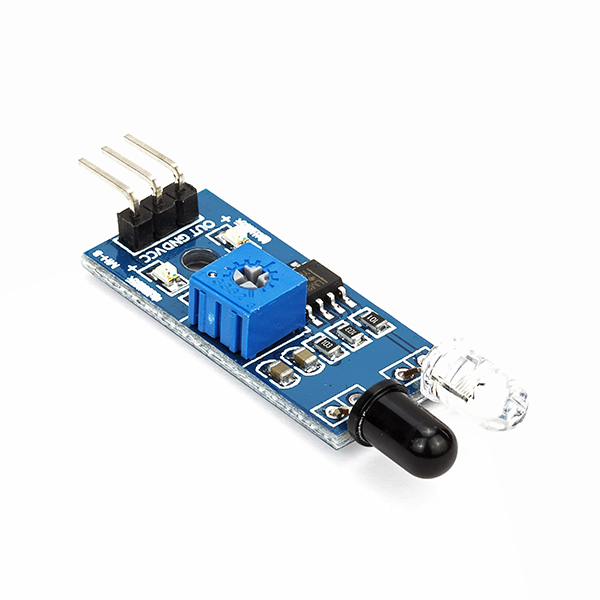

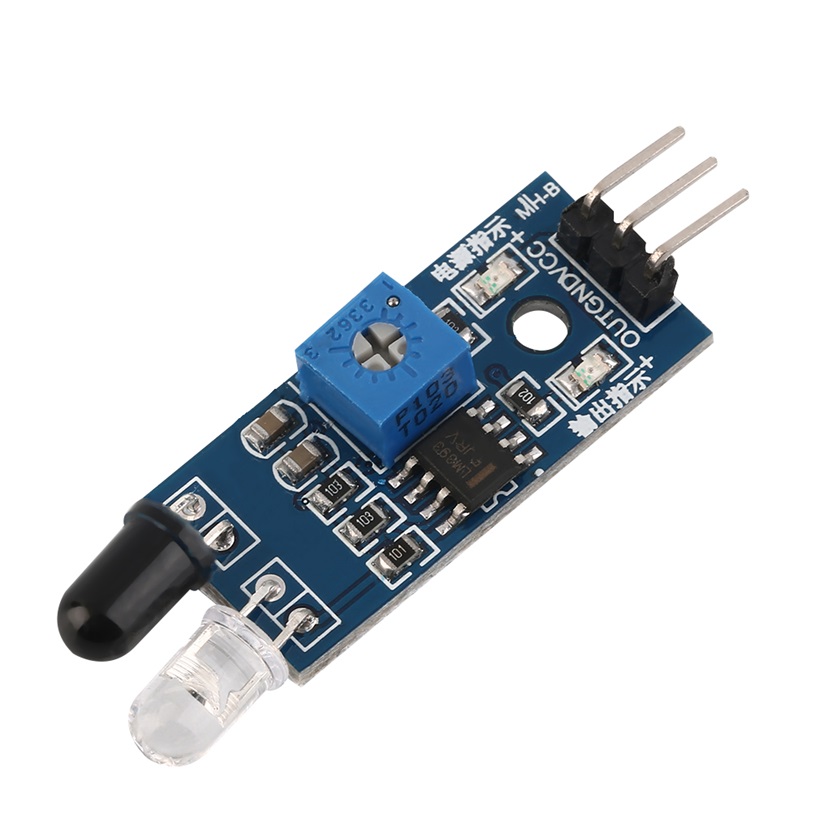

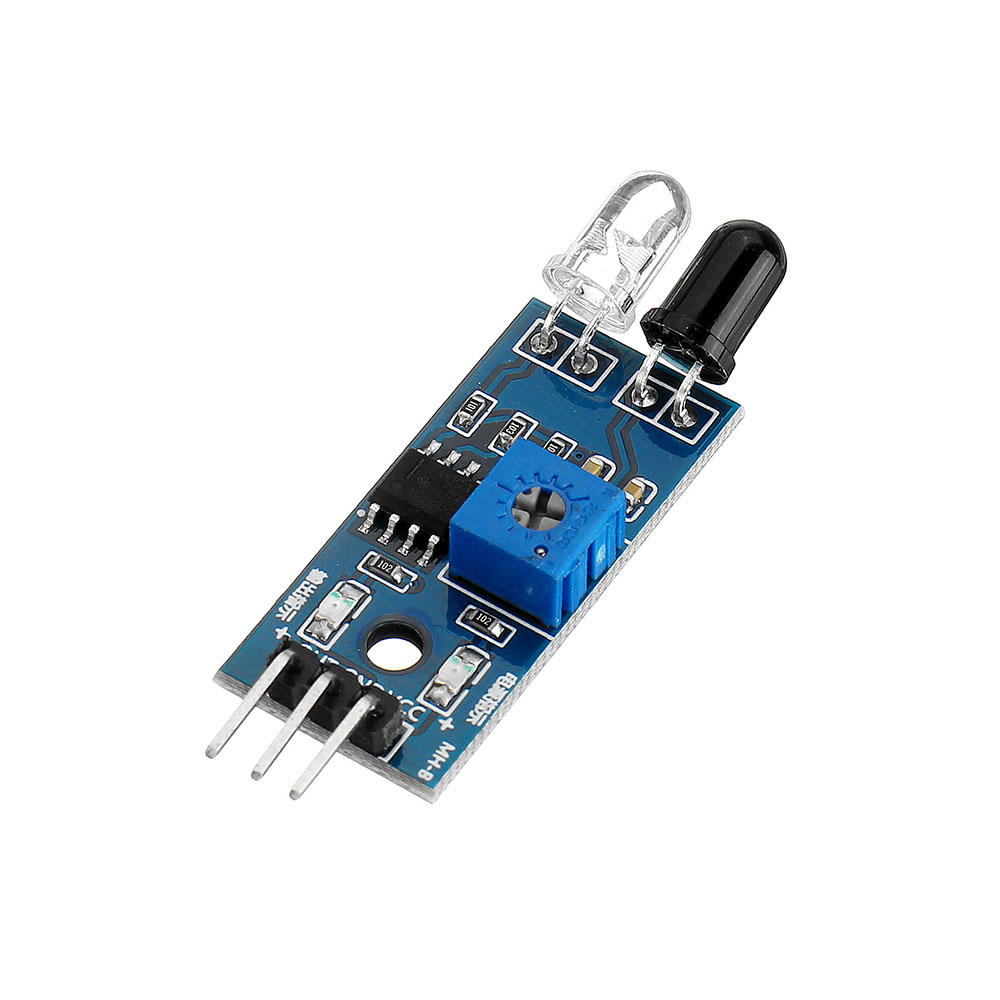

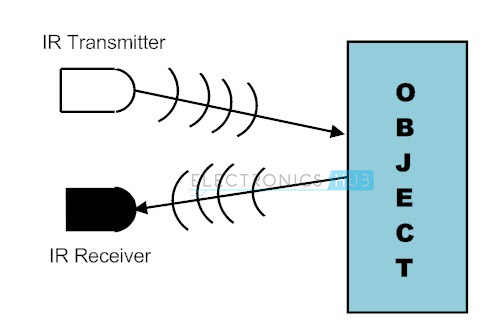

Infrared Obstacle Avoidance IR Sensor Module (Active Low) has a pair of infrared transmitting and receiving tubes. When the transmitted light waves are reflected back, the reflected IR waves will be received by the receiver tube. The onboard comparator circuitry does the processing and the green indicator LED comes to life. To know sensor working click here

The module features a 3 wire interface with Vcc, GND, and an OUTPUT pin on its tail. It works fine with 3.3 to 5V levels. Upon hindrance/reflectance, the output pin gives out a digital signal (a low-level signal).

Circuit Diagram of IR Sensor With Arduino

To know more about IR Sensors, Click here

Features:

1. Easy to assemble and use
2. Onboard detection indication
3. The effective distance range of 2cm to 80cm
4. A preset knob to fine-tune the distance range
5. If there is an obstacle, the indicator lights on the circuit board.

Package Includes :

1 x Infrared Obstacle Avoidance IR Sensor Module (Active Low)
