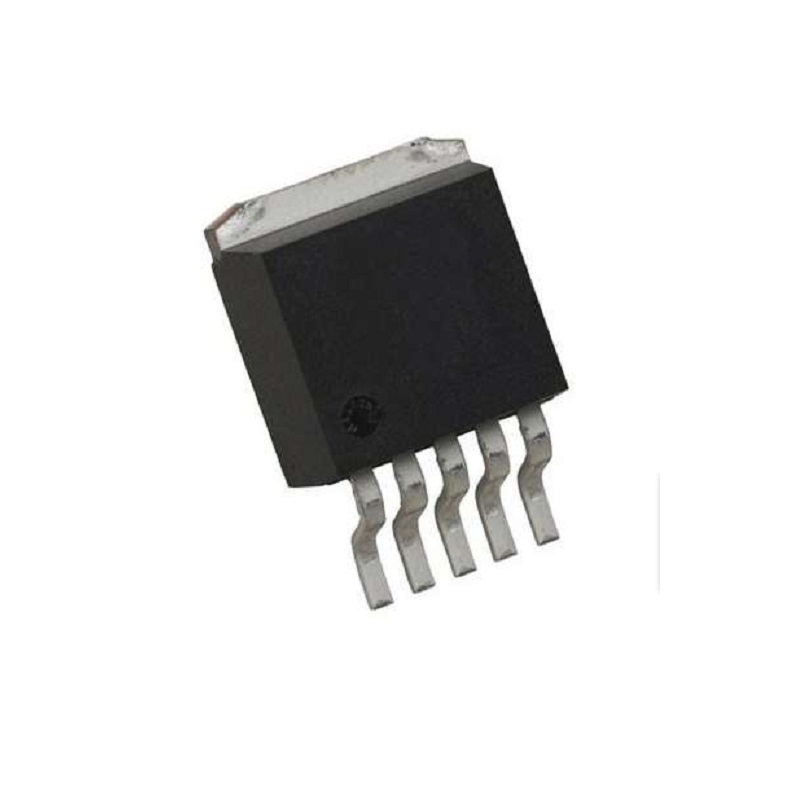

MIC29302AWU-MICROCHIP-LDO Voltage Regulator, Adjustable, 3V to 16V input, 450 mV drop., 1.24V to 15V/3A out, TO-263-5.

Note: Images for reference only.

Specifications:

Output Type: Adjustable
Input Voltage Max: 16V
Output Voltage – Nom: –
Output Voltage Max: 15V
Output Current Max: 3A
Dropout Voltage – Typ @ Current: 450mV
IC Mounting: Surface Mount
No. of Pins: 5Pins
Operating Temperature Max: 125°C
MSL: MSL 3 – 168 hours
Input Voltage Min: 3V
No. of Outputs: 1Outputs
Output Voltage Min: 1.24V
Polarity: Positive Output
Max Output Current: 3A
Dropout Voltage Typ @ Current: 450mV
IC Case / Package: TO-263 (D2PAK)
Operating Temperature Min: -40°C
Product Range: –
SVHC: No SVHC (07-Nov-2024)

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x MIC29302AWU-MICROCHIP-LDO Voltage Regulator, Adjustable, 3V to 16V input, 450 mV drop., 1.24V to 15V/3A out, TO-263-5
