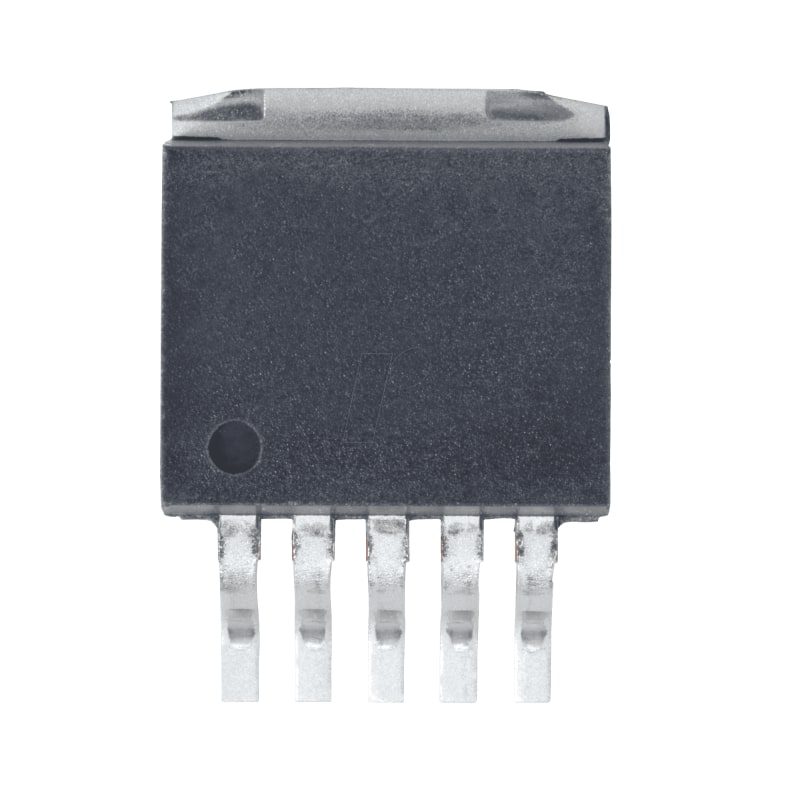

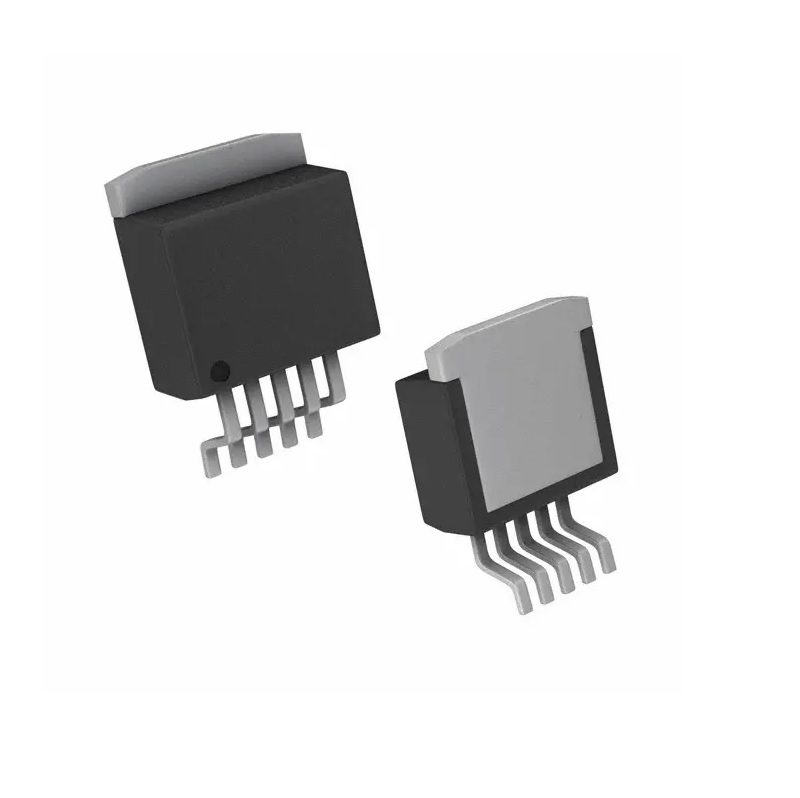

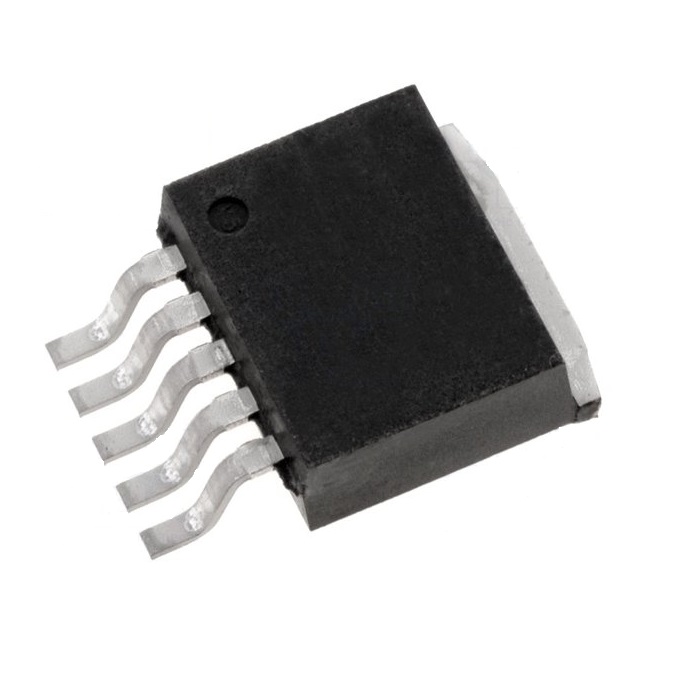

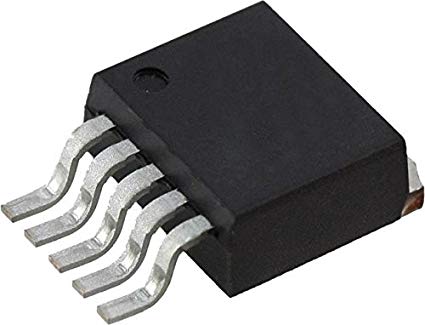

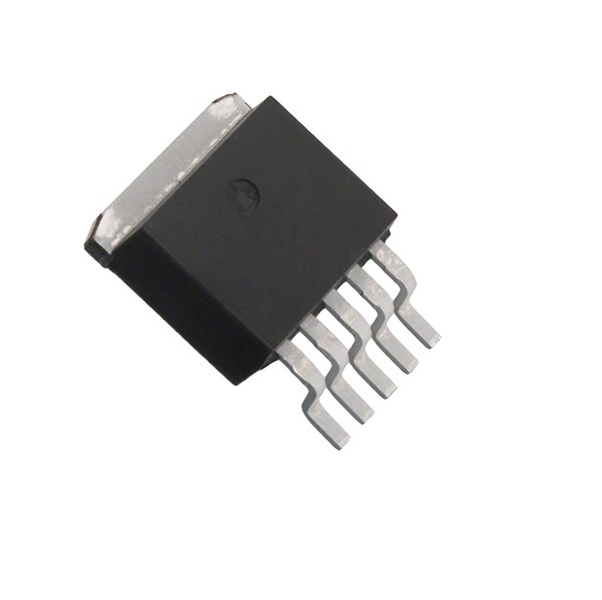

LM2576HVS-5 (TO-263-5) Buck (Step Down) Switching Voltage Regulator
- Requires only 4 external components
- 52kHz Fixed frequency internal oscillator
- TTL shutdown capability, low power standby mode
- High efficiency
- Uses readily available standard inductors
- Thermal shutdown and current limit protection
- P+ Product enhancement tested
- Applications: Power Management.
SKU: Not Found
Brand: Generic
Out of stock
₹60.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The LM2576HVS-5 (TO-263-5) Buck (Step Down) Switching Voltage Regulator Ic provides all the active functions for a step-down (buck) switching regulator, capable of driving 3A load with excellent line and load regulation. This regulator is available in fixed output voltages of 12V version and requiring a minimum number of external components, this regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator.
The LM2576 series offers a high-efficiency replacement for popular three-terminal linear regulators. It substantially reduces the size of the heat sink and in some cases no heat sink is required. A standard series of inductors optimized for use with the regulator are available from several different manufacturers. This feature greatly simplifies the design of switch-mode power supplies.
Features:
- Requires only 4 external components
- 52kHz Fixed frequency internal oscillator
- TTL shutdown capability, low power standby mode
- High efficiency
- Uses readily available standard inductors
- Thermal shutdown and current limit protection
- P+ Product enhancement tested
- Applications: Power Management.
Package Includes:
1 x LM2576HVS-5 (TO-263-5) Switching Voltage Regulator
Technical Specifications
| Dimensions (L x W x H) mm | 9.89 x 10.28 x 4.22 |
|---|---|
| Input Voltage (V) | 4 V to 60 V |
| Max. Output Current (A) | 3 |
| No. of Outputs | 1 |
| Operating Temperature (°C) | -40 to 125 |
| Output Type | Fixed |
| Output Voltage (V) | 5 |
| Polarity | Positive |
| Shipping Dimensions | 1 × 1 × 1 cm |
| Shipping Weight | 0.001 kg |
| Switching Frequency (KHz) | 58 |
