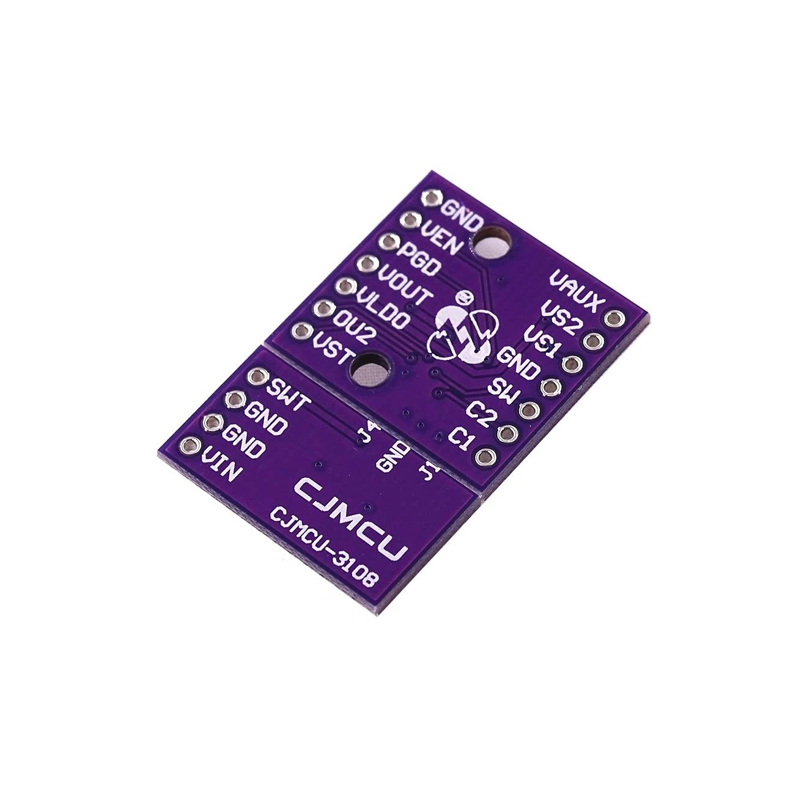

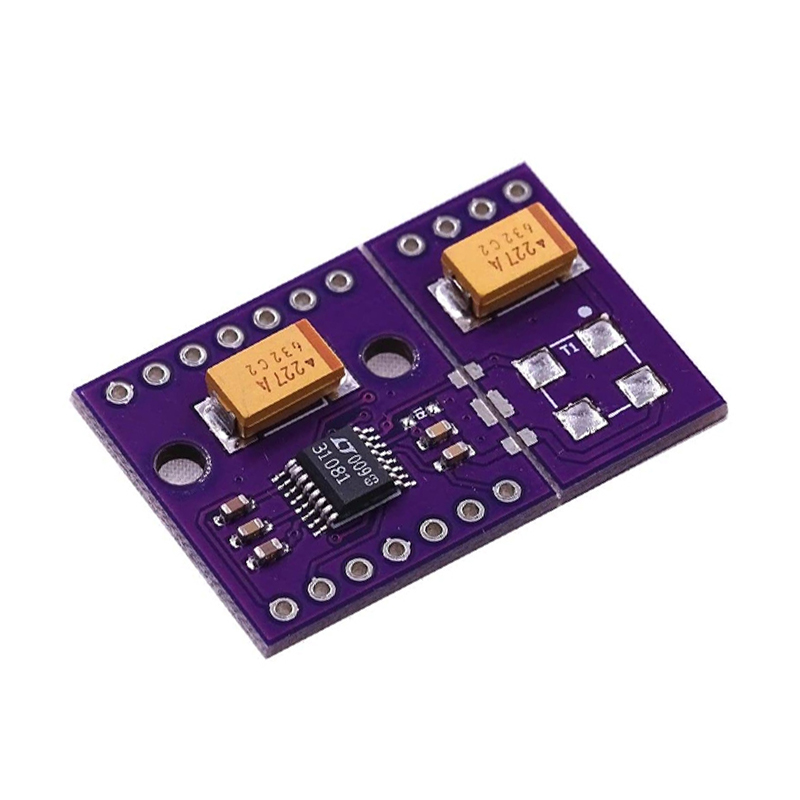

The LTC3108-1 Ultra Low Voltage Boost Converter Power Manager Development Board is designed for efficient energy harvesting from extremely low input voltages—as low as 20mV. It provides a complete power management solution for powering low-energy electronics using thermoelectric generators or other weak power sources.

With selectable output voltages (2.35V, 3.3V, 4.1V, or 5V), integrated LDO, and logic-controlled outputs, it ensures stable performance for IoT sensors, wireless nodes, and portable systems. The built-in power-good indicator and reserve energy output help maintain consistent operation, while compact step-up transformers enable efficient voltage boosting in limited spaces. Ideal for research, prototyping, and energy-harvesting applications.

Features:

1. Operates from input voltages as low as 20 mV
2. Selectable output: 2.35V / 3.3V / 4.1V / 5V
3. Integrated 2.2V LDO at 3mA
4. Logic-controlled and main regulated outputs
5. Power-good status indicator
6. Reserve energy output for backup power
7. Compatible with compact step-up transformers

Package Includes:

1 x LTC3108-1 Ultra Low Voltage Boost Converter Power Manager Development Board

1 x Header Pins
