XL6009 DC-DC Step-Up Converter Performance Ultra LM2577 Booster Circuit Board
- The performance is much higher than LM2577.
- Non-isolated Boost converter.
- It has a non-synchronous rectifier.
- Low ultra wide input voltage 3 v ~ 32 v, the best is 5 ~ 32 v working voltage range;
- Low ultra wide output voltage 5 v ~ 35 v;
SKU: Not Found
Brand: Generic
Out of stock
₹61.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description

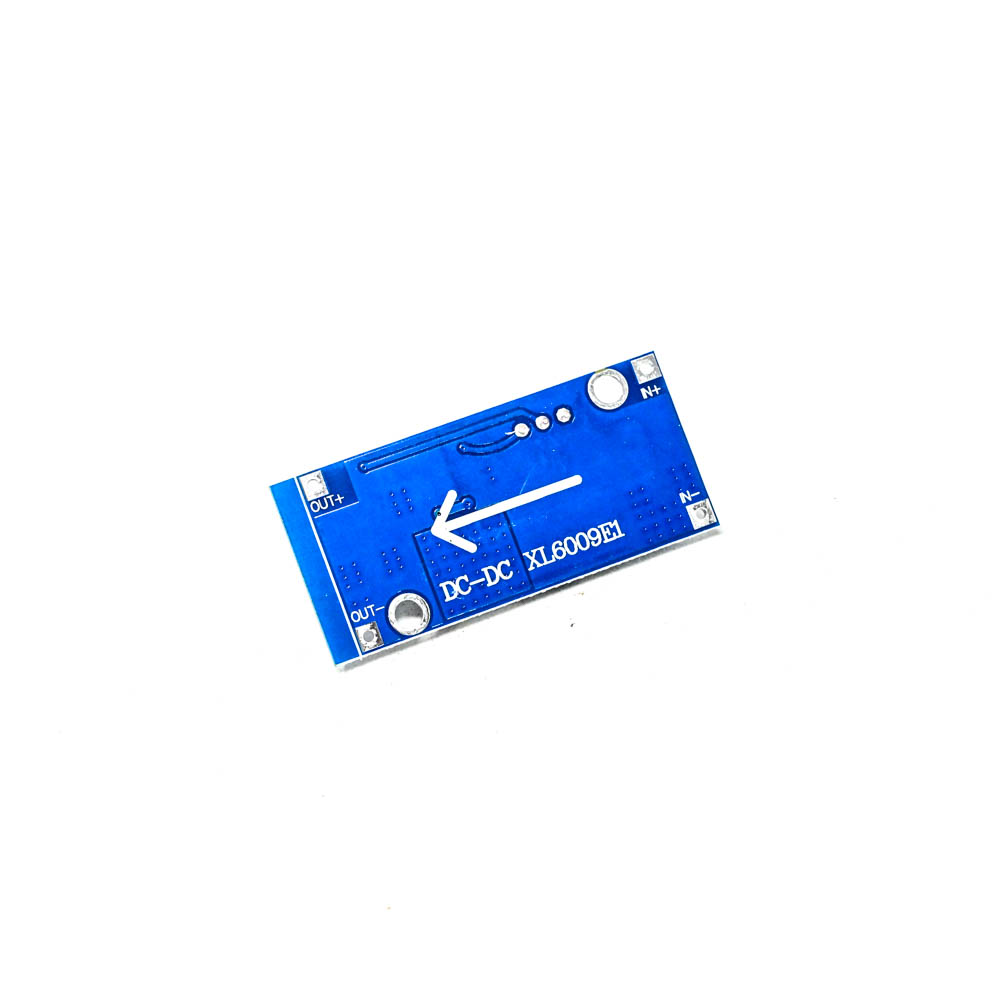

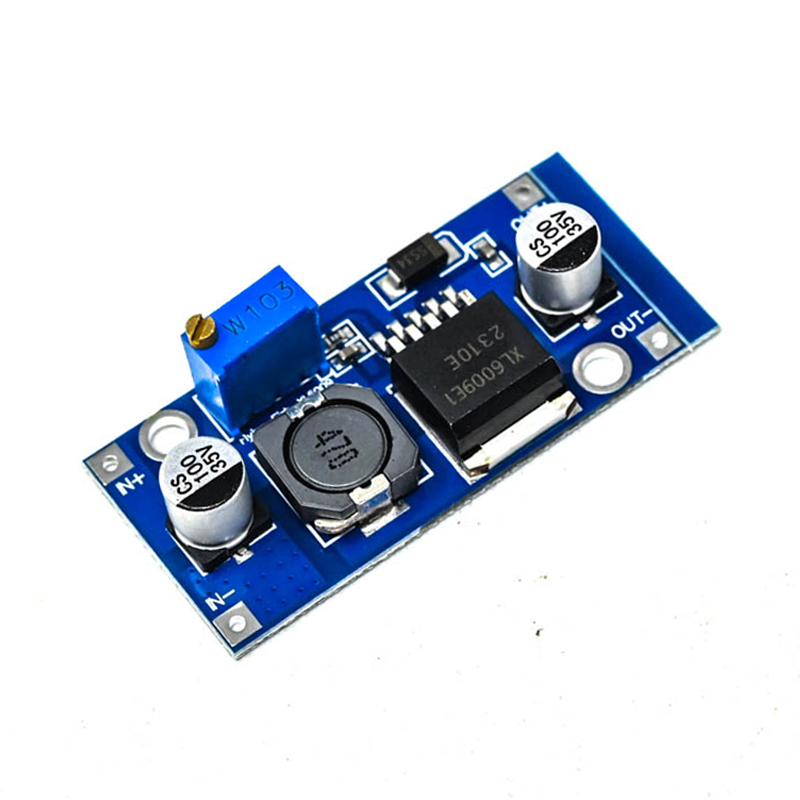

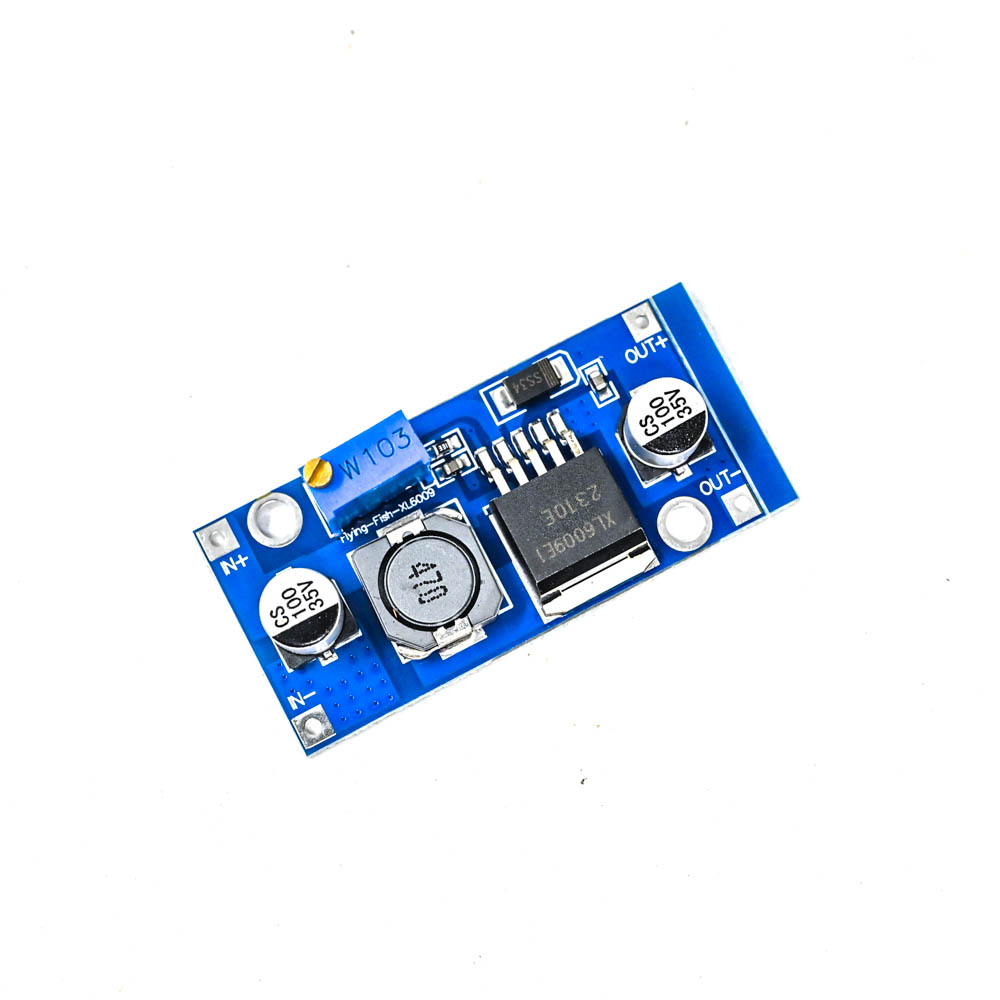

This XL6009 DC-DC Step-Up Converter Performance Ultra LM2577 Booster Circuit Board is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency.
The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance.
It equips 4A high-efficiency MOSFET switches, so as to provide a conversion efficiency of up to 94%.
High switching frequency 400KHz, you can use a small -capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller
Pins
- IN+ input positive
- IN- input negative!
- OUT+ output positive
- OUT- output negative
Features :
- The performance is much higher than LM2577.
- Non-isolated Boost converter.
- It has a non-synchronous rectifier.
- Small and Handy voltage regulator module.
Package Includes :
1 x CN6009 XL6009 DC-DC Step-up converter module.
Technical Specifications
| Efficiency | 94% |
|---|---|
| Height (mm) | 12 |
| Input Current(A) | 4 |
| Input Voltage (V) | 3 to 32 |
| Length (mm) | 43 |
| Load Regulation | ±0.5% |
| Output Ripple(mV) | 50 |
| Output Voltage (V) | 5 ~ 35 |
| Shipping Dimensions | 5 × 3 × 2 cm |
| Shipping Weight | 0.016 kg |
| Switching Frequency(KHz) | 400 |
| Voltage Regulation | ±0.5% |
| Weight (g) | 12 |
| Width (mm) | 20 |
