The LM1117MPX-5.0/NOPB is a low dropout Linear Regulator with a dropout of 5V at 800mA of load current. It has the same pin-out as Texas Instruments’ industry standard LM317. The LM1117 is available with 5V of fixed output voltage. This Linear regulator offers current limiting and thermal shutdown. Its circuit includes a Zener trimmed band gap reference to assure output voltage accuracy to within ±1% and a minimum of 10µF tantalum capacitor is required at the output to improve the transient response and stability.

Specifications:

IC Case / Package: SOT-223
No. of Pins: 3Pins
Product Range: 5V 800mA LDO Voltage Regulators
IC Mounting: Surface Mount
Operating Temperature Max: 125°C
No. of Outputs: 1Outputs
Input Voltage Max: 15V
Output Voltage Nom: 5V
Output Type: Fixed
Output Current Max: 800mA
Polarity: Positive Output

Package Includes:

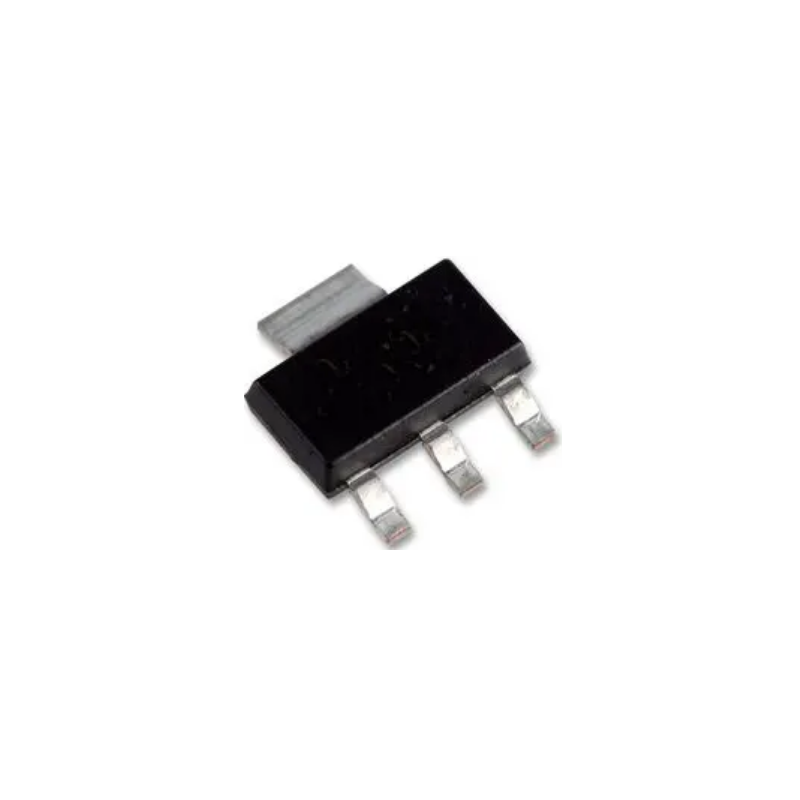

1 x LM1117MPX-5.0/NOPB-TEXAS INSTRUMENTS-LM1117MPX-5.0/NOPB-Fixed LDO Voltage Regulator, 15V in, 1.2V Dropout, 5V/800mA out, SOT-223-3
