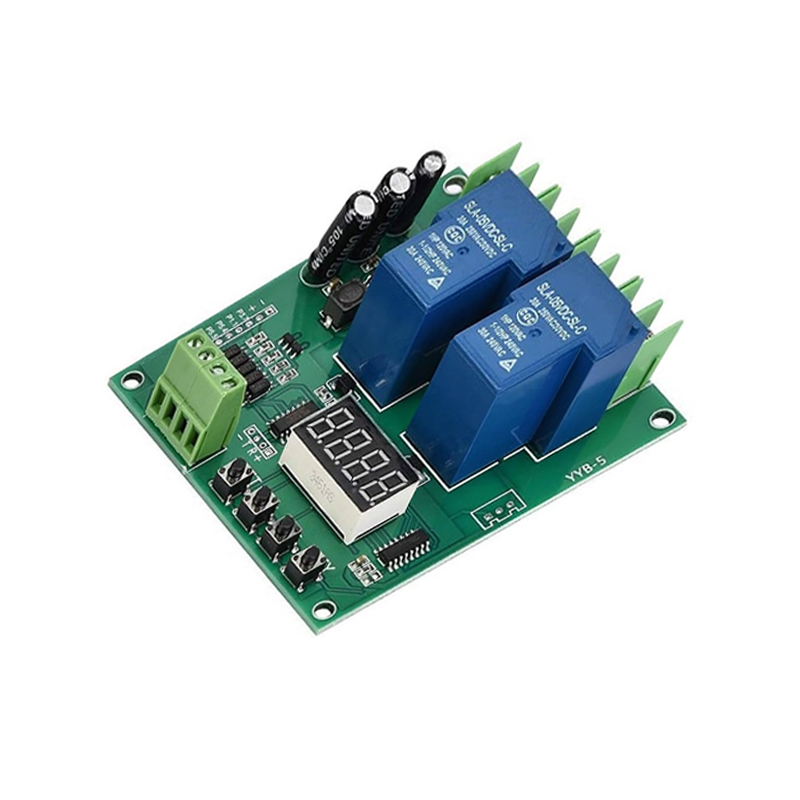

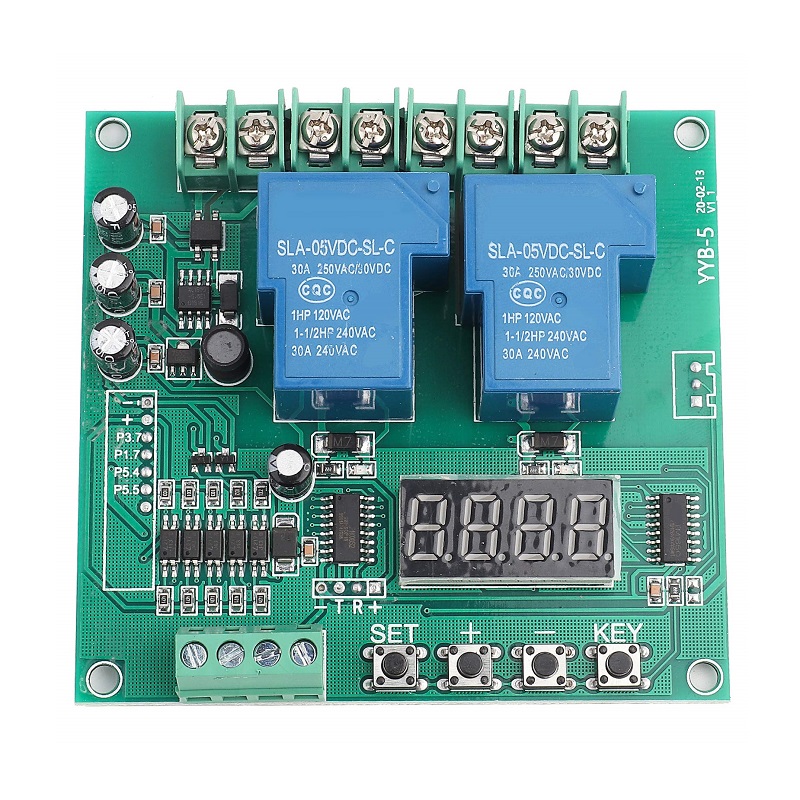

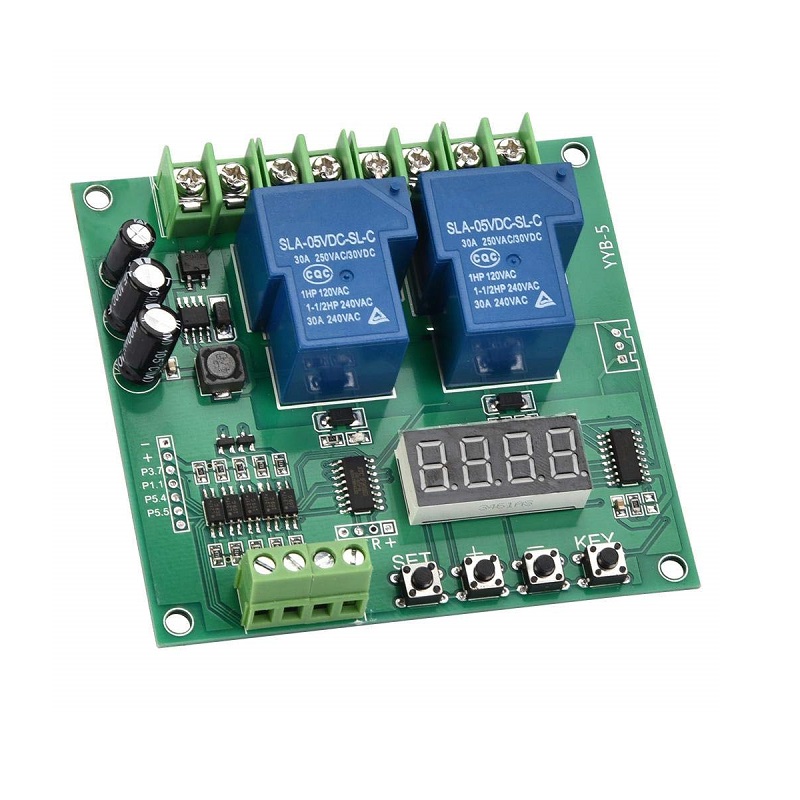

The Forward/Reverse Motor Controller Board 12V 24V Motor Two Relay Delay Timing Cycle YYB-5 Module is an electronic module designed to control the direction, speed, and timing of a DC motor.

Wiring Port Description:
1. AC/DC: Input 7V~27V
3. IN1: input 1 (negative trigger)
4. IN2: input terminal 2 (negative trigger)
2. IN3: input 3 (negative trigger)
5. NO: The relay normally opens the interface, relay pulls before the suspension, and after the connection with the COM shorted
6. COM: relay common interface
7. NC: relay normally closed interface, the relay before the connection with the COM shorted, pull after the suspension

Note: The actual product may vary in slight variation with the image shown depending upon quantity availability.

Features:

1. Brand new and high-quality
2. 6 kinds of commonly used functions to meet the needs of more applications.
3. It can control 2-way solenoid valves, pumps, motors, lights, and others running freely.
4. Output power: it can be controlled within 30A DC or AC load.
5. Time range: 0.1 seconds to 999 minutes any time adjustable
6. The motor control board can control within 30A DC or AC load.
7. Capable of handling a maximum switching current of 30 Amps, providing robust switching capabilities for various applications.
8.  Utilizes the SLA-05VDC-SL-C relay model, specifying the type of relay incorporated into the system.

Package Includes:

1 x Forward/Reverse Motor Controller Board 12V 24V Motor Two Relay Delay Timing Cycle, YYB-5 Module
