Modbus Relay Modules (RS485/RS232 Protocol)

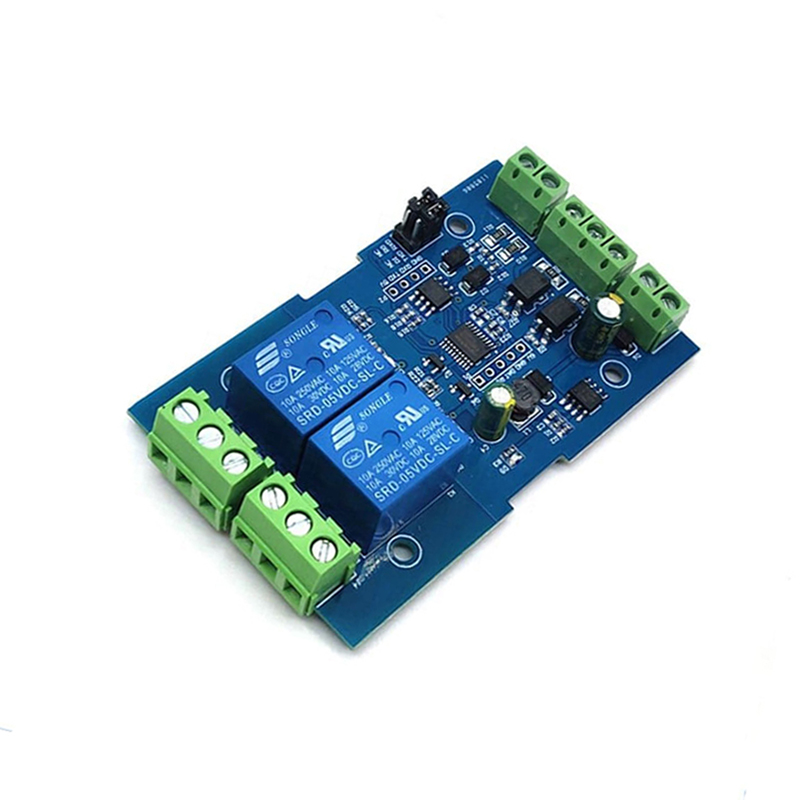

7-24V Modbus RTU 2, Channels Relay Module, RS485/TTL Anti-Reverse, Connection
- On-board Chip: MAX485
- Communication protocol: Modbus RTU protocol
- Communication interface: Support RS485 / TTL UART interface
- Operating Voltage: 5VDC
- No. of Channel: 2
SKU: Not Found
Brand: Generic
Out of stock
₹502.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
LC 2 channel Modbus relay module equipped with mature and stable 8-bit MCU and RS485 level communication chip adopt standard MODBUS RTU format RS485 communication protocol, It can realize 1-way input signal detection and 2-way relay output, can be used for digital detection or power control occasions.
Features:
- On-board mature and stable 8bit MCU and MAX485 level conversion chip
- Communication protocol: support standard Modbus RTU protocol
- Communication interface: Support RS485 / TTL UART interface
- Communication baud rate: 4800/9600/19200, default 9600bps, support power saving
- Photocoupler input signal range: DC3.3-30V (This input cannot be used for relay control)
- Device address: range 1-255, default 255, support power-down save
- Onboard one 5V, 10A / 250V AC 10A / 30V DC relay.
- Continuously attract 100,000 times, with diode leakage protection, short response time
- Onboard relay switch indicator
- Supply voltage: DC7-24V, with input anti-reverse protection
Package includes:
1 x 7-24V Modbus RTU 2 Channel Relay Module RS485
Technical Specifications
| Communication Mode | Support RS485 / TTL UART interface |
|---|---|
| Communication Protocol | Modbus RTU protocol |
| Model | Relay Module |
| No. of Channels | 2 |
| Onboard Chip | MAX485 |
| Operating Voltage (VDC) | 5 |
| Shipping Dimensions | 7 × 3 × 2 cm |
| Shipping Weight | 0.05 kg |
