Modbus Relay Modules (RS485/RS232 Protocol)

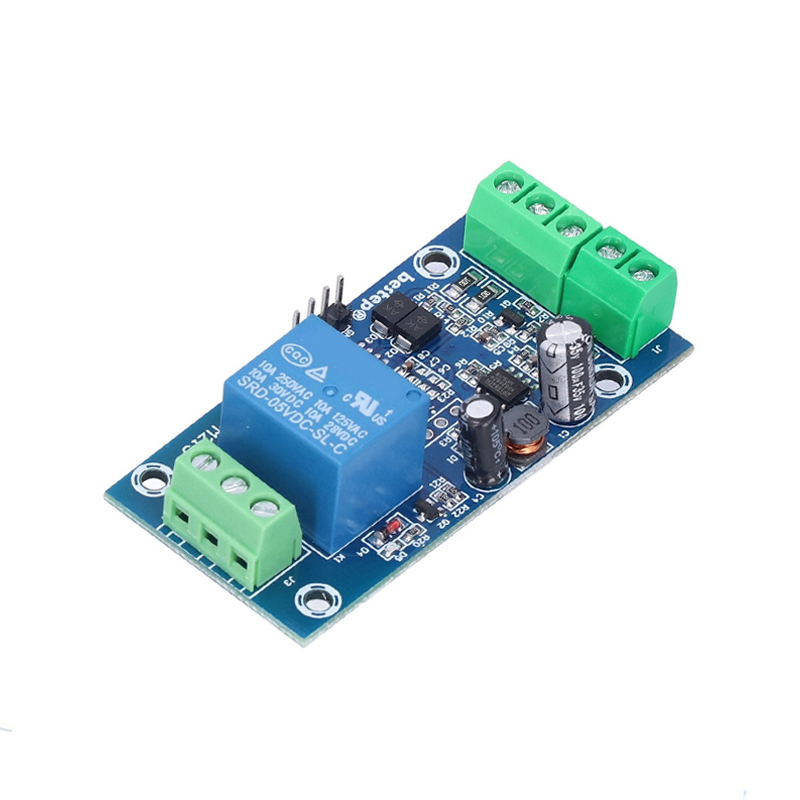

7-24V Modbus RTU 1, Channel Relay Module, RS485/TTL Anti-reverse, Connection

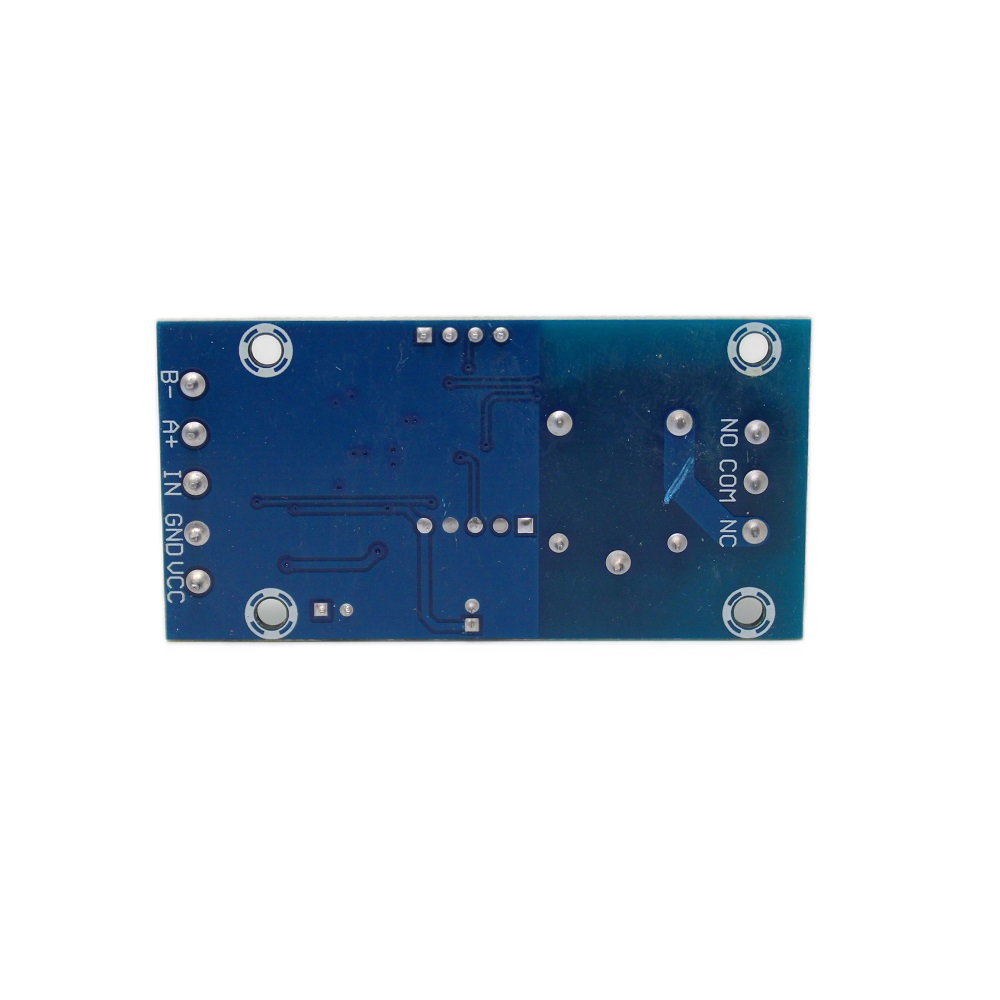

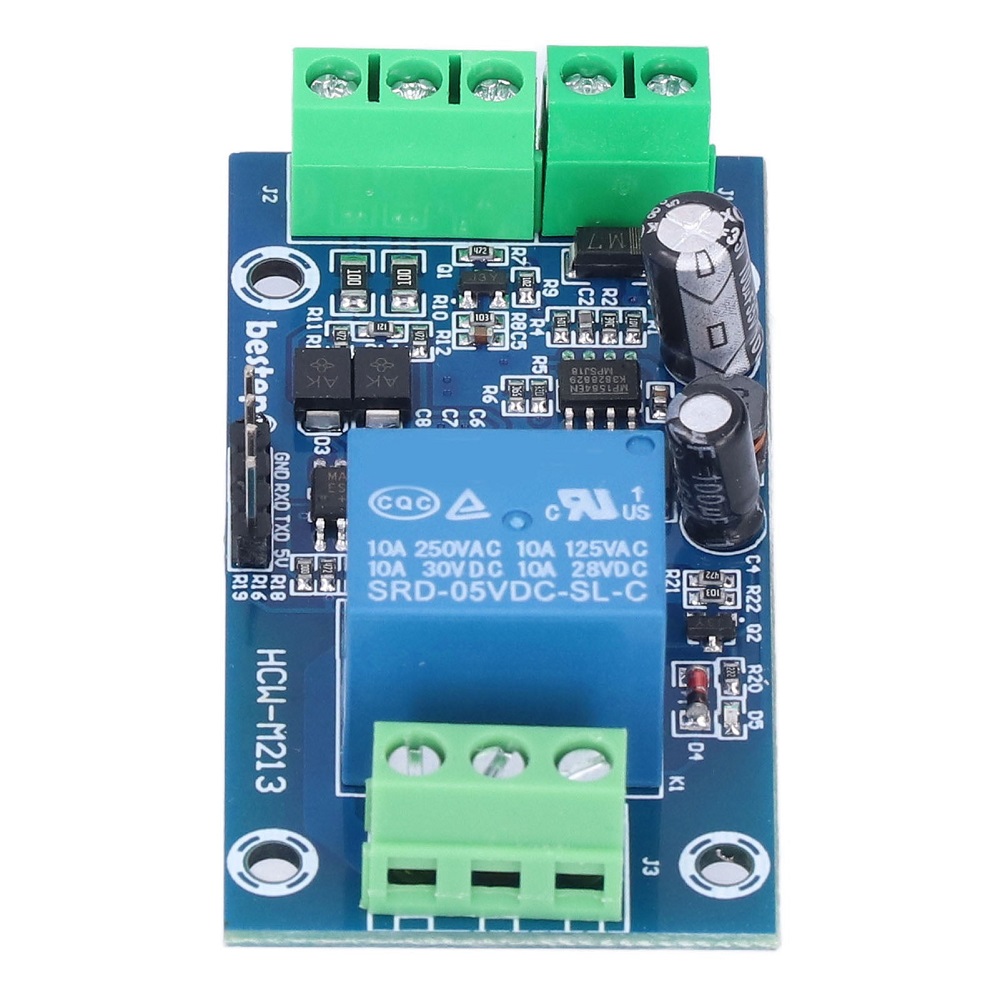

- 1. VCC, GND: DC7-24V power input
- 2. IN, GND: DC3.3-30V optocoupler signal input
- 3. A +, B-: RS485 communication interface, A +, B- are connected to A +, B-
- 4. Relay switch signal output
- NC: normally closed end, the relay is short-circuited to COM before pull-in, and left floating after pull-in;
- COM: public end;
- NO: Normally open, the relay is suspended before the pull-in, and shorted to COM after the pull-in.
- 5. Relay indicator: lit when the relay is on
- 6. GND, RXD, TXD: TTL level UAR...
SKU: Not Found
Brand: Generic
Out of stock
₹502.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support

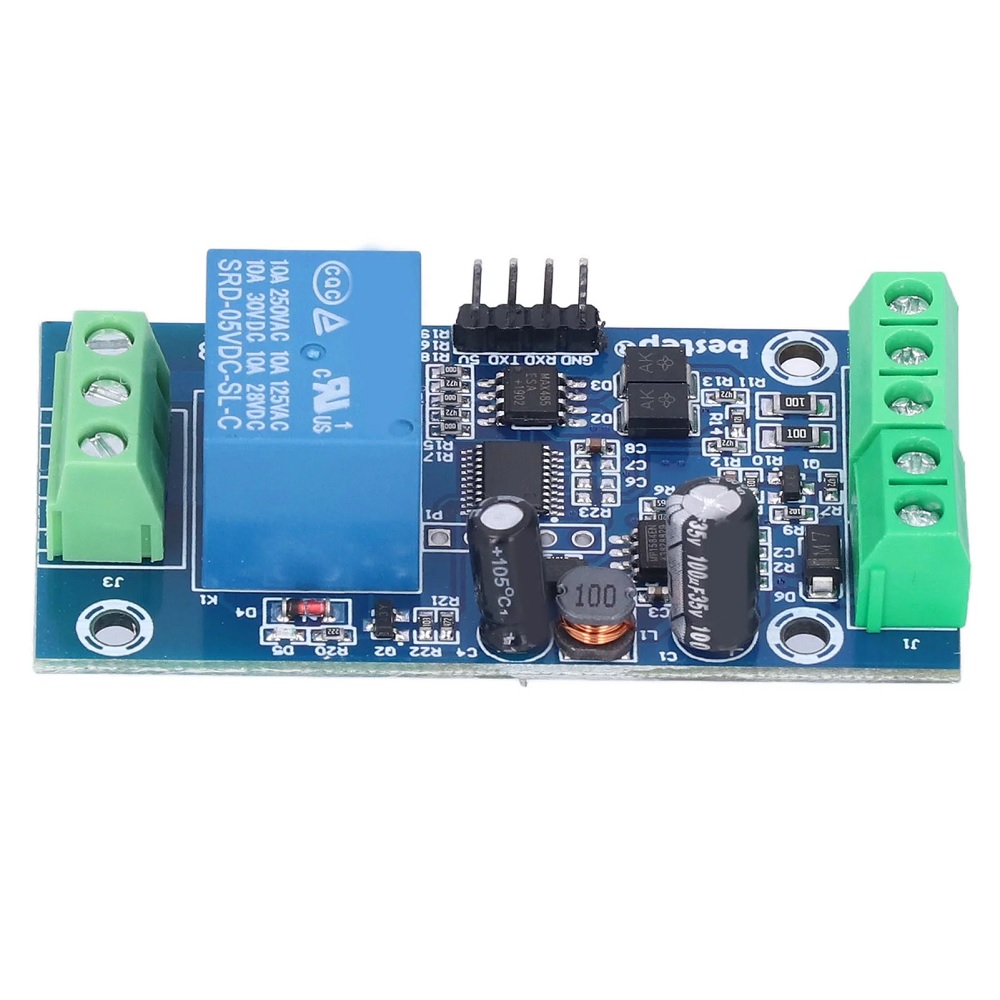

Product Description
LC 1 channel Modbus relay module equipped with mature and stable 8-bit MCU and RS485 level communication chip,adopt standard MODBUS RTU format RS485 communication protocol, It can realize 1-way input signal detection and 1-way relay output, can be used for digital detection or power control occasions.

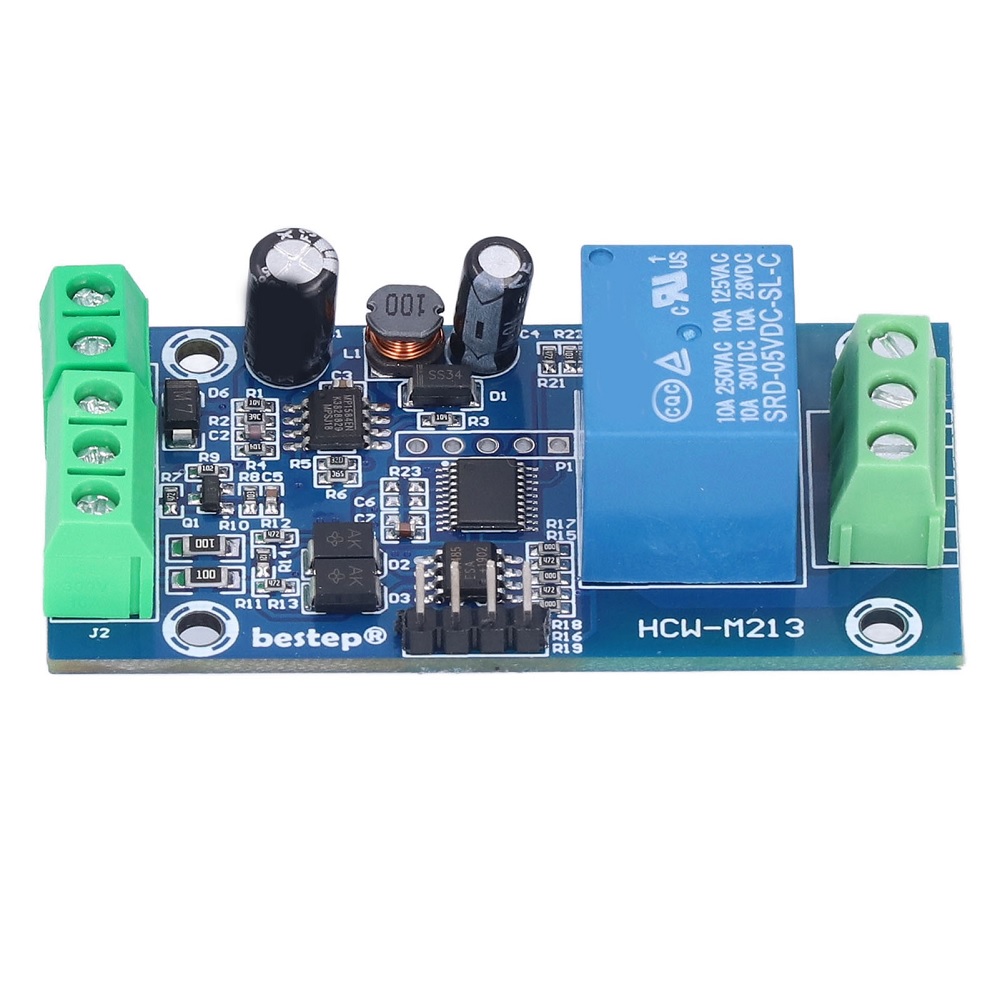

Features:
1. On-board mature and stable 8bit MCU and MAX485 level conversion chip
2. Communication protocol: support standard Modbus RTU protocol
3. Communication interface: Support RS485 / TTL UART interface
4. Communication baud rate: 4800/9600/19200, default 9600bps, support power saving
5. Photocoupler input signal range: DC3.3-30V (This input cannot be used for relay control)
6. Output signal: relay switch signal, support manual, flash-off, flash-off mode, the delay base of flash-off / flash-off is 0.1S, the maximum settable flash-off / flash-off time is 0xFFFF * 0.1S = 65535 * 0.1 S = 6553.5S
7. Device address: range 1-255, default 255, support power-down save
8. Onboard one 5V, 10A / 250V AC 10A / 30V DC relay, which can continuously attract 100,000 times, with diode leakage protection, short response time
9. Onboard relay switch indicator
10. Supply voltage: DC7-24V, with input anti-reverse protection
Package Includes:
1 x 7-24V Modbus RTU 1 Channel Relay Module RS485
Technical Specifications
| Baud Rate (bps) | 4800/9600/19200, default 9600bps |
|---|---|
| Communication Mode | Support RS485 / TTL UART interface |
| Communication Protocol | Modbus RTU protocol |
| Model | Relay Module |
| Onboard Chip | 8bit MCU and MAX485 |
| Shipping Dimensions | 10 × 6 × 1 cm |
| Shipping Weight | 0.026 kg |
| Supply Voltage (V) | DC7-24V |
