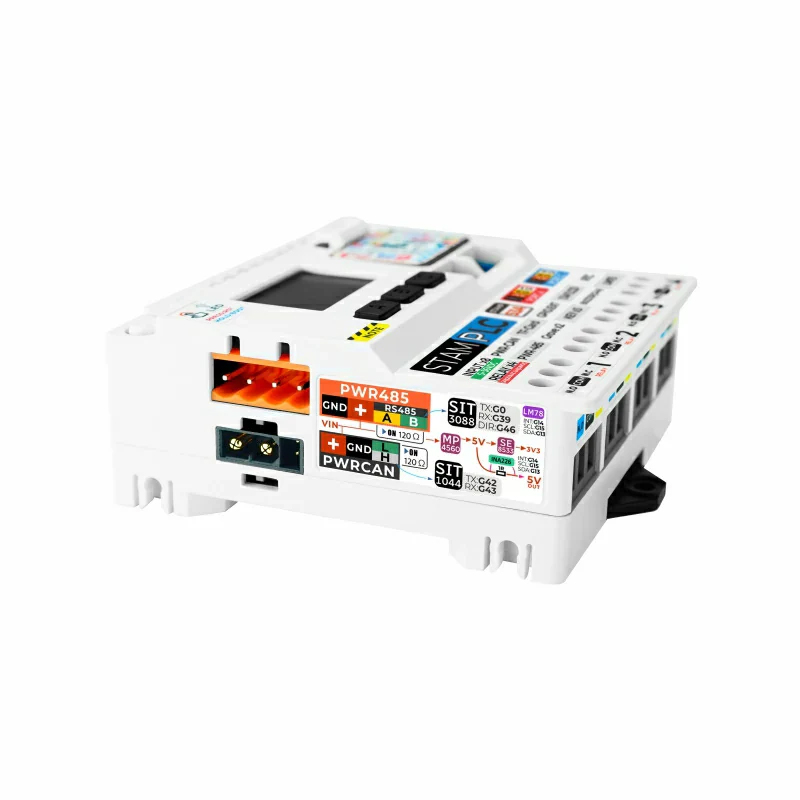

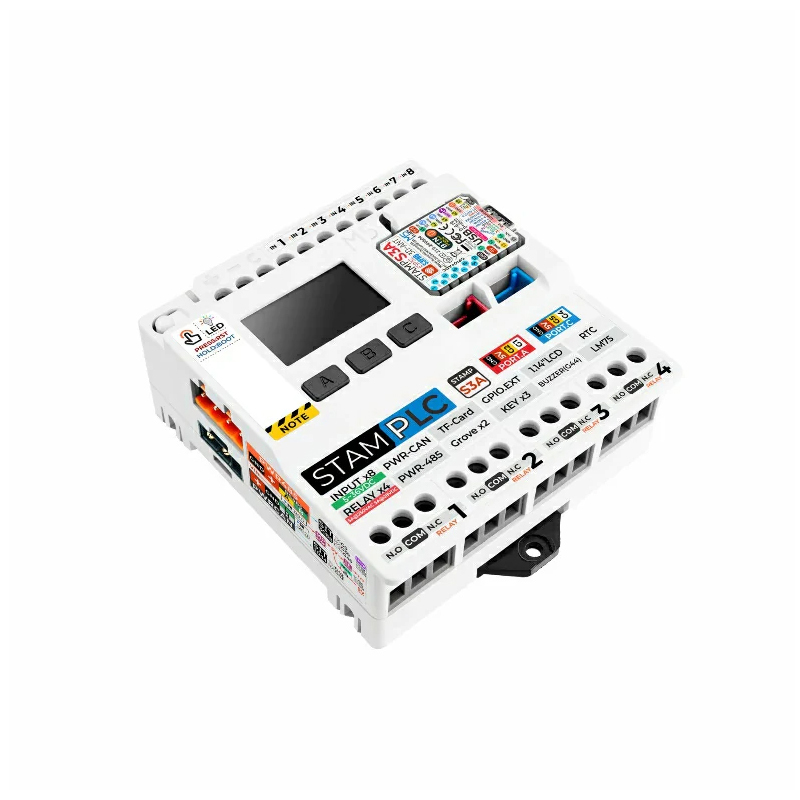

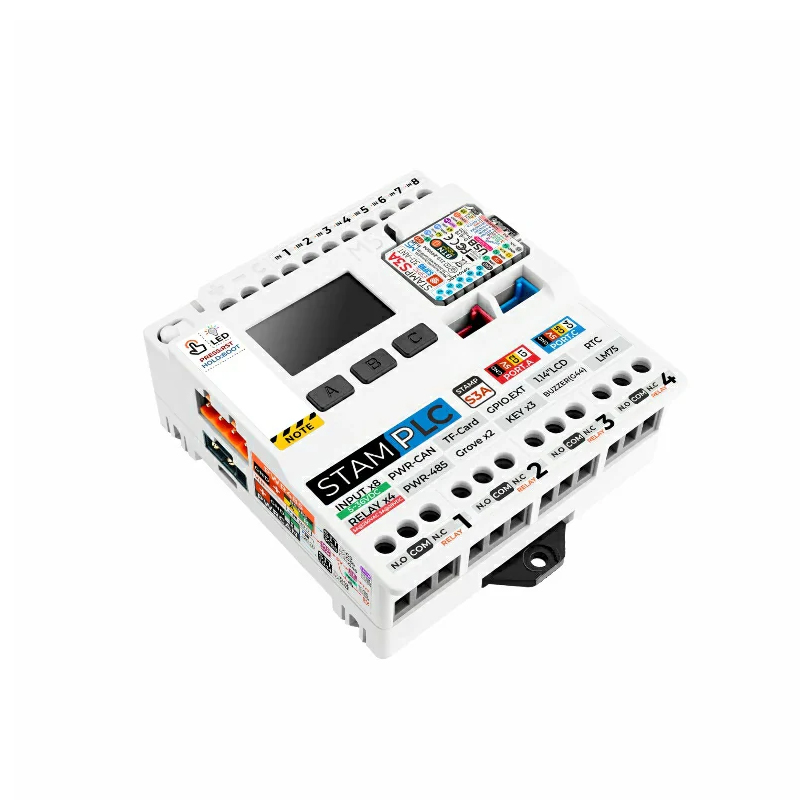

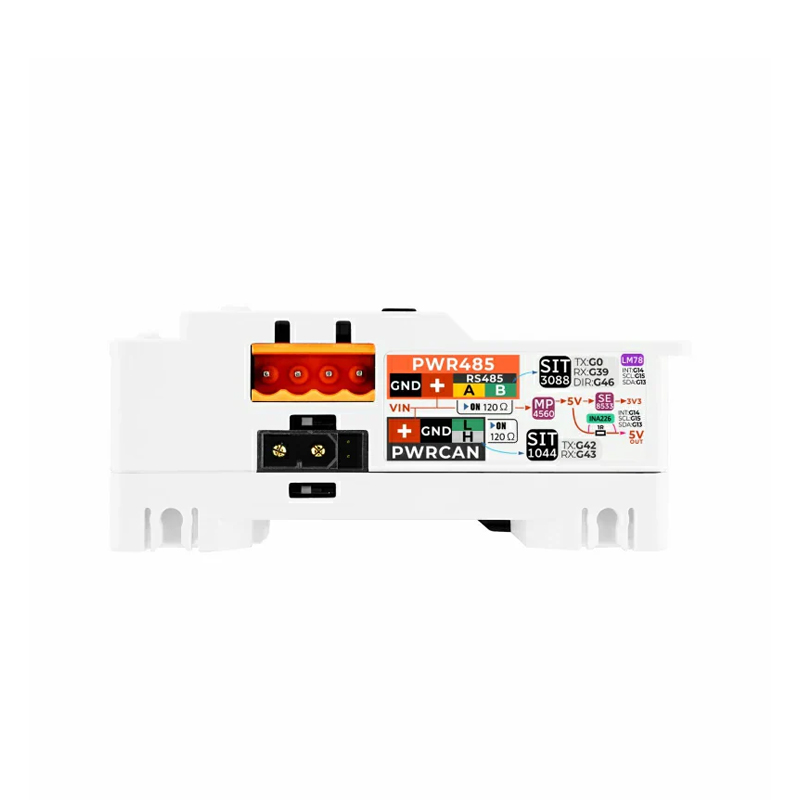

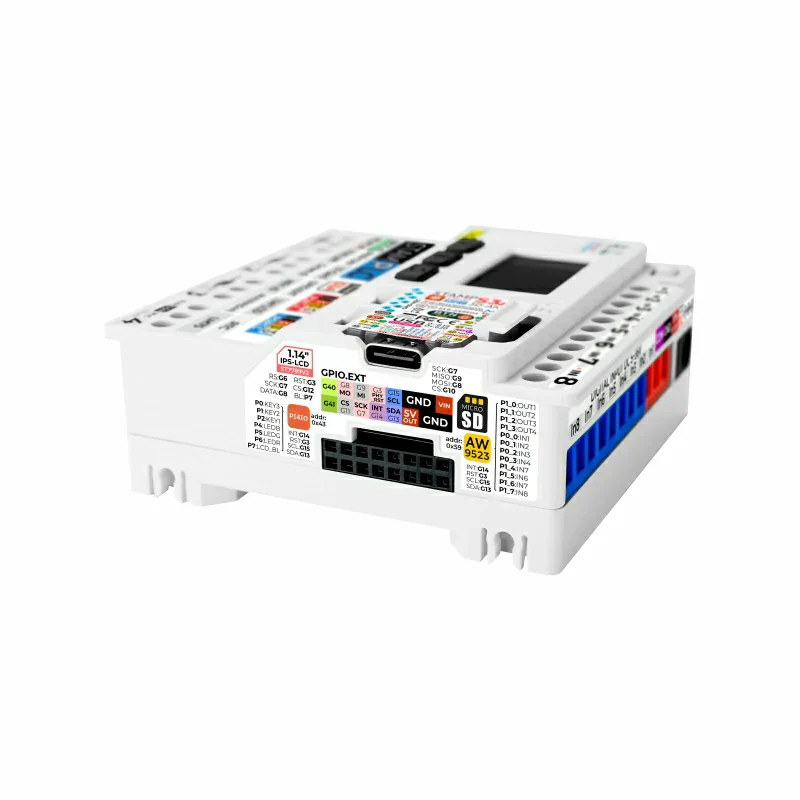

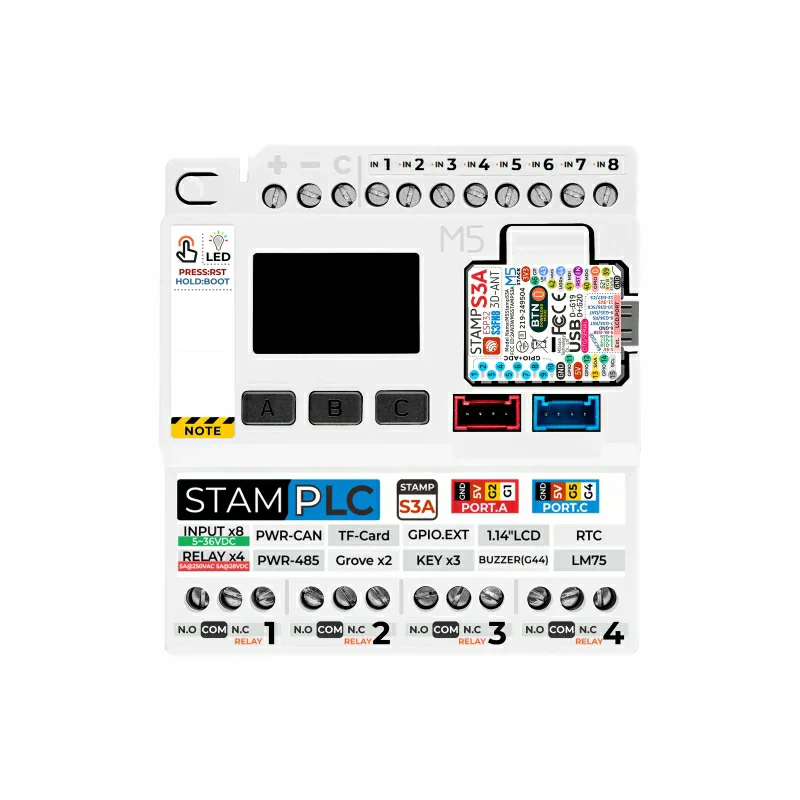

The M5Stack StamPLC Controller with M5StampS3 is a compact and versatile programmable logic controller (PLC) designed for IoT-enabled industrial automation and smart control applications. Powered by the ESP32-S3FN8 SoC, it delivers dual-core processing and Wi-Fi connectivity, making it ideal for distributed control systems, robotics, and energy management. The controller features 8 opto-isolated digital inputs and 4 relay outputs for precise control of AC and DC loads, while its 1.14″ color display, user buttons, buzzer, and onboard sensors provide real-time monitoring and alerts.

Designed for flexibility and ease of integration, the M5Stamp PLC Controller supports multiple programming environments, including UiFlow2, Arduino IDE, ESP-IDF, and PlatformIO, allowing both graphical and code-based development. With a wide input voltage range (DC 6–36 V) and DIN-rail compatibility, it fits seamlessly into industrial environments. Whether for smart home projects, industrial automation, or distributed robotics, the M5Stamp PLC Controller ensures reliable performance, easy installation, and efficient system control.

Features:

1. EZData Cloud Monitoring
2. 8 Opto-isolated Digital Inputs
3. 4 Relay Outputs (AC/DC)
4. 1.14-inch Color Display (ST7789v2)
5. PWR-CAN & PWR-485 Interfaces
6. Wide Voltage Input (DC 6–36V)
7. Voltage/Current Sensor
8. Internal Temperature Sensor
9. User Buttons
10. Micro SD Card Slot
11. DIN Rail Mounting
12. Buzzer
13. Grove Interface
14. RTC Module
15. Development Platform: UIFlow 2.0, Arduino IDE, ESP-IDF

Applications:

1. Industrial Automation and Remote Control
2. Distributed Control Systems
3. Smart Energy Management
4. Smart Manufacturing

Package Includes:

1 x StamPLC
4 x Mounting Accessories
4 x Screw Clip Fasteners
