LILYGO T-Camera Plus 1.3 Inch Display Normal Rear Camera Module With OV2640
- Power management chip: IPS306
- Power supply: USB 5V 1A
- Charging current: 1A
- Battery: 3.7V lithium battery
SKU: Not Found
Brand: LILYGO
Out of stock
₹2299.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 14 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description

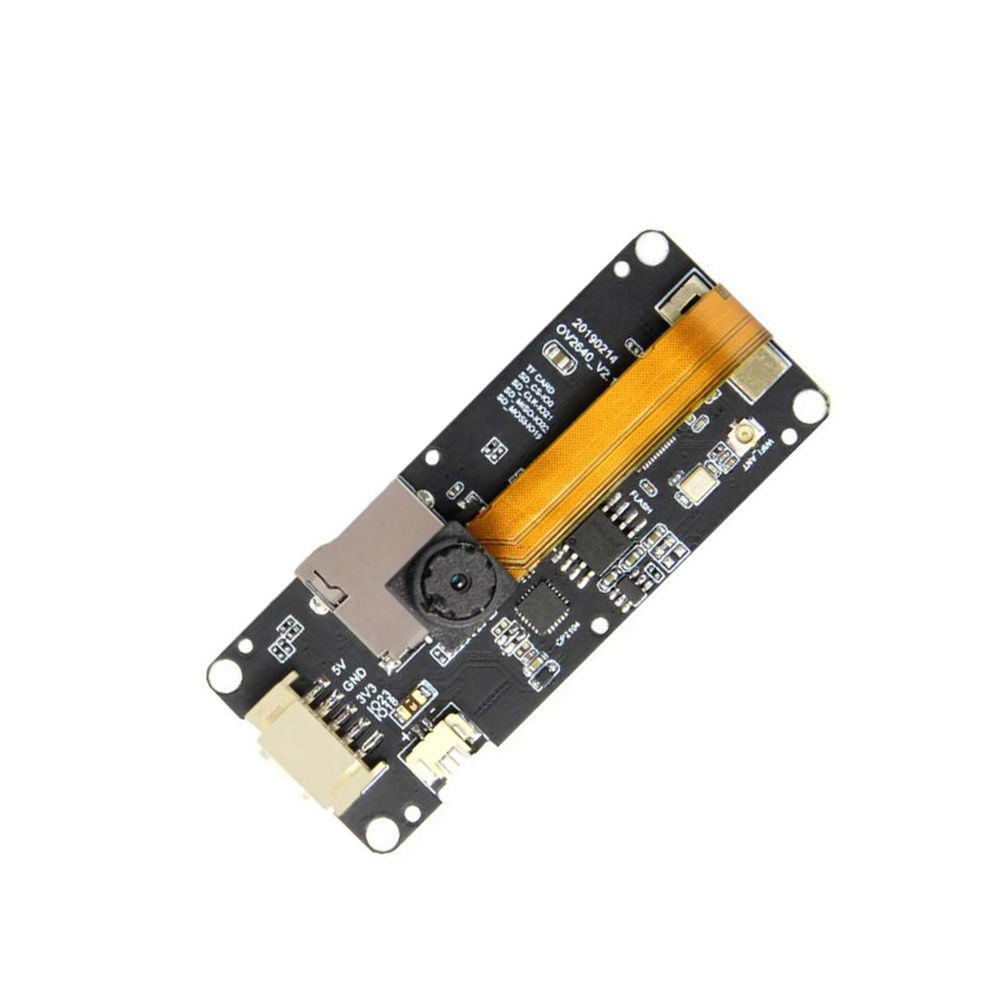

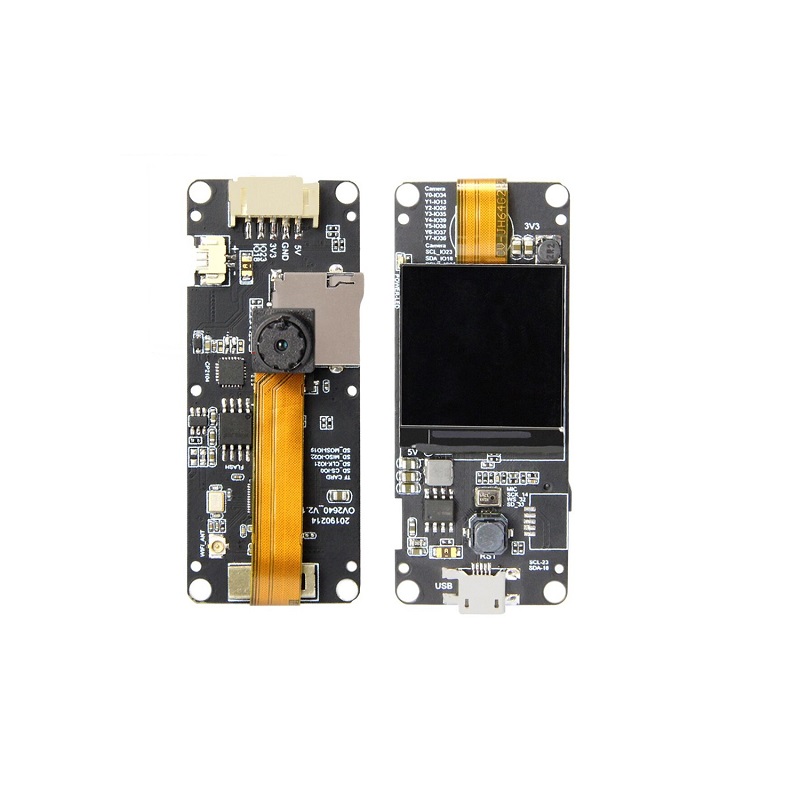

This is a LILYGO T-Camera Plus 1.3 Inch Display Normal Rear Camera Module With OV2640. The module contains an IPS Panel ST7789/1.3 Inch display. It has an Integrated external SD card slot. The camera can be extended to become a rear camera, the program is set to delay the photo, and then become a camera function.
Features:
- The external antenna is used to increase the Wi-Fi communication range.
- The board comes with a microSD card slot.
- This can be very useful to store photos, data collected from I2C sensors, or to store files.
Package Includes:
1 x LILYGO T-Camera Plus 1.3 Inch Display Normal Rear Camera Module With OV2640
Technical Specifications
| Camera Details | OV2640 2Megapixel |
|---|---|
| charging current(A) | 1A |
| Chipset | ESPRESSIF-ESP32-DOWDQ6 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor |
| Communication Distance(m) | 300m |
| Display Size (Inch) | IPS Panel ST7789/1.3 Inch |
| Flash Memory | QSPI flash/SRAM, up to 4 x 16 MB |
| Frequency Range (GHz) | 2.4~2.5GHz |
| Height (mm) | 11 |
| Item Type | Camera Module |
| Length (mm) | 70 |
| On-board clock | 40MHz crystal oscillator |
| Operating Temperature (°C) | 40 to 85 |
| Operating Voltage (V) | 2.3 to 3.6, 3.3 |
| Power Supply | USB 5V/1A |
| Resolution | 2MP (1600 x 1200) |
| Shipping Dimensions | 8 × 5 × 3.5 cm |
| Shipping Weight | 0.035 kg |
| SRAM | 520 kB SRAM + 8MBytes External SPRAM |
| Transmit Power (dBm) | 22dBm |
| USB to TTL | CP2104 |
| Weight (g) | 12 |
| Width (mm) | 30 |
| Working Current (mA) | 160mA |
