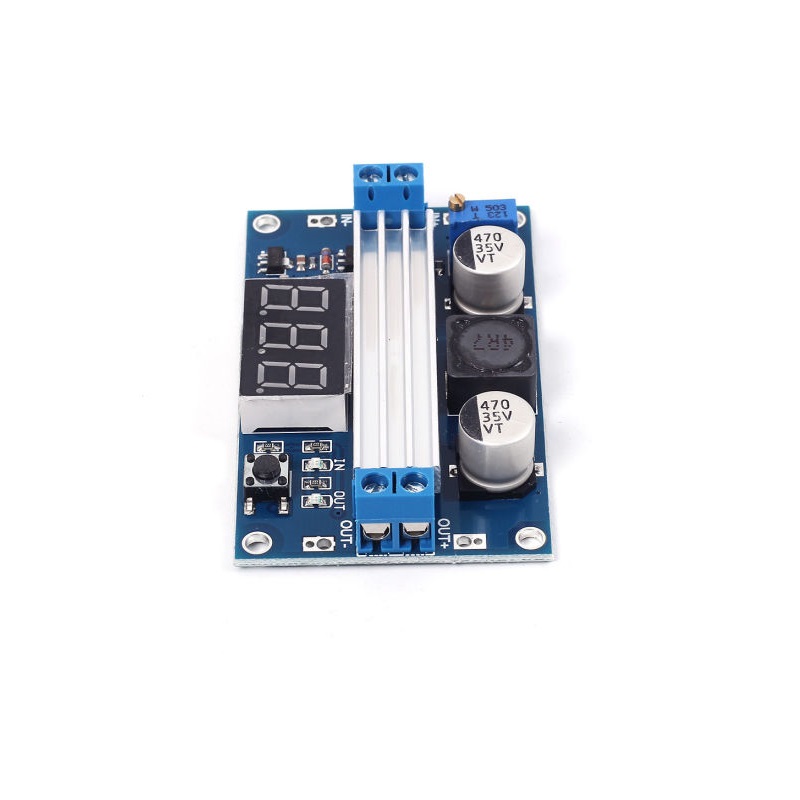

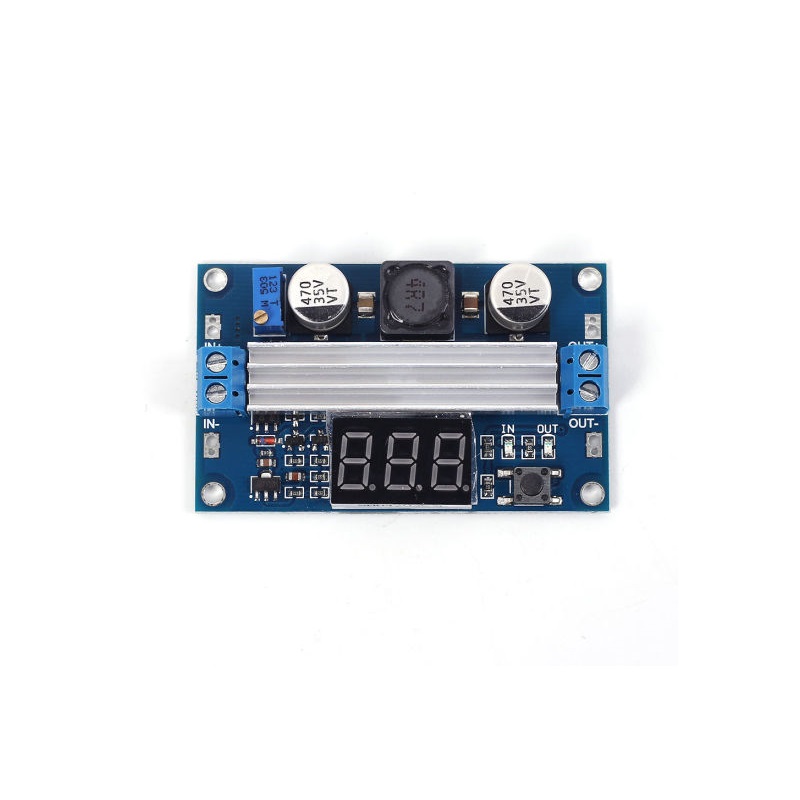

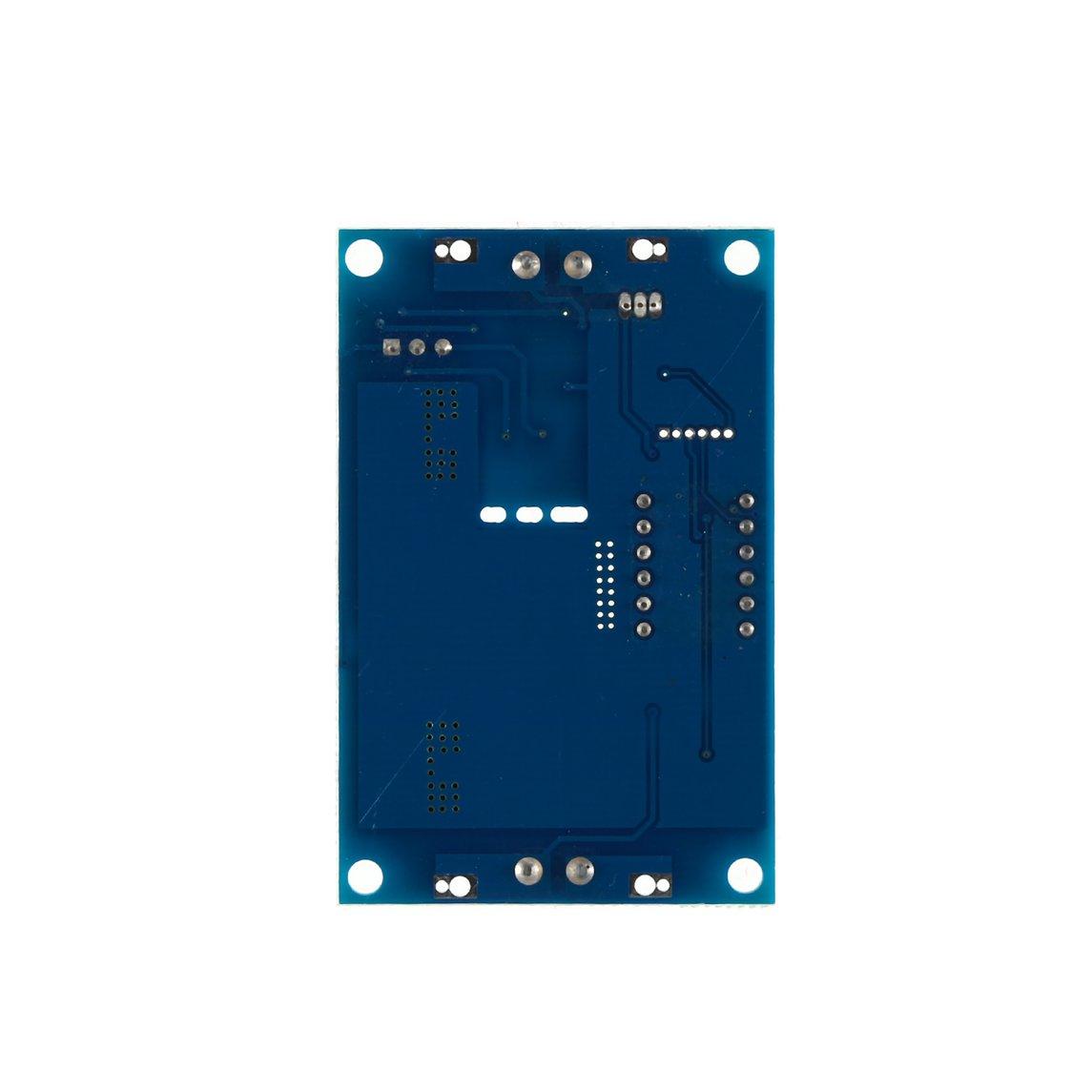

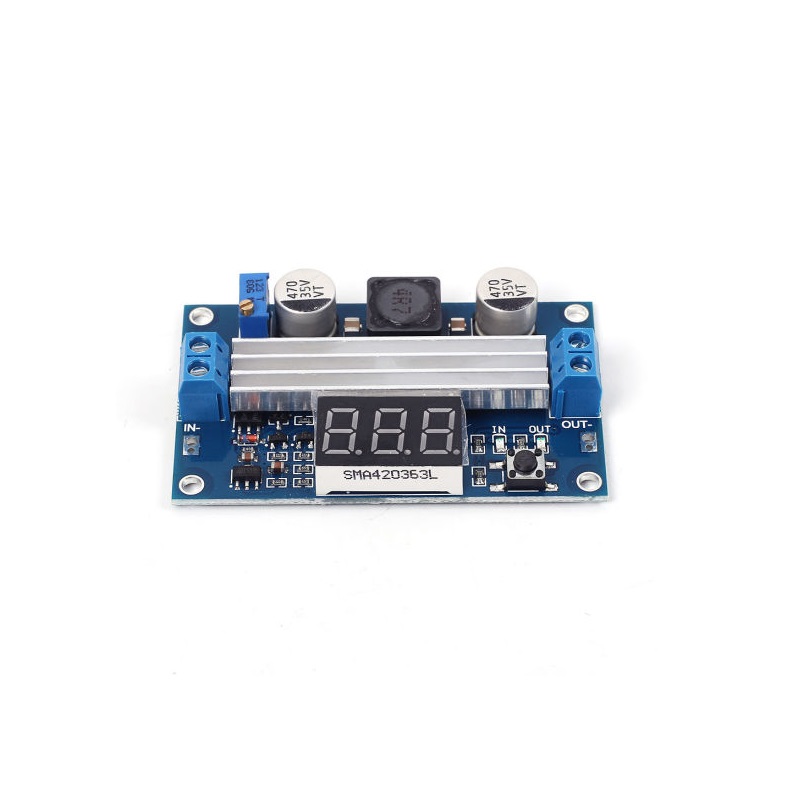

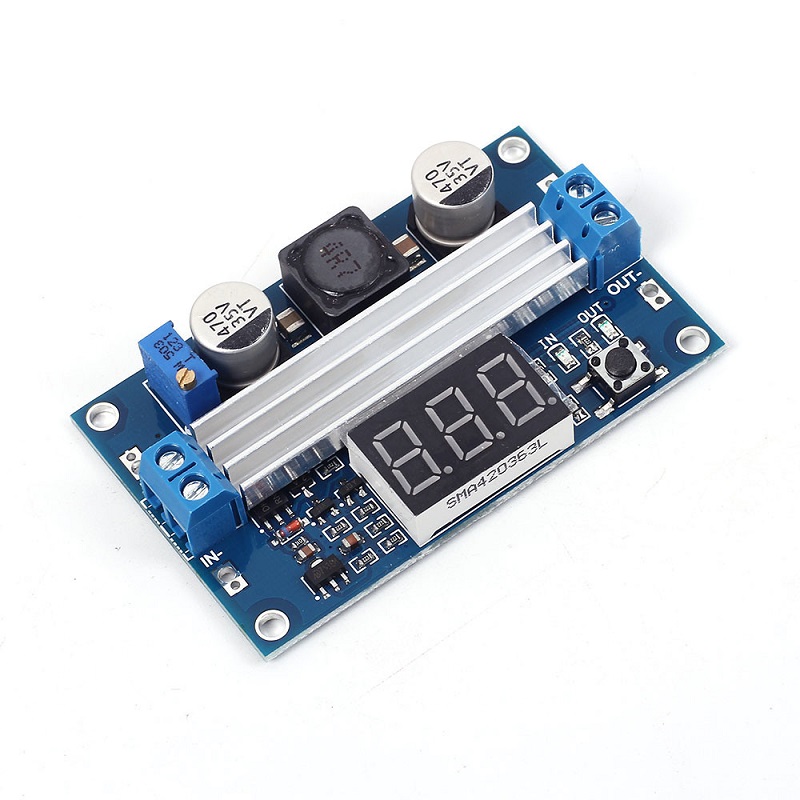

DC-DC High Power Adjustable Step-up Module 3.0~35V to 3.5~35V 100W with Digital Display Voltmeter
- Input voltage: 3 ~ 35V DC
- Input current: 9A (max)
- Output voltage: 3.5 ~ 35V DC
- Output current: 6A (max)
- Output power: 75W
- Conversion efficiency: 96.7% (highest)
- Output ripple: 24mV (TYP)
SKU: Not Found
Brand: Generic
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
DC-DC High Power Adjustable Step-up Module 3.0~35V to 3.5~35V 100W with Digital Display Voltmeter is a automatic boost module provides a stable power supply. Applicable to an unstable voltage source or voltage conversion. The display part adopts a more advanced microprocessor of the voltmeter. By using the on-resistance of power MOSFET, the current detection resistance is omitted, and the efficiency is improved to the maximum extent, up to 96.4%.
Imported high power low resistance MOS transistors, large package, high current, high-efficiency Schottky, ultra-wide, and thick PCB wiring, are the guarantee of high power, high efficiency, and low-temperature rise. High frequency, high capacity and low resistance (low ESR) aluminium electrolytic capacitor for long-life switching power supply make the output ripple lower.
Features:
- High power 100W.
- Switch display output and input voltage.
- Adjustable output voltage.
- Real-time display voltage.
- Comes with an excellent heat sink
- Fixed mounting hole.
- High-quality terminal block
Package Includes:
1 x DC-DC High Power Adjustable Step-up Module
Technical Specifications
| Conversion efficiency | 96.7% (highest) |
|---|---|
| Input Current (A) | 9A (max) |
| Input Voltage (V) | 3 ~ 35V DC |
| Model | Power Module |
| Output Current (mA) | 6000 |
| Output Power (W) | 75 |
| Output Ripple | 24mV (TYP) |
| Output Voltage (V) | 3.5 ~ 35V DC |
| Shipping Dimensions | 7 × 5 × 3 cm |
| Shipping Weight | 0.034 kg |
| Size (mm) | 67x43mm |
| Weight (g) | 34 |
