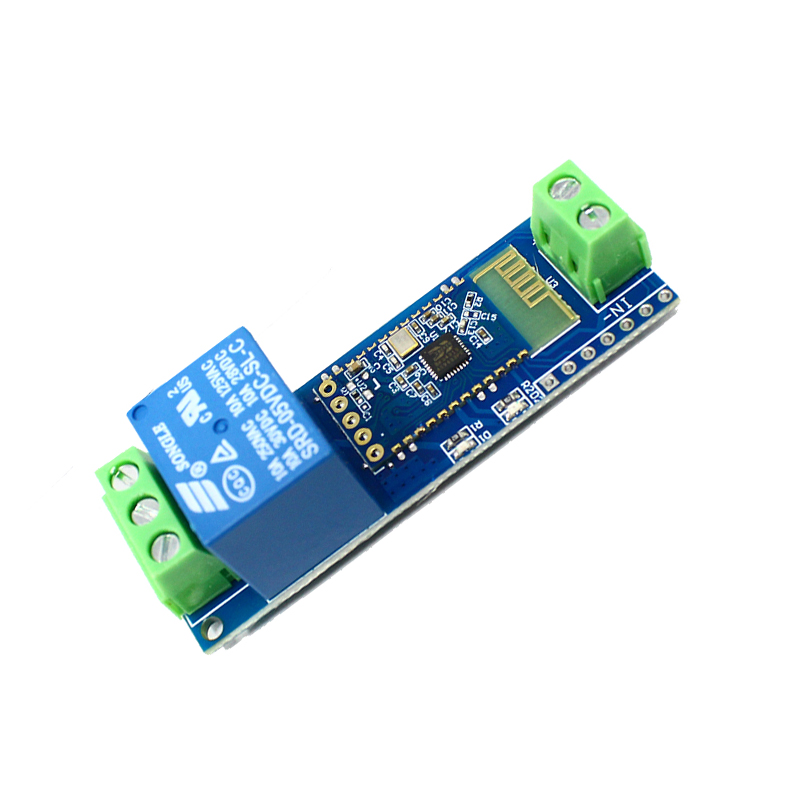

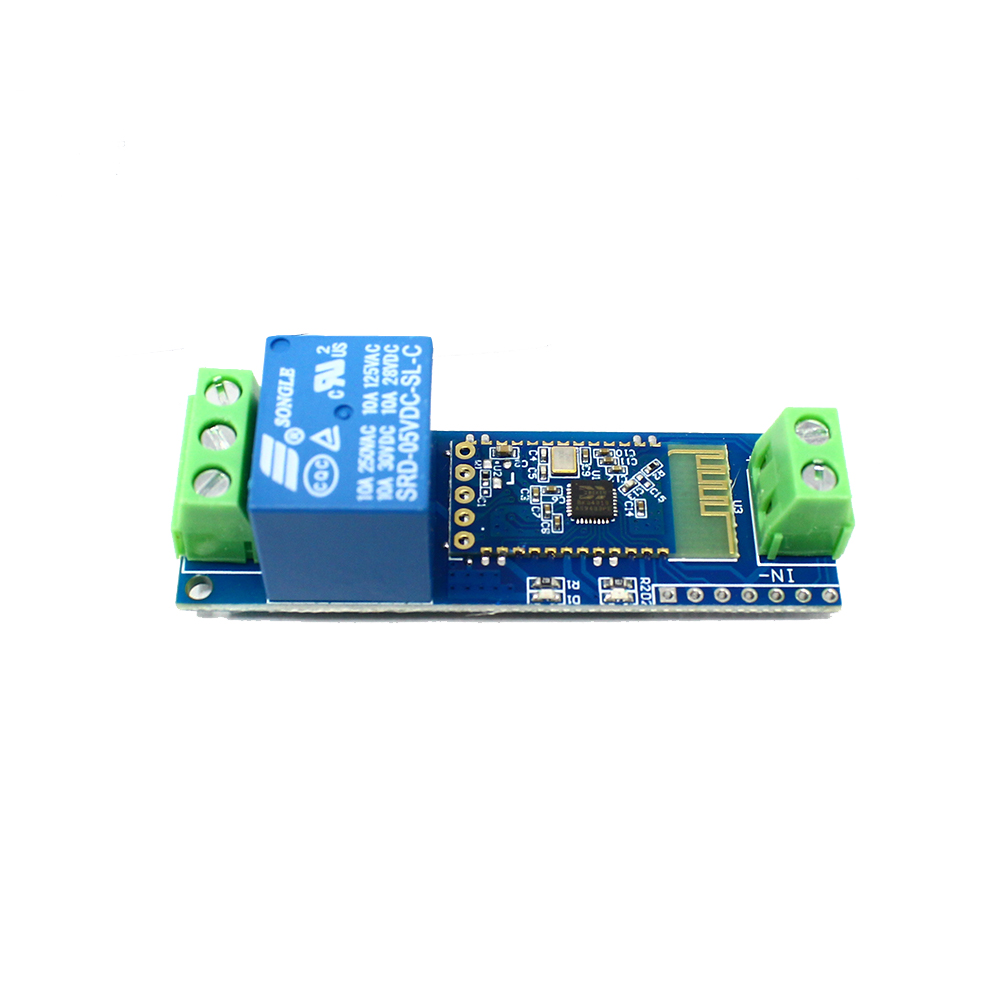

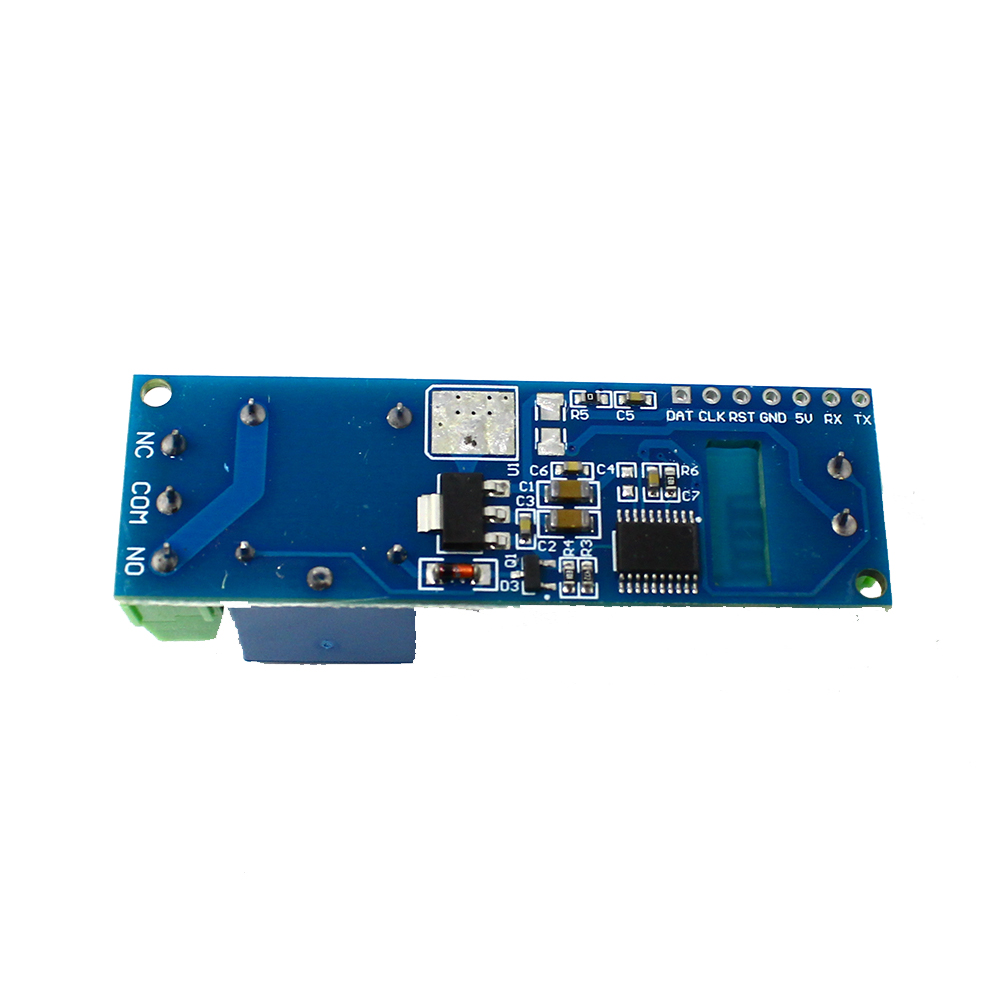

5V 1 Channel Bluetooth, Relay Module Things, Smart Home Remote, Control Switch

USB and Bluetooth Relay Modules

5V 1 Channel Bluetooth, Relay Module Things, Smart Home Remote, Control Switch

(0 customer reviews)

Onboard Bluetooth status indicator and relay indicator
With optocoupler isolation, strong anti-interference ability
Onboard N76E003/STM8S003 and SPP-C Bluetooth 2.1 module
Effective control distance(on open area): 10m
Module Operating Voltage: 5VDC
On-board 5V, 10 A / 250 v AC 10 A / 30 v DC relay, absorb 100000 times continuously.

SKU: Not Found

Brand: Generic

Out of stock

₹550.00

Free Delivery Expected:

Thursday, May 28 - Saturday, May 30

Order within the next 15 hrs to get it by this date.

100% Secure Checkout
7-Day Easy Returns
Authentic & Quality Checked
24/7 Priority Support

Product Description

This module is ideally suited to controlling larger voltages with the project. This is a single channel relay module that can be used to activate up to 250V AC and 30V DC. This allows you to build in device control, operating remote lights or triggering systems when the module is supplied the signal.

These modules are designed for the connected age we live in. Each module has an onboard Bluetooth chipset that will provide the signal to trigger the relay. Using a Bluetooth scanning device, such as a mobile phone, you will be able to pick up the relay. First, you will need to pair with it, this is done by selecting it from within your Bluetooth browser and entering the password “1234”.

The module comes with two onboard LEDs that inform of the state of the module. Red power LED and a green activation LED that lights when a signal is received. When a signal is received an audible click can be heard as the relay triggers, connecting the output pins.

How to use:
1. Install the Android APP

2. Search for the Bluetooth device and connect it.

3. Enter the pairing password 1234

4. Input the name and content of the instruction (A00101A2 open relay instruction: the content is A00100A1 close relay) 5. Select send in hexadecimal form.

LED Indications:

LED D1 (Blue): Bluetooth state indicator:

D1 blink slowly-Search Module over Bluetooth and wait till pairing
D1 Continue ON means connection established and ready to use

LED D2 (Red): Relay indicator
These LEDs will show the status of Relay ON-OFF individually

If you’re working on a large project and are unsure which value of the component will work best for your project, or if you’re having issues such as misplacing the products and want to get rid of these issues then what’s stopping you from purchasing high-quality, low-cost component kits?

Click Here to buy these amazing, high-quality, low-cost orange component kit to simplify the prototyping process for your product.

Features:

Easy to set up and pair with Android Phone
Onboard Bluetooth status indicator and relay indicator
With 4 optocoupler isolation, strong anti-interference ability
Onboard N76E003/STM8S003 and SPP-C Bluetooth 2.1 module
Effective control distance(on open area): 10m
Module Operating Voltage: 5VDC
On-board 5V, 10 A / 250 v AC 10 A / 30 v DC relay, absorb 100000 times continuously.
Module with diode effusion protection short response time

Package Includes:

1 x DC 5V 1 Channel Bluetooth Wireless Control Relay Module

Note: The Images shown may vary from the actual product in terms of design, according to availability from the manufacturer.

SKU: 1121255 Category: USB and Bluetooth Relay Modules Tag: Bluetooth relay

Technical Specifications

Board Dimensions(mm)	63 x 23 x 19
Control Distance	10m (on open area)
Model	Bluetooth Relay Module
No. of Channels	1
Onboard	N76E003/STM8S003 and SPP-C Bluetooth 2.1 module
Operating Voltage (VDC)	5
Shipping Dimensions	6 × 3 × 2 cm
Shipping Weight	0.09 kg
Weight (g)	20
