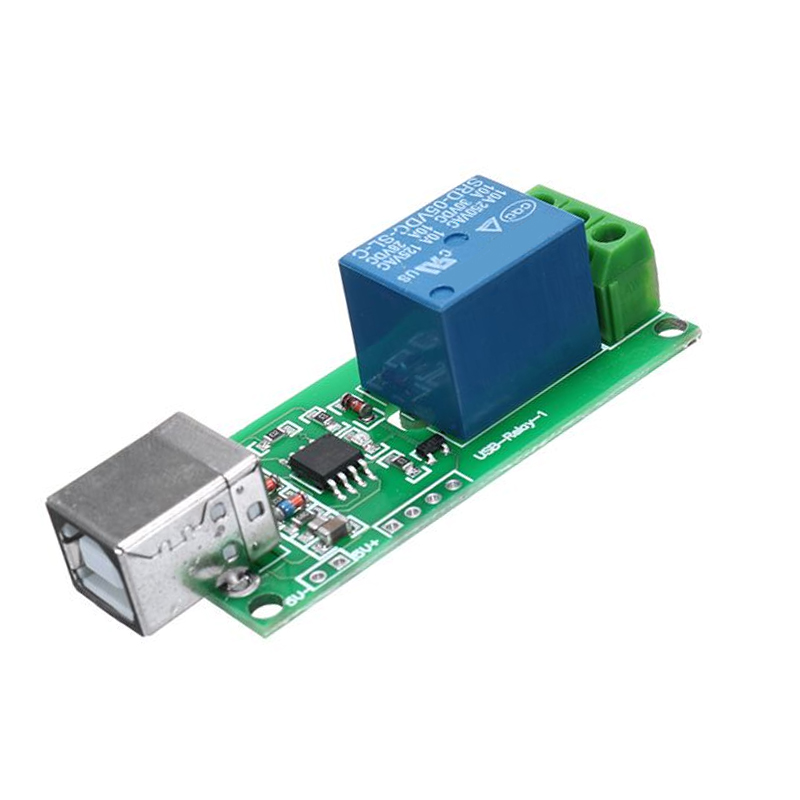

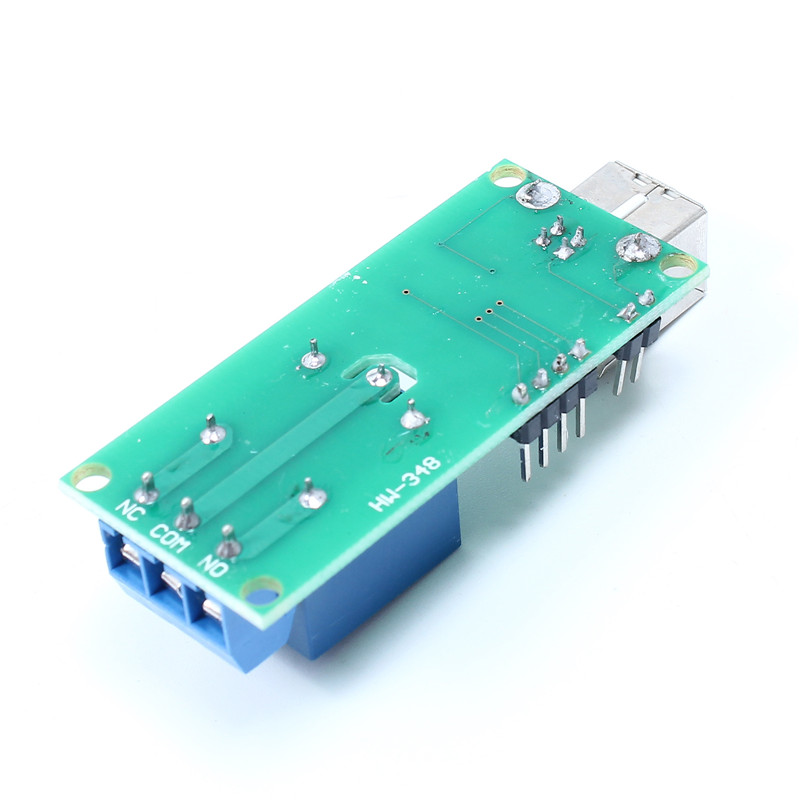

USB Control 1 Channel Module 5V Relay Module
- Contact type: NC / COM / NO
- Input current: ≥300mA
- Input voltage: DC 5V
- Support Win7, XP 32-bit systems
- Onboard square USB interface, stable connection.
- Use imported high-performance USB control chip.
- Application code: Green indicates that the relay is closed, the red disconnect
- Military grade PCB board production.
SKU: Not Found
Brand: Songle
Out of stock
₹367.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
This is a 1 channel version of different relays available in our shop. The USB Control 1 Channel Module 5V Relay Module has the Onboard USB Control Module with one 5V Relay Module with a square USB port, and the connection is stable.
It has a high-performance USB controlling chip and genuine relay on board as well as military-level PCB board workmanship. The USB Control 1 Channel Module 5V Relay Module supports Win7, XP 32 system.
The module board has fully machinery processing. And all patch parts manufacturing and each module are tested OK before shipment for high reliability.
Features :
- The onboard square USB interface, stable connection.
- Use imported high-performance USB control chip.
- Application code: Green indicates that the relay is in the closed state, the red disconnect
- Military-grade PCB board production.
- Use genuine pine music relay
- Support Windows 7, XP 32-bit systems
Package Includes :
1×USB Control 1 Channel Module 5V Relay Module
Technical Specifications
| Height (mm) | 17 |
|---|---|
| Length (mm) | 65 |
| Model | Relay Module |
| No. of Channels | 1 |
| Operating Temperature (°C) | -40 to 85 |
| Operating Voltage (VDC) | 5 |
| Opt. Relative Humidity(RH) | 20% ～ 85% |
| Shipping Dimensions | 8 × 4 × 3 cm |
| Shipping Weight | 0.02 kg |
| Storage Temperature (°C) | -40 to 80 |
| Supply Current (A) | 0.3 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Weight (g) | 18 |
| Width (mm) | 25 |
