IoT WiFi and RF Relay Module

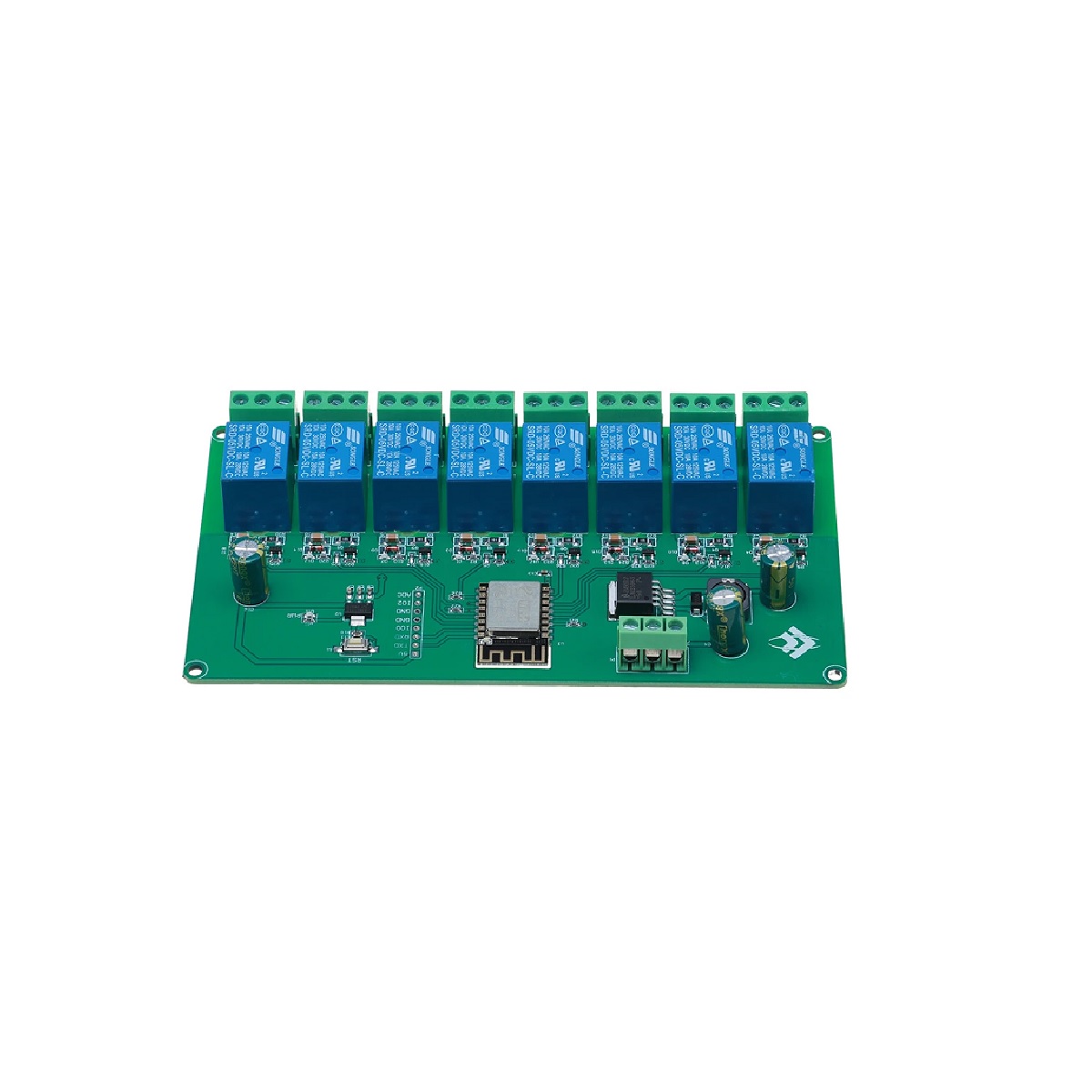

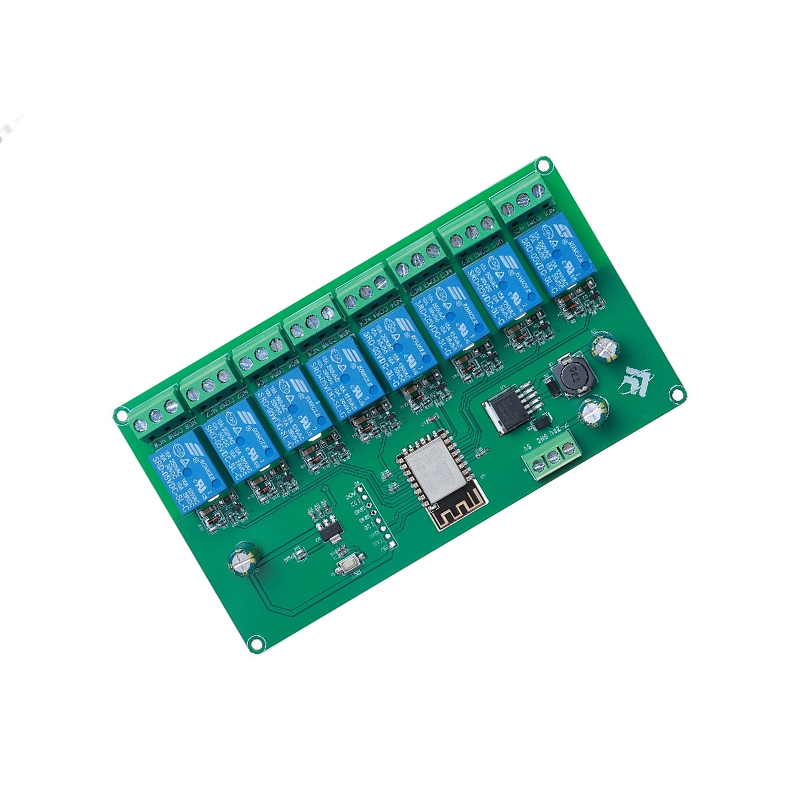

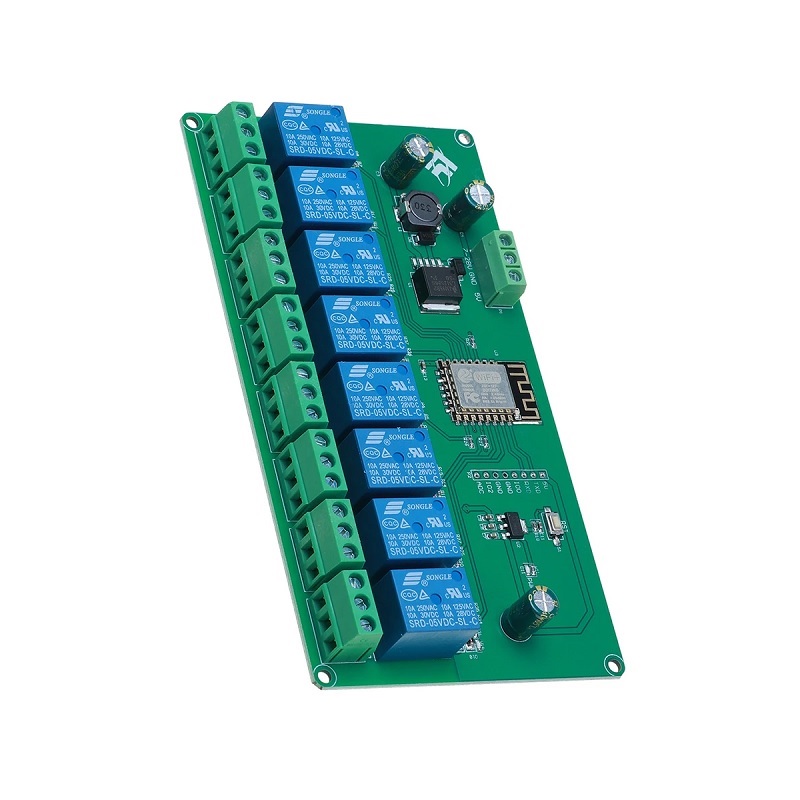

5V/7-28V ESP8266 WIFI 8 Channel Relay Module ESP-12F Development Board
- Board size: 149*80mm
- Weight: 140g
- Power supply mode supports DC7-28V/5V
- Onboard WIFI module RST reset button
- 4M Byte Flash
SKU: Not Found
Brand: Generic
Out of stock
₹1369.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The ESP8266 eight-way relay development board is equipped with an ESP-12F WiFi module and supports DC7-28V/5V power supply. Provide Arduino development environment reference code, suitable for ESP8266 secondary development learning, smart home wireless control and other occasions.
Specifications and Features:
- Onboard mature and stable ESP-12F WiFi module, large capacity 4M Byte Flash
- Power supply mode supports DC7-28V/5V
- Onboard WIFI module RST reset button
- ESP-12E supports the use of development tools such as Eclipse/Arduino lDE
- Provide reference program under Arduin0 development environment
- Onboard 8 5V relays, output switch signals, are suitable for controlling loads whose working voltage is within AC 250V/DC30V
- Onboard power indicator and relay indicator
Package Includes:
1 x 5V/7-28V ESP8266 WIFI 8 Channel Relay Module ESP-12F Development Board
Technical Specifications
| Buttons | Onboard WIFI module RST reset button |
|---|---|
| Dimensions (L x W x H) mm | 149 x 80 |
| Flash Memory | 4M Byte |
| Model | WiFi Relay Module |
| No. of Channels | 8 |
| Power Supply (V) | DC7-28V/5V |
| Shipping Dimensions | 7.5 × 8 × 4 cm |
| Shipping Weight | 0.12 kg |
| Weight (g) | 140 |
