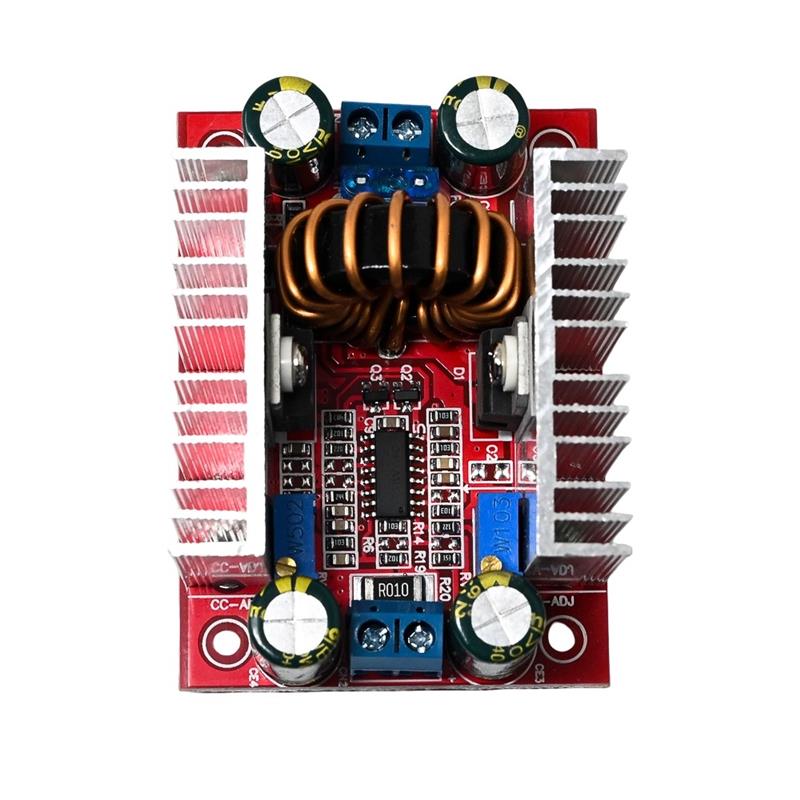

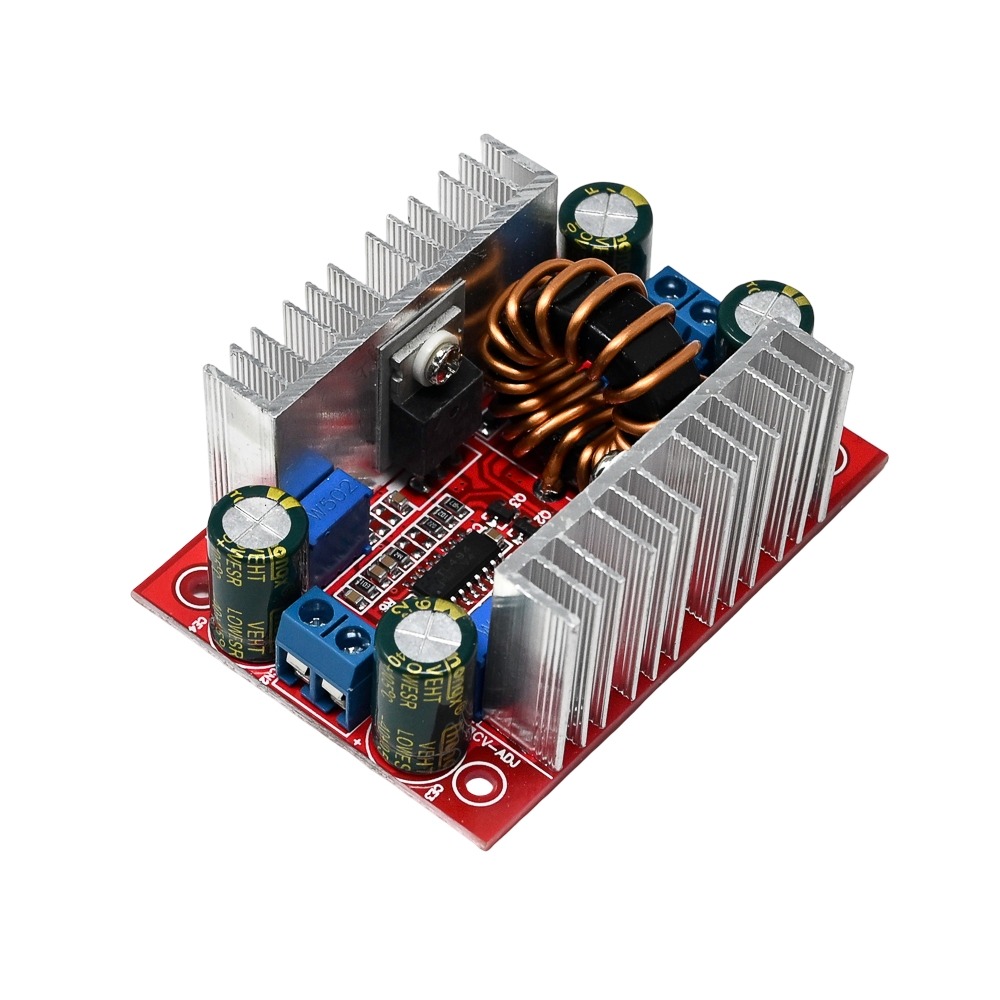

400W DC-DC High-Power Constant Voltage Constant Current Boost Power Module LED Boost Driver Laptop Battery Charging
- Input Voltage: DC 8.5V–50V
- Max Input Current: 15A (Heat dissipation required above 8A)
- Output Voltage: 10V–60V Adjustable (Default 19V)
- Fixed Output Option: 12–80V
- Output Current: 0.2–12A (Max 12A)
SKU: Not Found
Brand: Generic
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The 400W DC-DC High-Power Boost Module is a non-isolated step-up (BOOST) converter designed for constant voltage and constant current applications. It supports a wide input range of DC 8.5V–50V and delivers an adjustable output voltage from 10V–60V with up to 12A output current. With up to 96% conversion efficiency and 150KHz working frequency, it ensures stable and reliable performance. Ideal for LED drivers, laptop battery charging, and high-power DIY projects, the module features overcurrent protection and multiple mounting holes for secure installation. Proper heat dissipation is recommended for high current operation.
Features:
- High power output up to 400W
- Adjustable constant voltage & current
- Wide 8.5V–50V input range
- 10V–60V adjustable output
- Up to 96% high efficiency
- Built-in overcurrent protection
Package Includes:
1 x 400W DC-DC High-Power Constant Voltage Constant Current Boost Power Module LED Boost Driver Laptop Battery Charging
Technical Specifications
| Efficiency | Up to 96% |
|---|---|
| Fixed Output Option | 12–80V |
| Height (mm) | 28 |
| Input Current (A) | 15A max (Heat dissipation required above 8A) |
| Input Voltage (V) | DC 8.5V–50V |
| Length (mm) | 65 |
| Operating Frequency (MHz) | 0.15 |
| Operating Temperature (°C) | -40°C to +85°C |
| Output Current (A) | 0.2–12A (Max 12A) |
| Output Power Max | Up to 400W |
| Output Voltage | 10V–60V Adjustable (Default 19V) |
| Protection | Input Overcurrent Protection |
| Shipping Dimensions | 16 × 12 × 4 cm |
| Shipping Weight | 0.067 kg |
| Weight (g) | 64 |
| Width (mm) | 48 |
