Time Delay Relay Modules

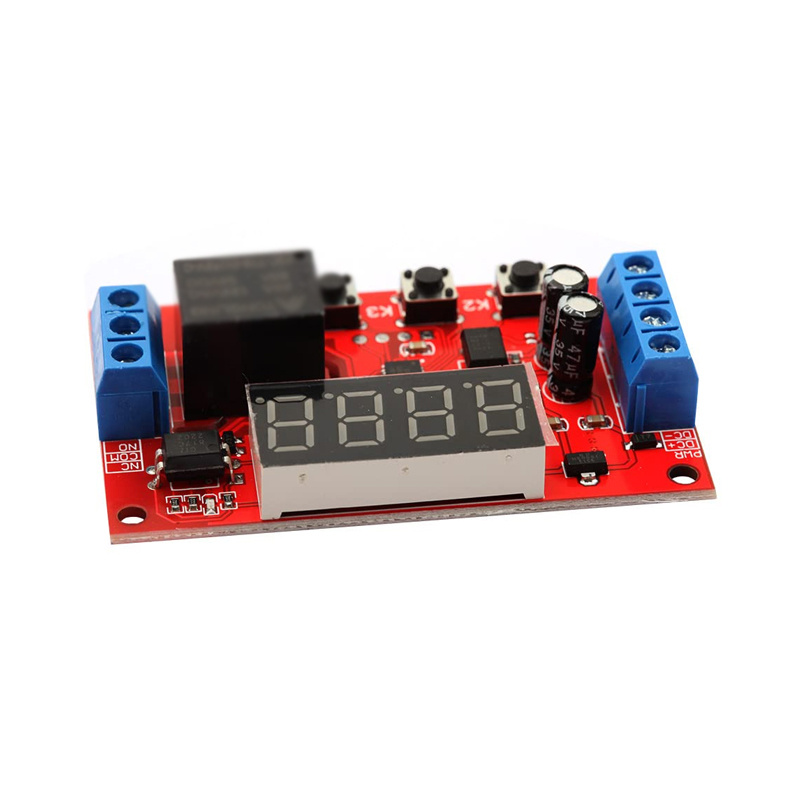

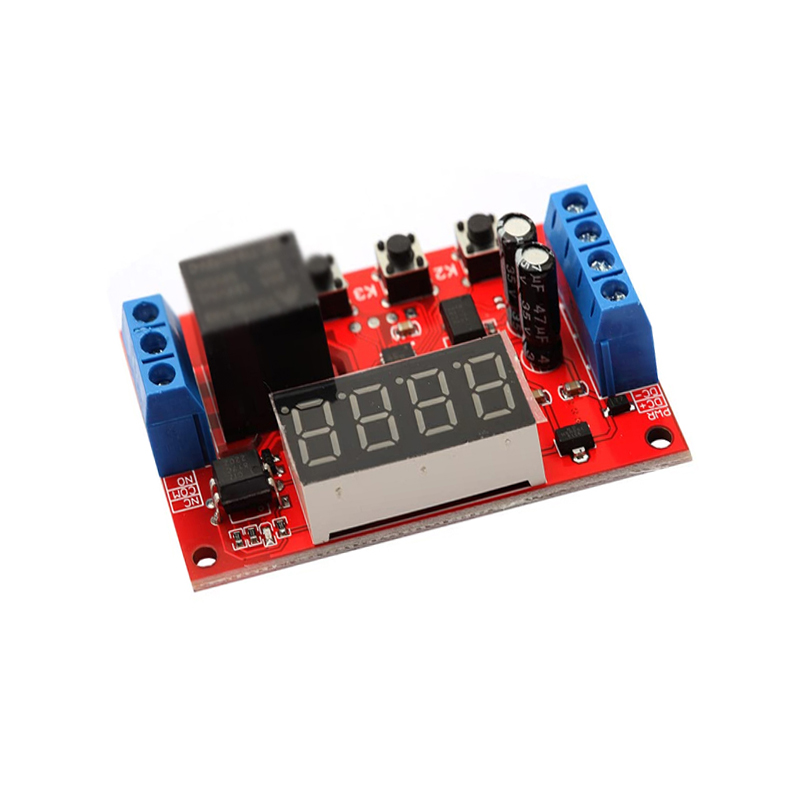

1 Channel 12V Adjustable Time Delay Relay Module 32 Modes LED Digital Timming Trigger Timer Control Switch
- Operating Voltage: 12V DC
- Output Type: Relay – 10A/250V AC, 10A/30V DC
- Time Delay Range: 0.1s – 9999 minutes
- Timing Modes: 32 Modes
- Channel Count: 1 independent relay outputs
SKU: Not Found
Brand: Generic
Out of stock
₹282.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The Multifunctional Delay Relay is a versatile timing control solution designed for precision automation. With 32 selectable timing modes, it allows you to set delays with high accuracy for various applications, including industrial automation, electronics projects, and DIY control systems. Its LED digital display ensures easy monitoring and adjustments, while the compact design allows seamless integration into panels and devices.
Features:
- 32 adjustable timing modes for diverse applications
- LED digital display for clear status and timing visualization
- High precision timing with accuracy up to 0.01 seconds
- Wide timing range: 0.1 second to 999 minutes
- Easy to install and compatible with 12V DC systems
Package Includes:
1 x 1 Channel 12V Adjustable Time Delay Relay Module 32 Modes LED Digital Timming Trigger Timer Control Switch
Technical Specifications
| Application | Automation, DIY Projects, Lighting, Motors & Pumps, Control Panels |
|---|---|
| Channel | 1 |
| Current Capacity (A) | 10 |
| Display Type | LED Digital Display |
| Height (mm) | 15 |
| Item Type | Time Delay Relay Module |
| Length (mm) | 65 |
| Operating Voltage | 12V DC |
| Protection Features | Epoxy Protected |
| Relay | Solid State Relay |
| Shipping Dimensions | 12 × 10 × 3 cm |
| Shipping Weight | 0.04 kg |
| Timing mode | 32 Modes |
| Trigger Type | Pulse / Cycle Trigger |
| Weight (g) | 25 |
| Width (mm) | 40 |
