Product Description
AZDM01 has a built-in photoelectric sensor. The light-emitting element generates an infrared light source. The light passes through the transparent plastic casing and the measuring tank. When the liquid with different turbidity levels flows through the measuring tank, the degree of blocking of the light is different, and the intensity of the transmitted light is different, and the photosensitive element will receive it. The change in light intensity is converted into an analogue voltage signal, and the turbidity of the liquid is calculated by detecting the change in the voltage signal at the output terminal.
Features:
- High reliability
- Quick response
- Good stability
- Waterproof design
- long life
- Output mode analog signal
Package Includes:

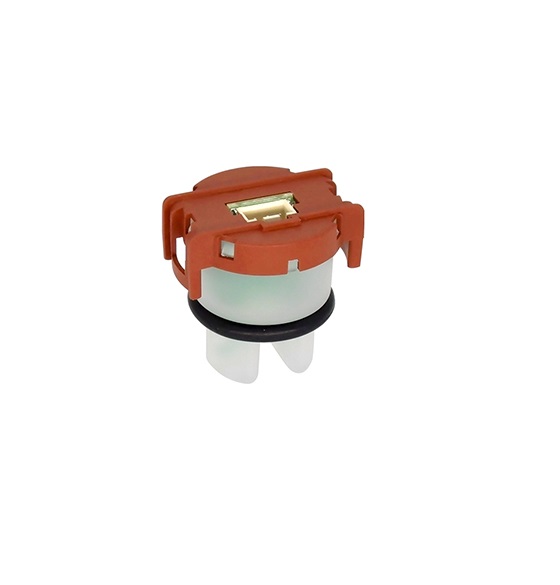

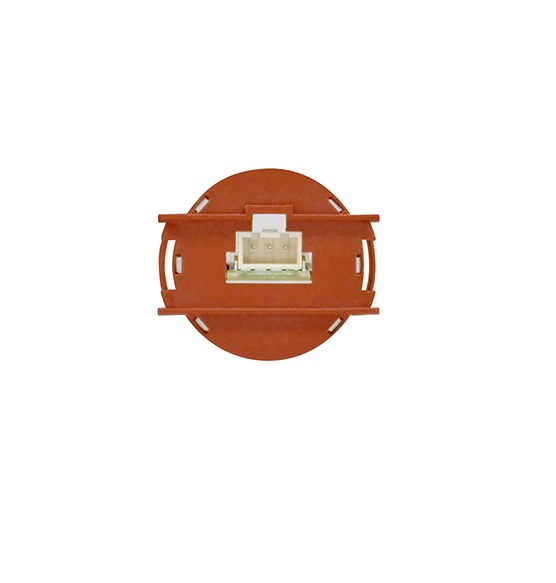

1 x ASAIR Turbidity Sensor Model AZDM01
Technical Specifications
| Current (mA) | Suply Current: 20mA Typical supply current: 25mA Maximum power supply current : 50mA |
|---|---|
| Model | Turbidity Sensor |
| Model Name | AZDM01 |
| Operating humidity | 0 ～95%RH |
| Operating Temperature (°C) | 4 ℃～85 ℃ |
| Operating Voltage (VDC) | 5 |
| Sampling period(s) | >=100ms/ time |
| Shipping Dimensions | 7 × 6 × 3 cm |
| Shipping Weight | 0.01 kg |
| Warm-Up Time | >=100ms |
