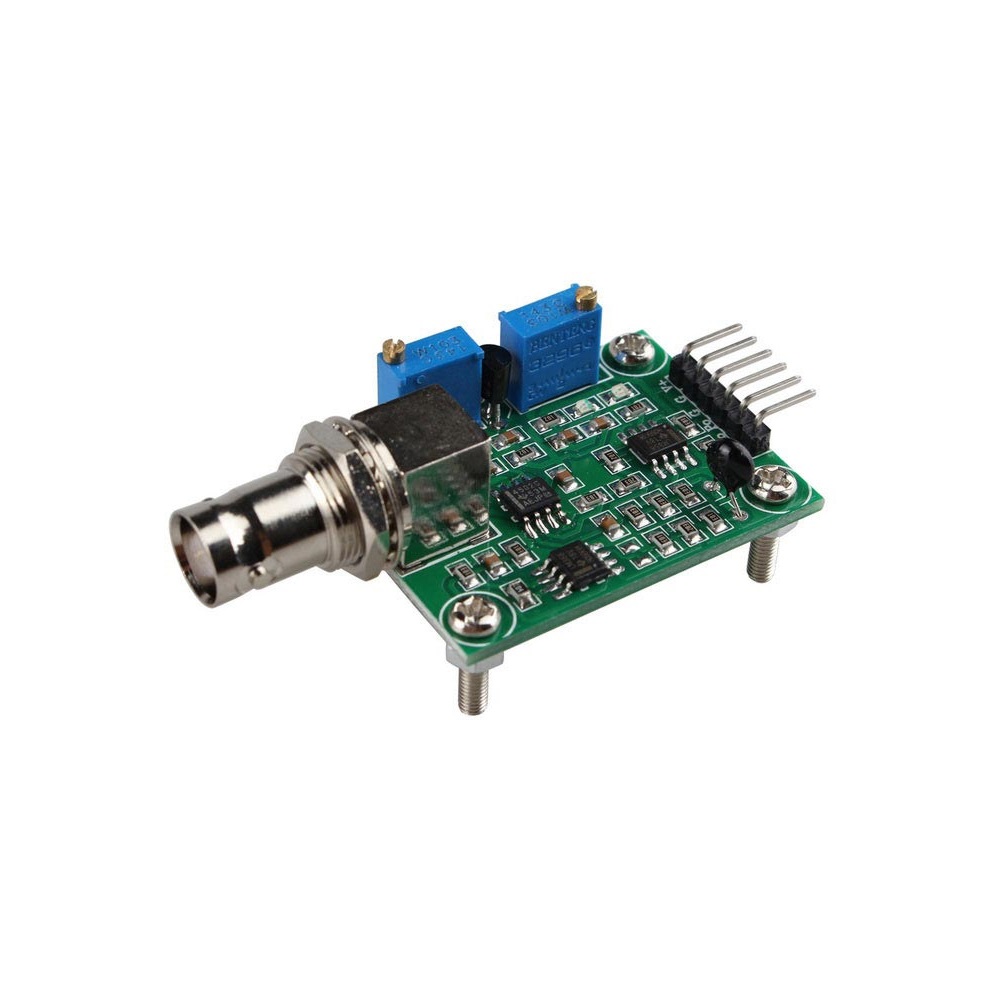

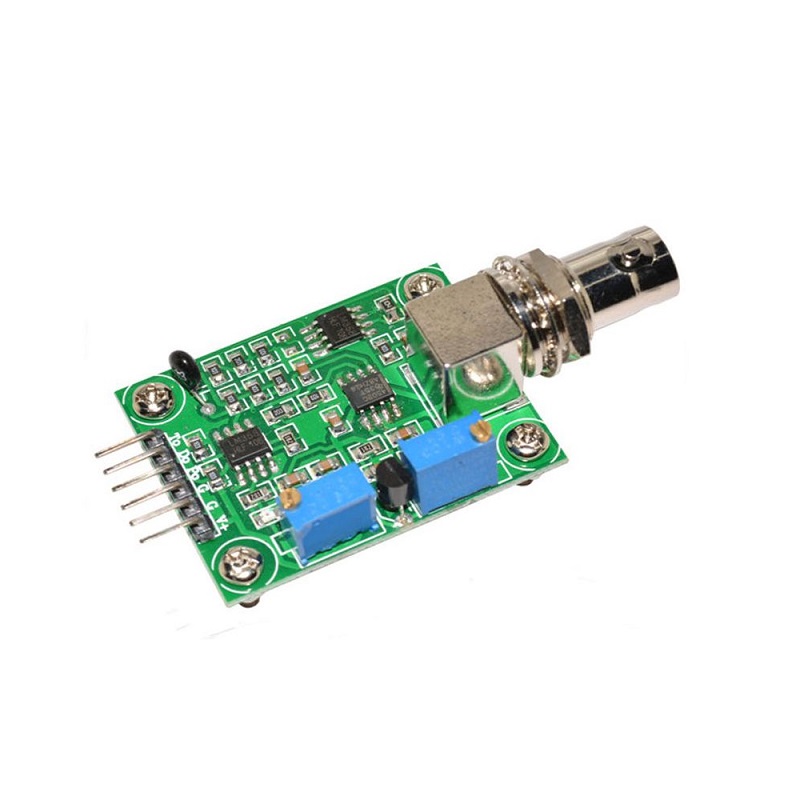

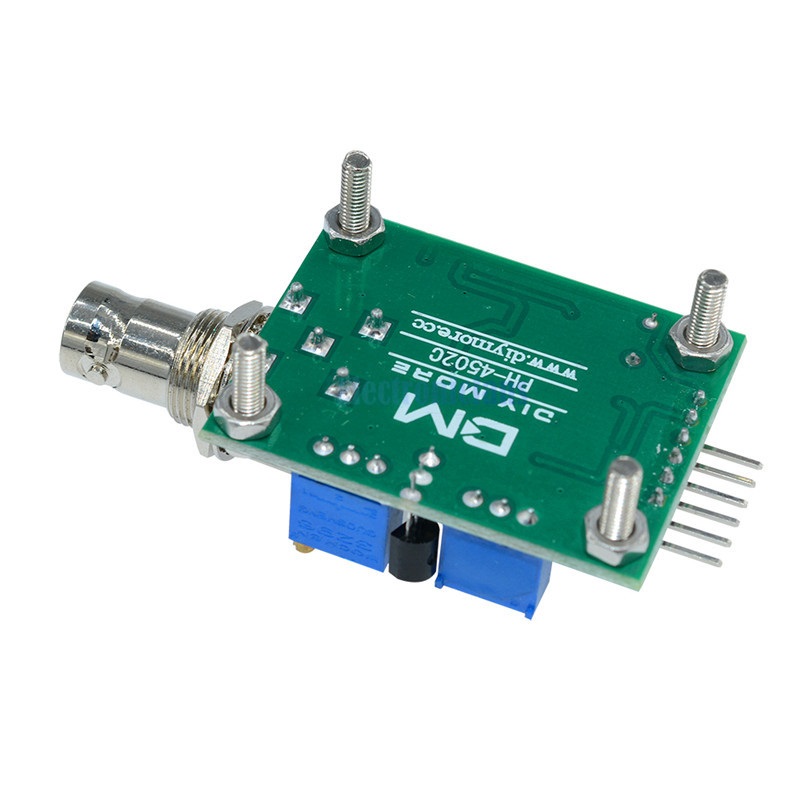

Liquid pH Value Detection Sensor for Arduino
- Heating voltage: 5±0.2V
- Working current: 5-10mA
- The detection concentration range: PH0-14
- The detection range of temperature: 0-60 centigrade
- The response time: ≤ 5S
- Stability time: ≤ 60S
- Power consumption: ≤ 0.5W
SKU: Not Found
Brand: Unknown Brand
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
If you are want to Build a circuit where you can detect the ph factor of liquid, whether it is basic or alkaline. You can Buy this Sensor From Robu.in at a Reasonable Price.
This is a Liquid pH Value Detection Sensor for Arduino. This is used in water quality testing and Aquaculture
The pH stands for the power of hydrogen, which is a measurement of the hydrogen ion concentration in the body. The total pH scale ranges from 1 to 14, with 7 considered to be neutral. A pH less than 7 is said to be acidic and solutions with a pH greater than 7 are basic or alkaline.
The PH electrode has a single cylinder that allows direct connection to the input terminal of a pH meter, controller, or any pH device which has a BNC input terminal. The pH electrode probe is accurate and reliable that can give almost instantaneous readings.
Connection Diagram of Liquid pH Value Detection Sensor for Arduino:
Package Includes :
1 x Liquid pH Value Detection Sensor For Arduino
1 x set of Mounting Accessories
Technical Specifications
| Detection range | Temperature: 0 to 60°C |
|---|---|
| Height (mm) | 16 |
| Model | pH Sensor |
| Operating humidity | 95%RH |
| Operating Temperature (°C) | -10 to 50 |
| PCB Size ( L x W ) mm | 42 x 32 |
| Power Consumption (W) | ≤0.5 |
| Response Time(s) | ≤5 |
| Shipping Dimensions | 8 × 4 × 2.5 cm |
| Shipping Weight | 0.022 kg |
| Weight (g) | 20 |
