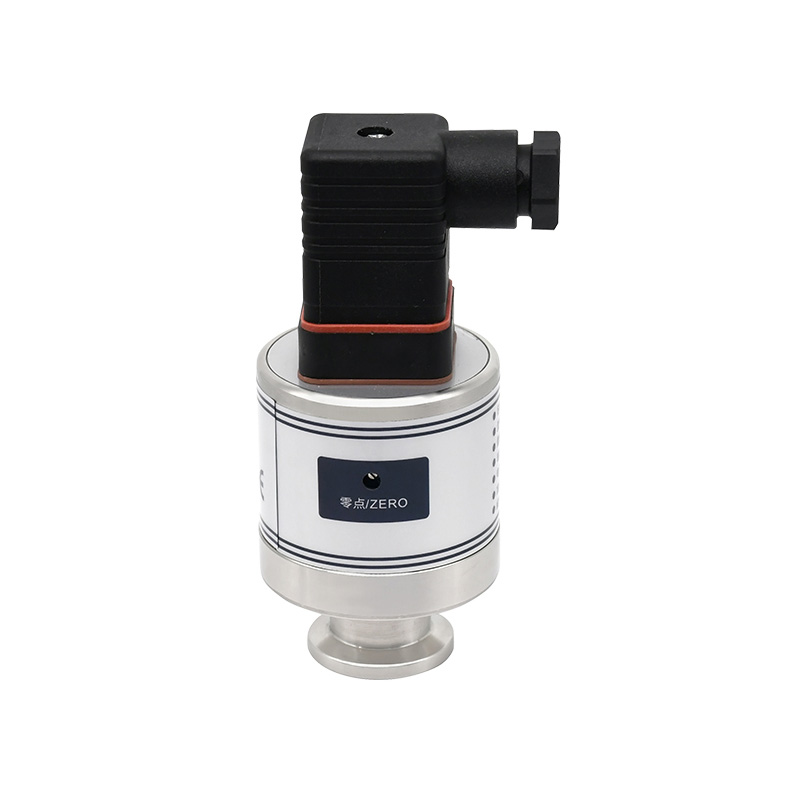

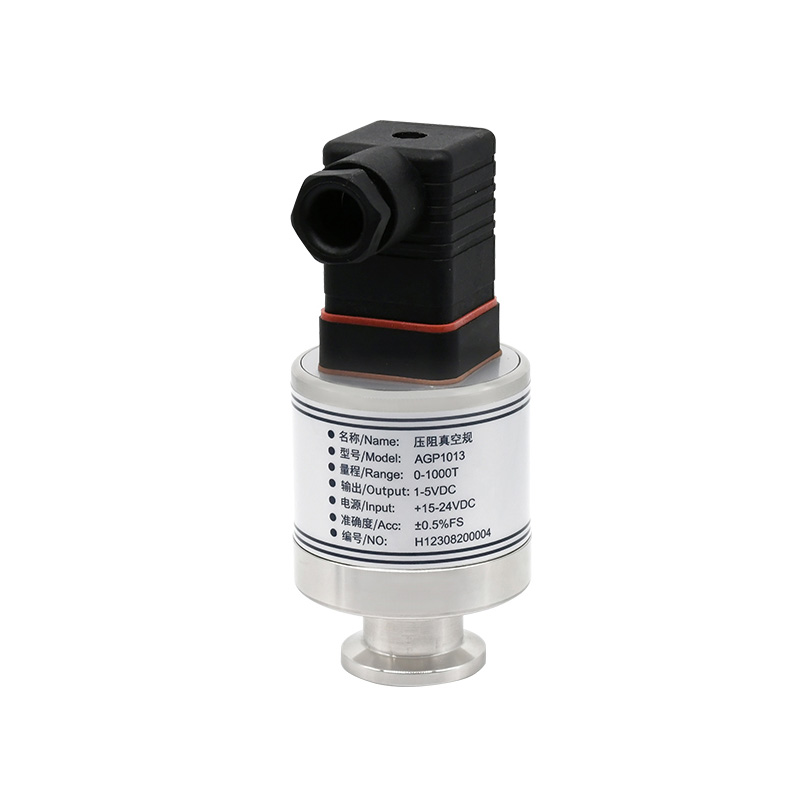

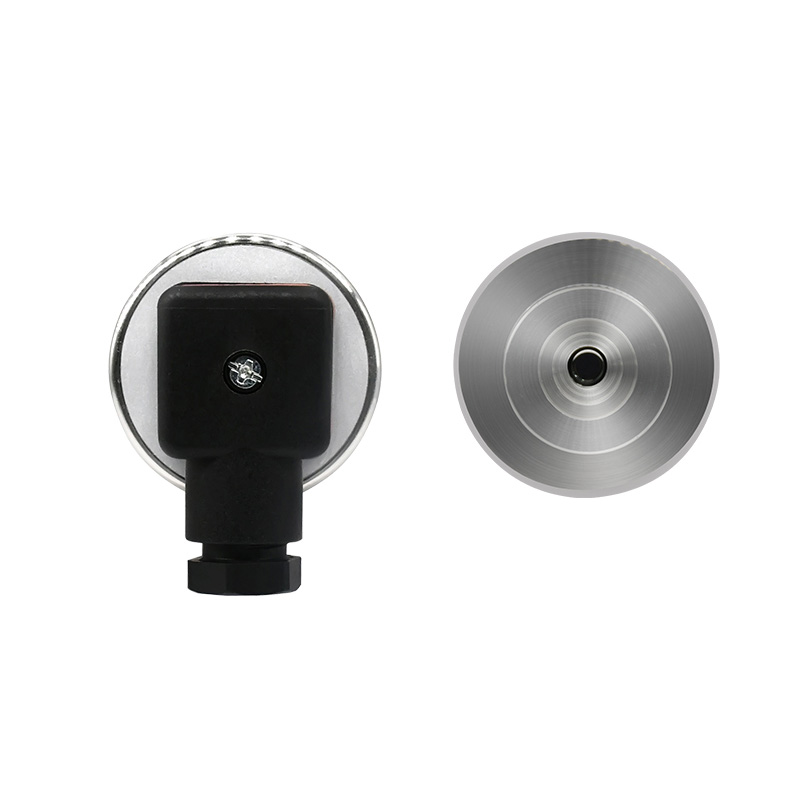

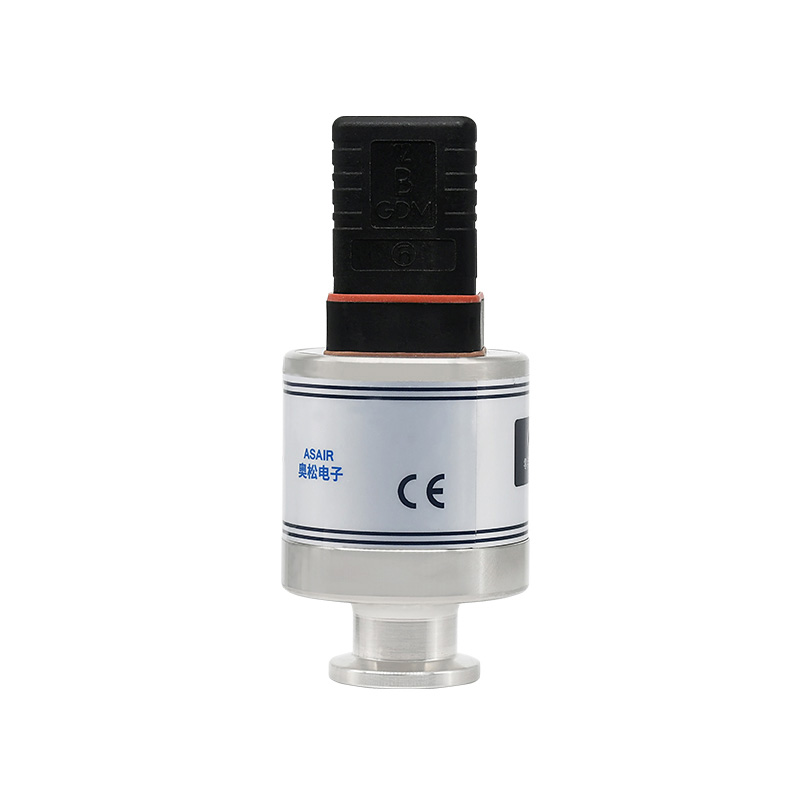

Asair AGP1013 Piezoresistive Vacuum Gauge, 0~1000T
- Model: AGP1013 Series
- Pressure Range: Measures 0 to 1000 Torr.
- Accuracy: ±0.5% FS for reliable readings.
- Power Supply: Operates on 15 to 24 VDC.
- Output: 1 to 5 VDC analog output signal.
SKU: Not Found
Brand: ASAIR
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
AGP1013 series adopts the diffused silicon oil-filled sensor core with high precision and high stability, and the integrated module design of electronic controller and sensor. With the piezoresistive effect of semiconductor materials and good elastic deformation performance, exquisite packaging technology and perfect equipment technology, to ensure the quality and performance of the product.
AGP1013 series provides analog voltage output with high accuracy, high stability, strong corrosion resistance, good repeatability, light weight and low maintenance costs. Before leaving the factory, the precision, repeatability and response time of AGP1013 series are strictly calibrated.
Features:
- Pressure Range: Measures from 0 to 1000 Torr.
- Accuracy: Offers ±0.5% FS precision.
- Output Signal: Provides a 1 to 5 VDC analog output.
- Response Time: Fast response time of 50 ms.
- Load Resistance: Compatible with 10 kΩ load resistance.
Package includes:
1 x Asair AGP1013 Piezoresistive Vacuum Gauge, 0~1000T
Technical Specifications
| Accuracy | ±0.5% FS |
|---|---|
| Connector Type | KF16 |
| Load Resistance | 10 kΩ |
| Operating Temperature (°C) | 5 to 45°C |
| Power Supply | 9 ~ 28 VDC |
| Pressure | 0 to 1000 Torr |
| Response Time(s) | 50 ms |
| Shell Material | 316 Stainless Steel |
| Shipping Dimensions | 20 × 13 × 10 cm |
| Shipping Weight | 0.32 kg |
