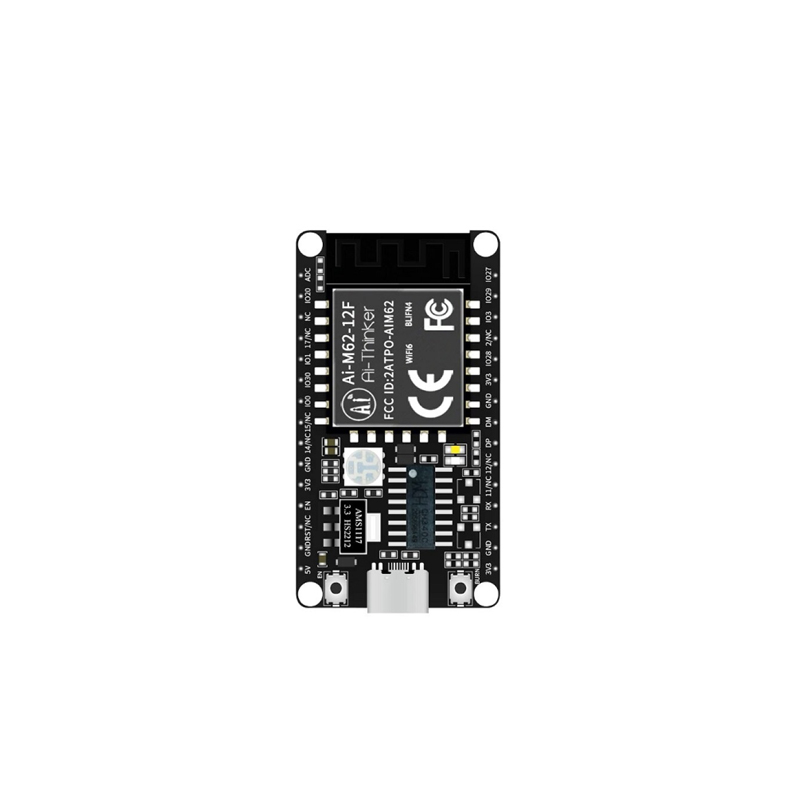

The Ai-M62-12F-Kit is a development board designed for the Ai-M62-12F module. Ai-M62-12F is a Wi-Fi 6 + BLE 5.3 module developed by Shenzhen Ai-Thinker TechnologyCo., Ltd. The module is equipped with a BL616 chip as the core processor, supports Wi-Fi 802.11b/g/n/ax protocol and BLE protocol, and supports Thread protocol. The BL616 system contains a low-power 32-bit RISC-V CPU with floating point cells, DSP units, cache, and memory, up to 320M.

Ai-M62-12F module has rich peripheral interfaces, including Audio Codec, USB2.0, SDU, SD/ MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, and GPIO. It can be widely used in audio and video multimedia, the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes, and other fields. Ai-M62-12F module Sec Eng module supports AES / SHA / PKA / TRNG and other functions, supports mirror encryption and signature startup, to meet the needs of various applications in the field of the Internet of Things

Features:

1. Support BLE5.3
2. Support Thread
3. Support Wi-Fi/BLE/Thread coexistence
4. Wi-Fi security support WPS/WEP/WPA/WPA2/WPA3
5. Support 20/40MHz bandwidth ，1T1R，speed up to 229.4 Mbps
6. Support STA、SoftAP、STA+SoftAP and sniffer mode
7. A 32-bit RISC-VCPU with FPU and DSP, with a maximum main frequency of upto320M
8. 532KB SRAM，128KB ROM，4Kb eFuse

Package Includes:

1 x Ai Thinker Ai-M62-12F-Kit
