Optocoupler / Light‑Coupled Relay Modules

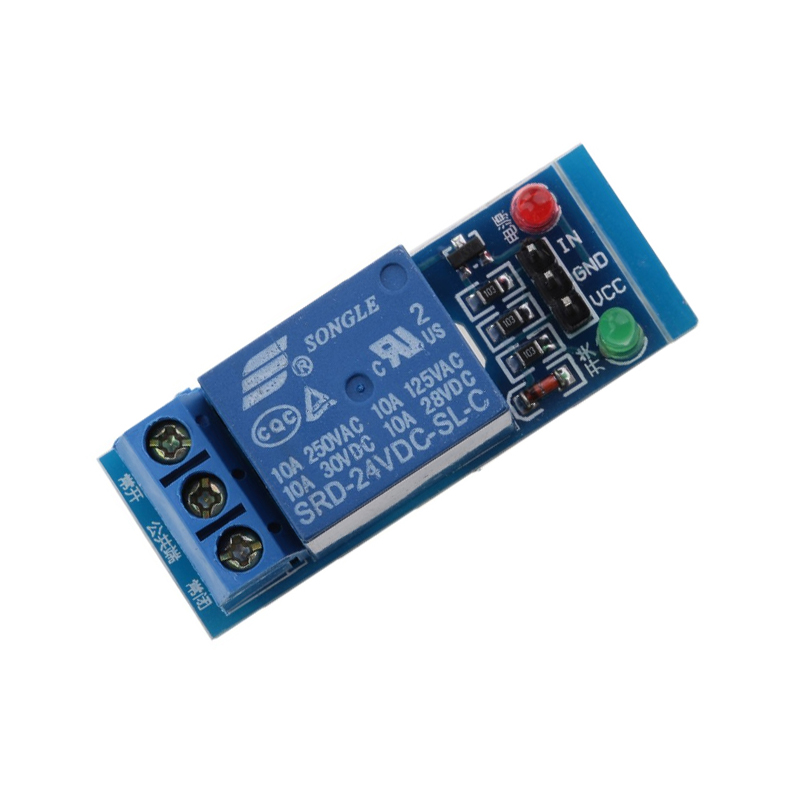

1 Channel 24V Relay Module Low Level
- Operating Voltage: 24VDC
- Trigger Signal: Low-level (24V )
- Maximum Switching Current: 10A
- Maximum Switching Voltage: 250V AC / 30V DC
- Isolation: Optocoupler-based input protection
SKU: Not Found
Brand: Generic
Out of stock
₹55.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The 1 Channel 24V Relay Module is designed for easy integration with microcontrollers, PLCs, and automation projects. Featuring a low-level trigger, this relay provides reliable switching for high-current loads up to 10A. Compact and robust, it is ideal for home automation, industrial controls, and DIY electronics projects. With opto-isolated input, it ensures safe operation by protecting your control circuits from voltage spikes.
Features:
- Single channel relay module with low-level trigger
- Opto-isolated input for enhanced safety
- Supports AC and DC loads up to 10A
- LED indicator for operational status
- Compact design suitable for embedded and automation projects
Package Includes:
1 x 1 Channel 24V Relay Module Low Level
Technical Specifications
| Height (mm) | 18 |
|---|---|
| Item Type | Relay Module |
| Length (mm) | 46 |
| Max. Switching Current(A) | 10 |
| Max. Switching Voltage | 250V AC / 30V DC |
| No. of Channels | 1 |
| Operating Voltage (VDC) | 24 |
| Shipping Dimensions | 8 × 4 × 2 cm |
| Shipping Weight | 0.02 kg |
| Trigger Type | Low level |
| Weight (g) | 12 |
| Width (mm) | 18 |
