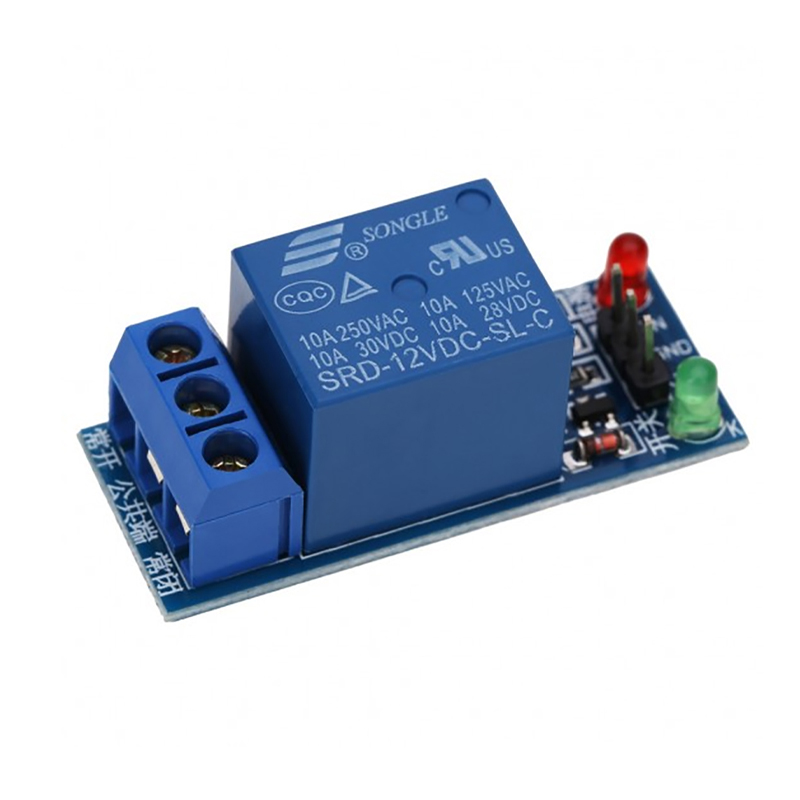

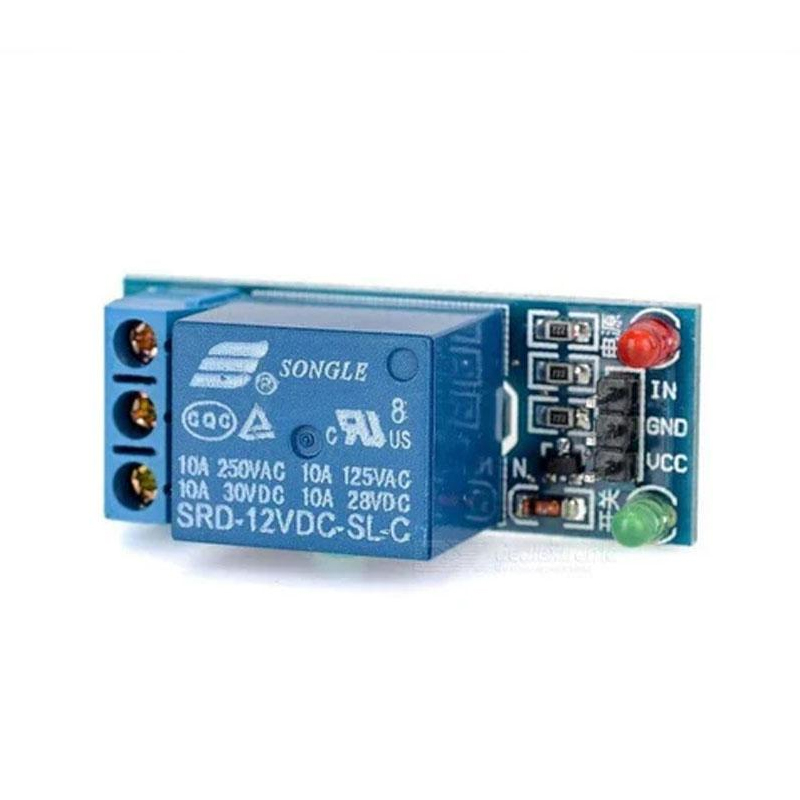

1 Channel 12V Relay Module Low Level
- Operating Voltage: 12V DC
- Trigger Type: Low-Level Trigger
- Contact Rating: 10A at 250VAC / 10A at 28VDC
- Relay Type: SPDT (Single Pole Double Throw)
- Control Signal Compatibility: 3.3V / 5V Logic Compatible
SKU: Not Found
Brand: Generic
Out of stock
₹55.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The 1 Channel 12V Relay Module (Low Level Trigger) is a compact and reliable switching solution designed for microcontroller-based projects such as Arduino, Raspberry Pi, ESP8266, ESP32, and other 5V/12V control systems. This SPDT (Single Pole Double Throw) relay module allows low-power control signals to safely switch high-power AC or DC loads.
With a switching capacity of up to 10A at 250VAC and 10A at 28VDC, it is ideal for controlling home appliances, lighting systems, motors, pumps, and automation devices. The onboard LED indicators provide clear visual feedback for power and relay status, making debugging and monitoring easy.
Features:
- Single Channel SPDT Relay Module
- Low-Level Trigger Control
- Supports High Power Loads (Up to 10A)
- Onboard Status LED Indicators
- Compatible with Arduino, Raspberry Pi & Other MCUs
- Screw Terminals for Secure Connections
- Optimum Isolation Between Control & Load
Package Includes:
1 x 1 Channel 12V Relay Module Low Level
Technical Specifications
| Contact Rating | 10A at 250VAC / 10A at 28VDC |
|---|---|
| Height (mm) | 18 |
| Item Type | Relay Module |
| Length (mm) | 54 |
| No. of Channels | 1 |
| Operating Voltage (V) | 12 DC |
| Shipping Dimensions | 8 × 4 × 1 cm |
| Shipping Weight | 0.025 kg |
| Trigger Type | Low-Level Trigger |
| Weight (g) | 19 |
| Width (mm) | 33 |
