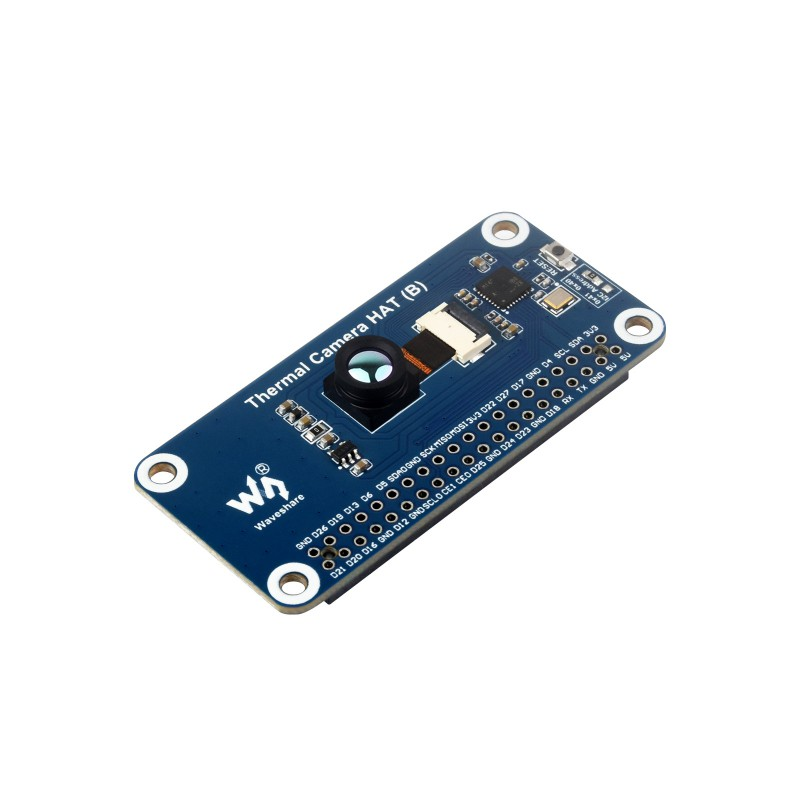

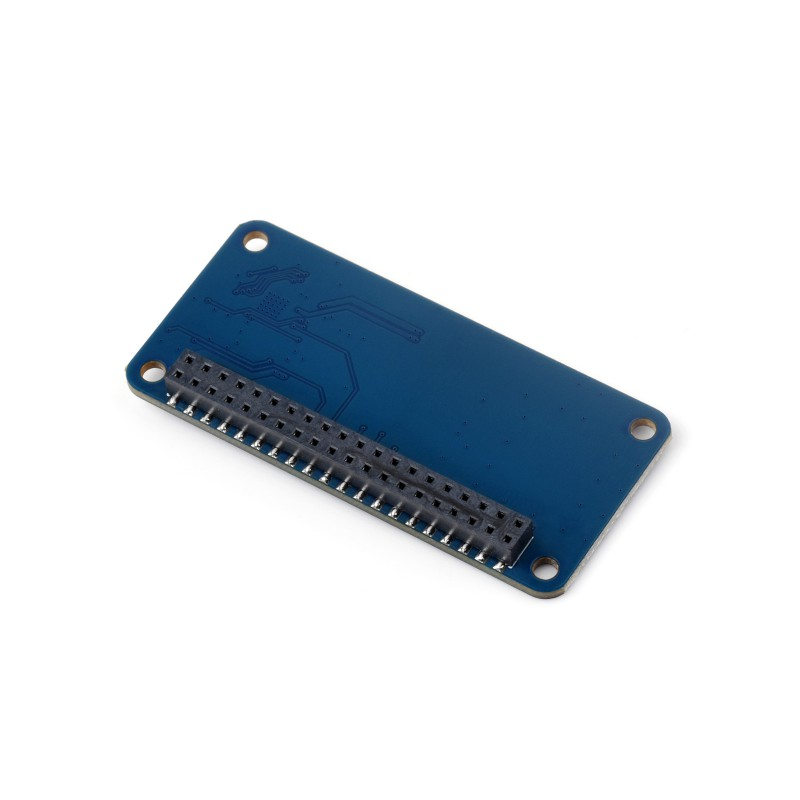

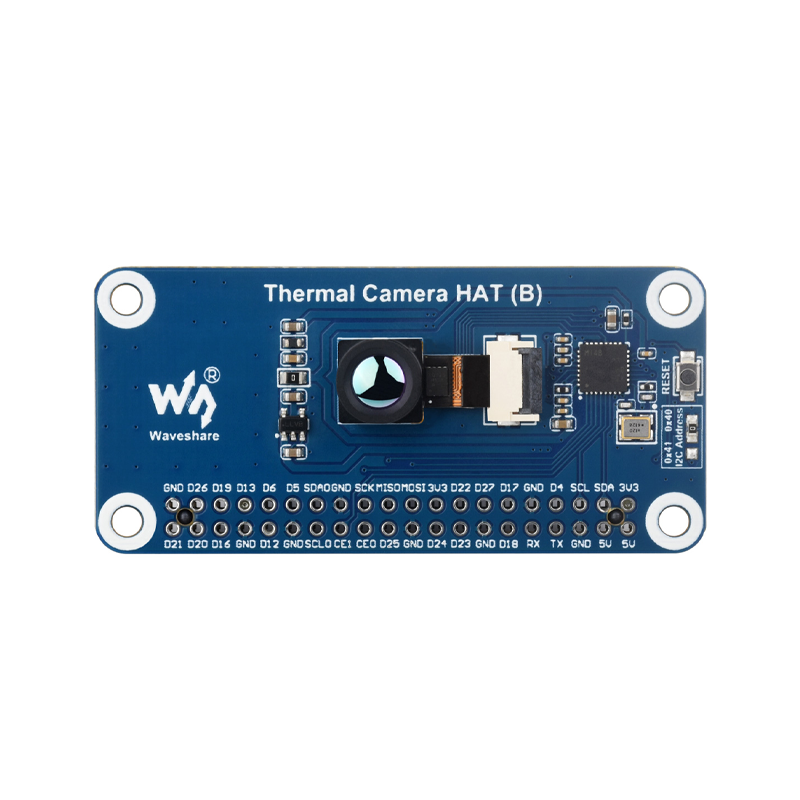

Waveshare Long-wave IR Thermal Imaging Camera HAT (B) For Raspberry Pi, Options For 45° FOV, Raspberry Pi IR Camera, 80×62 Pixels, Standard 40PIN GPIO Header
- Power Supply: 5V | Current: 20mA
- Temperature Range: -40℃ to 400℃
- Accuracy: ±1.5℃ (ambient 10~70℃)
- Refresh Rate: Up to 25 FPS
- Wavelength Range: 8~14μm
SKU: Not Found
Brand: WAVESHARE
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The Waveshare Long-wave IR Thermal Imaging Camera HAT (B) is a compact, plug-and-play thermal sensor designed for Raspberry Pi. Featuring an 80×62 pixel array and advanced hybrid sensing technology, it captures real-time thermal data with high accuracy. Choose between 45° or 90° field-of-view options based on your application needs. With shutterless operation, it delivers smooth thermal video up to 25 FPS.
Ideal for smart homes, industrial monitoring, motion detection, and health care applications, this module is easy to integrate via the standard 40PIN GPIO header. A reliable and efficient tool for non-contact temperature measurement and analysis.
Application Scenarios
Features:
- 80×62 thermal resolution with hybrid sensor tech (microbolometer + thermopile)
- Shutterless design for uninterrupted thermal video streaming
- Plug-and-play with standard 40PIN GPIO for Raspberry Pi
- Small 9×9mm lens module with FPC connection for compact projects
- Accurate temperature readings with calibrated pixels
Package Includes:
1 x Waveshare Long-wave IR Thermal Imaging Camera HAT (B) For Raspberry Pi
1 x 20 PIN female header
1 x Screws pack
Technical Specifications
| Camera Type | Long-wave Infrared (LWIR) Thermal Camera |
|---|---|
| Chipset | Hybrid Microbolometer + Thermopile Sensor |
| Color | Blue PCB |
| Distortion | Minimal (optimized internal filter & processing) |
| Height (mm) | 15 |
| Interface Type | Standard 40PIN GPIO Header |
| Item Type | Thermal Imaging Camera HAT |
| Length (mm) | 65 |
| Material | PCB + Electronic Components |
| Max. Operating Current (mA) | ~20 |
| Model | Thermal-45 Camera HAT (B) (45° FOV) |
| Operating Temperature (°C) | -40 to 85 |
| Operating Voltage (V) | 05 |
| Resolution | 80 × 62 pixels |
| Shipping Dimensions | 10 × 5 × 5 cm |
| Shipping Weight | 0.15 kg |
| Weight (g) | 10. |
| Width (mm) | 30 |
