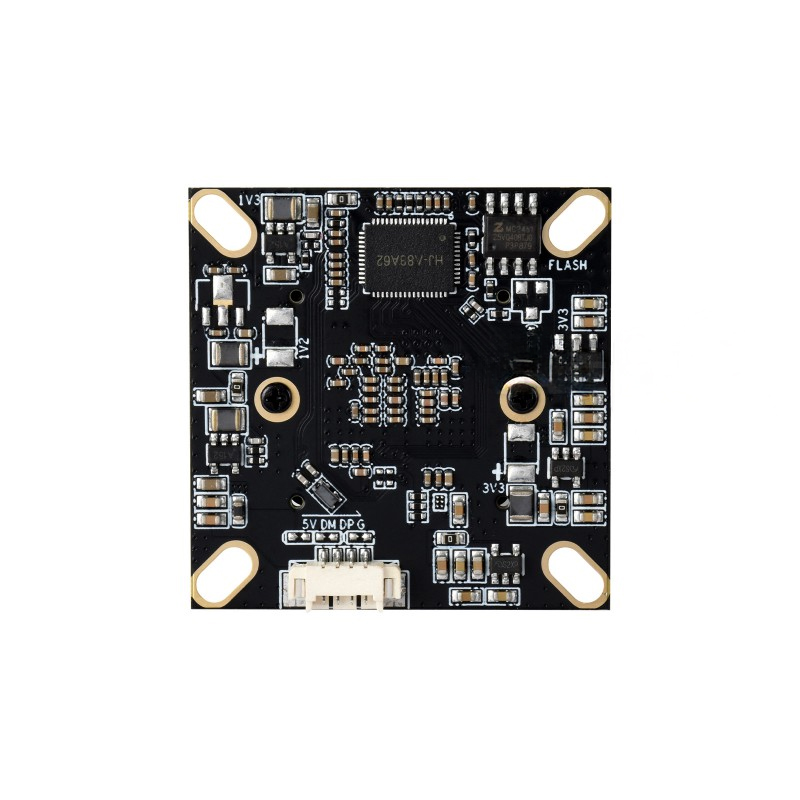

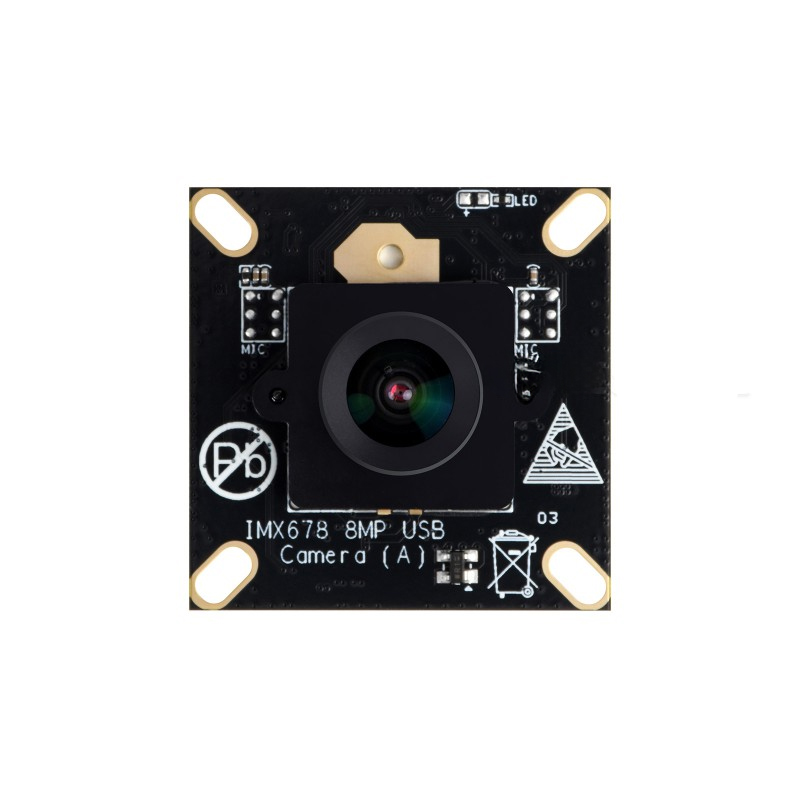

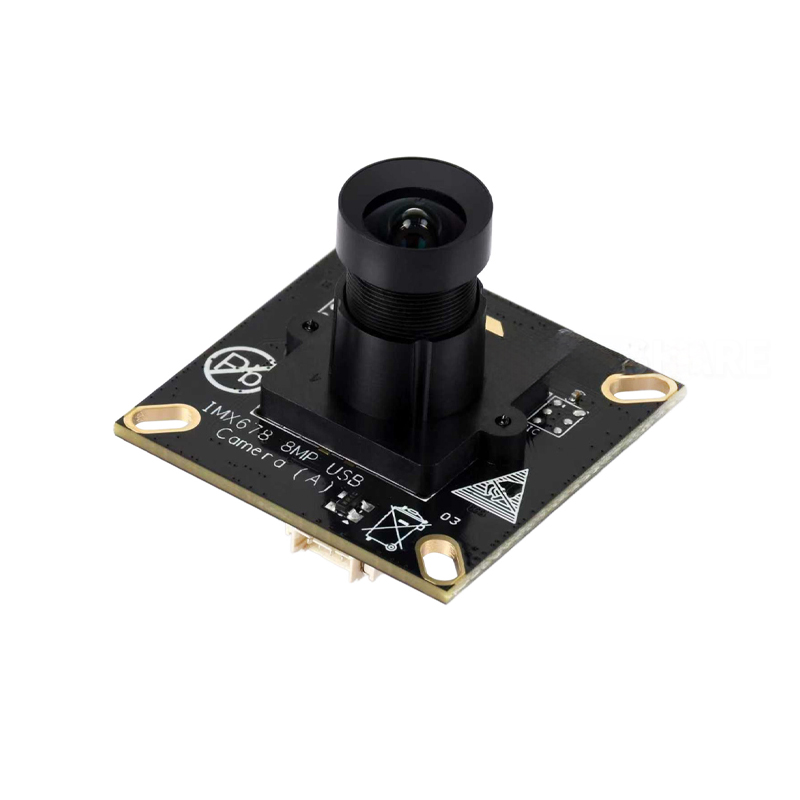

Waveshare IMX678 8MP USB2.0 Camera Module
- Sensor Size: 1/1.8″ with 4.2mm focal length
- Video Support: Up to 3840×2160 @30FPS (MJPG)
- IR Filter: 650nm filter for natural color capture
- Power: 5V ±5%, approx. 250mA
SKU: Not Found
Brand: WAVESHARE
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The Waveshare IMX678 8MP USB2.0 Camera Module delivers crisp, high-resolution imaging with exceptional low-light performance, making it ideal for industrial vision, AI projects, security applications, and embedded systems. Powered by Sony’s IMX678 sensor, it captures detailed 4K images with minimal distortion and consistent clarity. Its plug-and-play USB 2.0 interface ensures effortless integration with PCs, smart devices, and various controllers—no drivers needed. The fixed-focus M12 lens provides a wide 93° FOV, suitable for close-range as well as general-purpose monitoring. With robust build quality and reliable performance, this compact camera module is an excellent choice for developers and professionals.
Features:
- 8MP Sony IMX678 sensor for ultra-clear imaging
- Excellent low-light sensitivity for dark environments
- Wide 93° distortion-controlled M12 lens
- Plug-and-play USB 2.0 connectivity
- Supports MJPG & YUY2 output formats
- Fixed-focus design for stable, sharp visuals
- Supports up to 4K 30FPS MJPG recording
Package Includes:
1 x Waveshare IMX678 8MP USB2.0 Camera Module
1 x USB Type-A to MX1.25 4-pin cable (1.5 m)
Technical Specifications
| Field of View (FOV) | 55° (V), 86° (H), 93° (D) |
|---|---|
| Focal Length (mm) | 4.2 |
| Height (mm) | 24 |
| Interface | USB 2.0 |
| Item Type | USB Camera Module |
| Length (mm) | 38 |
| Model | IMX678 |
| Operating Voltage (V) | 05 |
| Photo resolution | 3840 × 2160 |
| Shipping Dimensions | 11 × 6 × 4 cm |
| Shipping Weight | 0.084 kg |
| Shutter | Rolling shutter |
| Weight (g) | 15 |
| Width (mm) | 38 |
