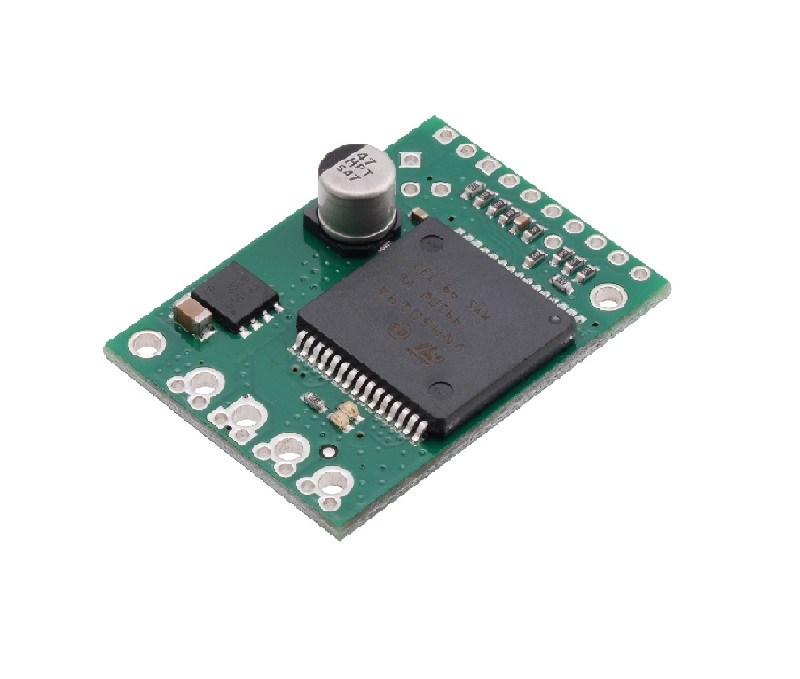

The VNH5019 Motor Driver Carrier is a high-performance module designed for controlling brushed DC motors. It operates within a voltage range of 5.5 to 24 V, delivering up to 12 A continuously and 30 A peak. The driver supports PWM operation up to 20 kHz, ensuring quieter motor performance and works with 2.5 to 5 V logic levels. Key features include current sensing output (~140 mV/A), and built-in protections against reverse-voltage, over-voltage, under-voltage, over-temperature, and over-current. Its compact design includes LED indicators for status monitoring, making it suitable for a variety of robotics and automation applications.

Features:

1. Voltage Range: Operates from 5.5 to 24 V.
2. Current Capacity: Delivers up to 12 A continuous and 30 A peak.
3. PWM Support: Capable of ultrasonic PWM operation up to 20 kHz for quieter motor control.
4. Logic Compatibility: Works with 2.5 to 5 V logic levels.
5. Current Sensing: Provides an output proportional to motor current (~140 mV/A).
6. LED Indicators: Motor status LEDs to monitor output behavior.
7. Compact Design: Fully populated board with essential components for easy integration.
8. Heat Management: Designed for effective thermal dissipation; can be enhanced with heatsinks.

Package include:

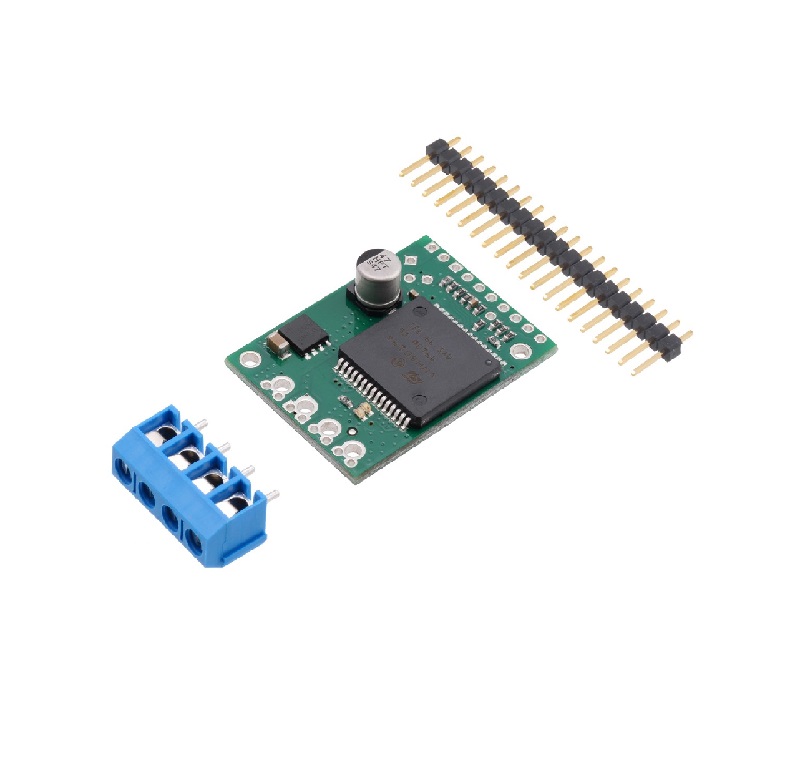

1 x VNH5019 Motor Driver Carrier
