The TPL5111DDCT from  is a low-power timer designed for time-sensitive applications with minimal power consumption. It features a programmable delay range, a manual reset, and a MOS-driver for controlling external devices. With an operating current of only 35 nA, this timer is ideal for battery-powered applications where energy efficiency is crucial. The one-shot feature ensures precise timing for single events, while the high and low-level output currents of 1 mA and -1 mA, respectively, allow for controlling external loads.This timer operates with a supply voltage range of 1.8V to 5.5V and is packaged in a compact SOT-23-6 form factor for easy integration in space-constrained applications. It has an operating temperature range of -40°C to +105°C

Note:

1. Product Images are shown for illustrative purposes only and may differ from the actual product.
2. For Technical Specifications about the IC go through the Datasheet in the Attachment section.


Features :

1. Low Power: 35 nA operating current for energy-efficient applications
2. MOS-Driver: Controls external devices directly
3. Manual Reset: Allows manual reset control
4. One-Shot Feature: Precise single-event timing
5. Programmable Delay Range: Customizable delay for flexible timing control
6. High/Low-Level Output: 1 mA (high), -1 mA (low) output current for external load control
7. Supply Voltage: 1.8V to 5.5V
8. Temperature Range: -40°C to +105°C

Package Includes:

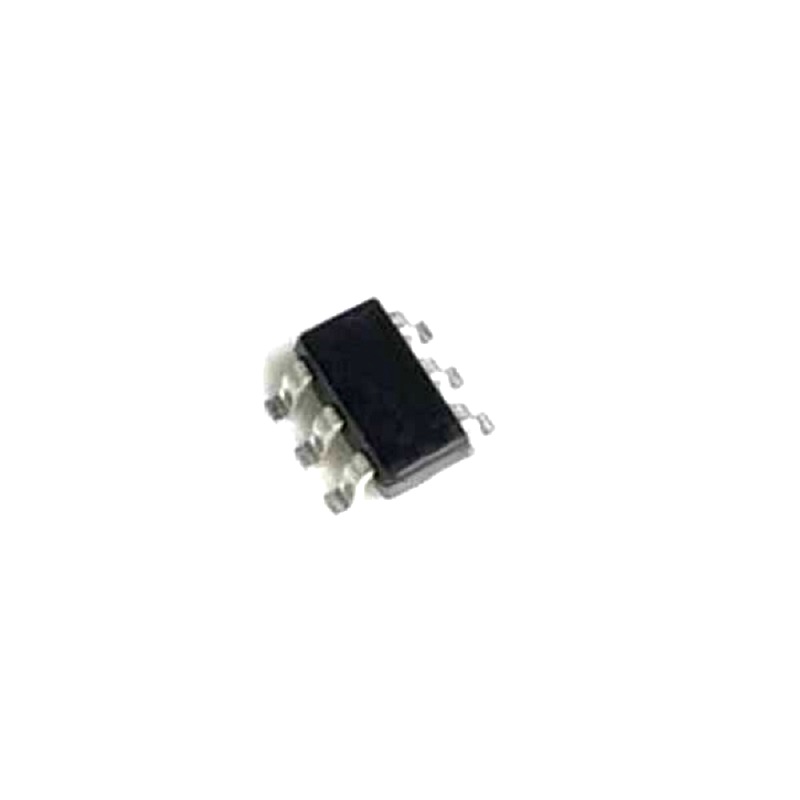

1 x TPL5111DDCT – 35nA Ultra-Low Power System Timer Power Gating duty-cycles IC SMD-6 Package
