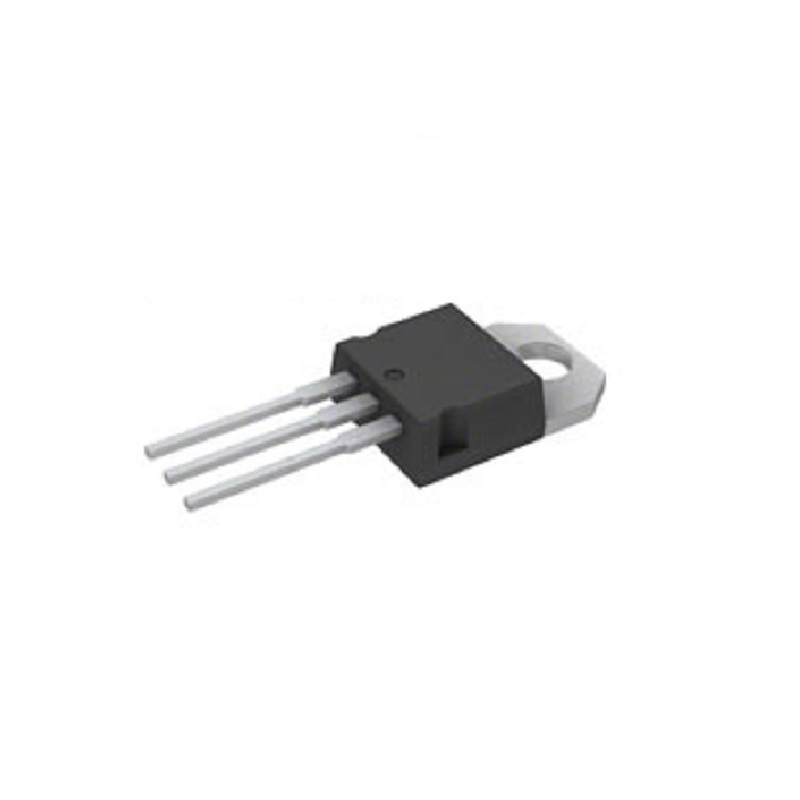

L7805CV STMicroelectronics Linear Voltage Regulator, 7805, Fixed, Positive, 10V To 35V In, 5V And 1.5A Out, TO-220-3
- No.of Pins: 3pins
- Max Output Current: 1.5A
- Max Operating Temperature: 125°C
SKU: Not Found
Brand: STMicroelectronics
Out of stock
₹21.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
This regulator can provide local on-card regulation, eliminating the distribution problems associated with single-point regulation. It employs internal current limiting, thermal shutdown, and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, it can deliver over 1A output current. Although designed primarily as a fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents
Applications:
- Power Management
Features:
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
- 2 % output voltage tolerance
Package Includes:
1 x L7805CV STMicroelectronics Linear Voltage Regulator, 7805, Fixed, Positive, 10V To 35V In, 5V And 1.5A Out, TO-220-3
Technical Specifications
| Case/Package | TO 220 |
|---|---|
| Fixed Output Voltage Nom | 5V |
| Manufacturer | STMicroelectronics |
| Max. Output Current (A) | 1.5A |
| No. of Pins | 3 |
| Operating Temperature (°C) | 0°C |
| Operating Temperature Max | 125°C |
| Output Type | Fixed |
| Output Voltage Nom | 5V |
| Shipping Dimensions | 1 × 1 × 1 cm |
| Shipping Weight | 0.001 kg |
