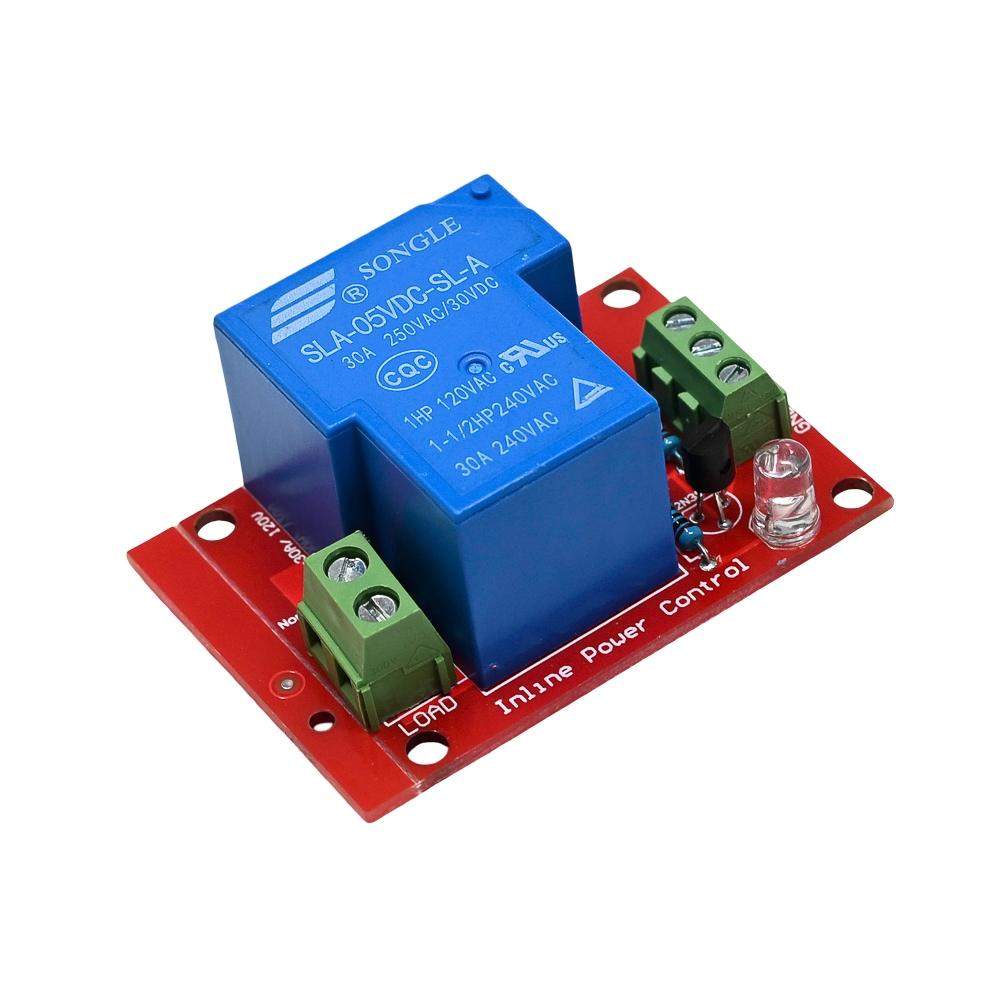

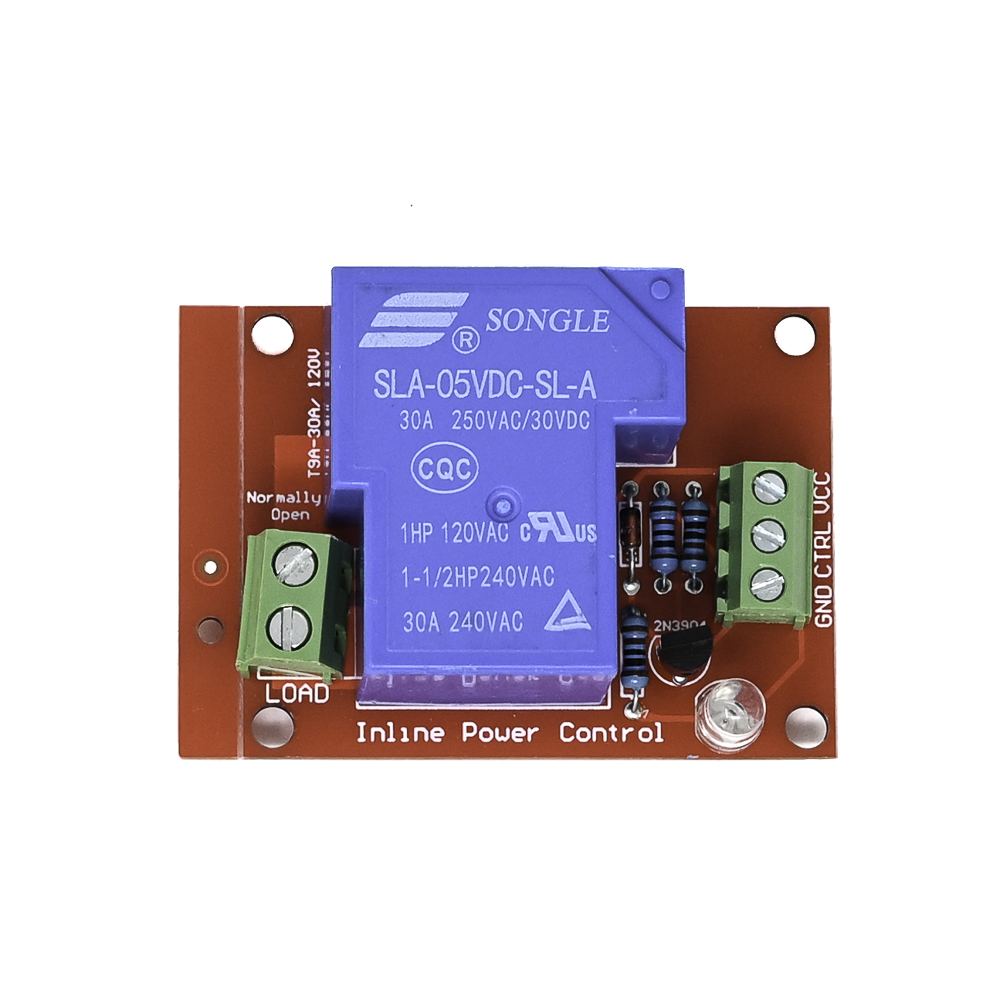

Songle 5V 30A Single-Channel Relay Module High-Level Trigger
- Coil Nominal Voltage: 5V DC
- Max Switching Voltage: 240V AC / 30V DC
- Max Switching Current: 30A
- Output Modes: Normally Open / Normally Closed
- Compatible with Arduino, AVR, PIC, ARM microcontrollers
SKU: Not Found
Brand: Songle
Out of stock
₹195.05
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The 5V 30A Single-Channel Relay Module from Songle is a reliable relay solution for high-current switching and automation applications.
Equipped with a mechanical relay and optical isolation, it ensures stable operation with excellent anti-interference performance. This module is compatible with Arduino, AVR, PIC, ARM, and other microcontrollers operating at 5V, making it perfect for DIY electronics and industrial control systems.
Its high-level trigger capability and power failure detection make it ideal for relay activation, automation projects, and safe switching of high-current devices.
Features:
- Single-channel 5V DC mechanical relay
- Maximum switching current: 30A
- High-level trigger control
- Optical isolation for anti-interference protection
- LED indicators for easy operational monitoring
Package Includes:
1 x Songle 5V 30A Single-Channel Relay Module
Technical Specifications
| Coil Voltage | ±18V DC (Coil Activation Voltage), ±2.4V DC (Coil Drop-Out Voltage), 5V DC (Coil Nominal Voltage) |
|---|---|
| Compatibility | Arduino, AVR, PIC, ARM microcontrollers |
| Height (mm) | 21.5 |
| Item Type | Relay Module |
| Length (mm) | 58.8 |
| Max. Switching Current(A) | 30 |
| Max. Switching Voltage | 240V AC / 30V DC |
| Model | Single-Channel Relay Module |
| Model No | SLA 24VD SL A |
| Output Mode | Normally Open / Normally Closed |
| Shipping Dimensions | 7 × 5 × 4 cm |
| Shipping Weight | 0.032 kg |
| Weight (g) | 31 |
| Width (mm) | 36.1 |
