Seeed Studio XIAO ESP32S3 Sense L76K GNSS Module
- Channels: 32 tracking ch/72 acquisition ch
- Type: Active Antenna
- Operating Frequency: 1559–1606MHz
- Coaxial Cable: RF1.13 Length=10cm
- Cable Connector: U.FL Plug RA
SKU: Not Found
Brand: Seeed Studio
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description

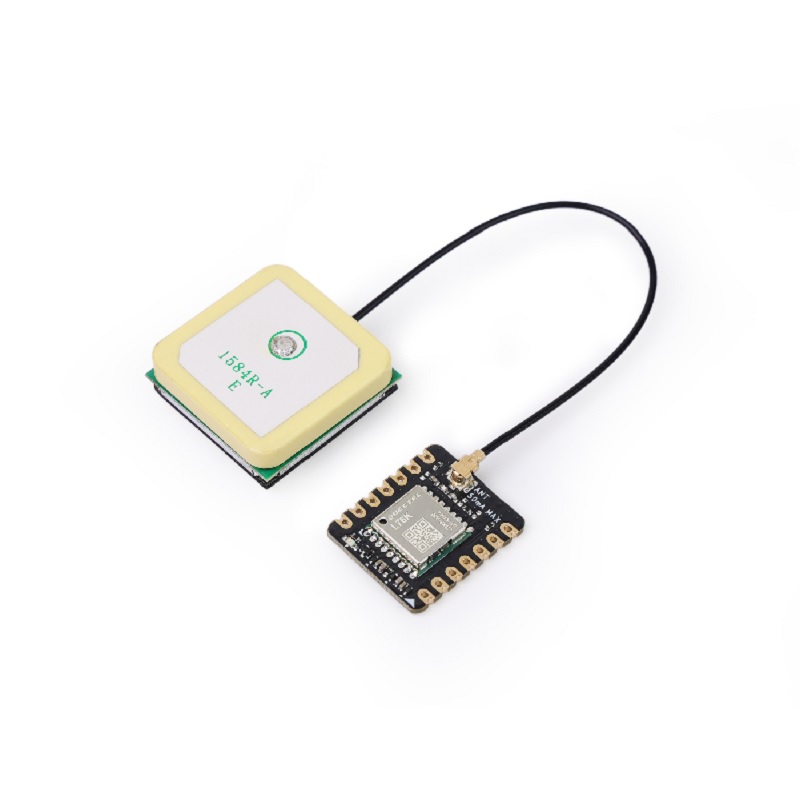

L76K GNSS Module for SeeedStudio XIAO is a Multi-GNSS (Global Navigation Satellite System) module compatible with all XIAO development boards, supports GPS, BeiDou (BDS), GLONASS and QZSS systems, allows multi-system combined or single-system independent positioning. It also supports AGNSS function, built-in low-noise amplifier and sound surface filter, and provides a good positioning experience of fast, accurate, high-performance.

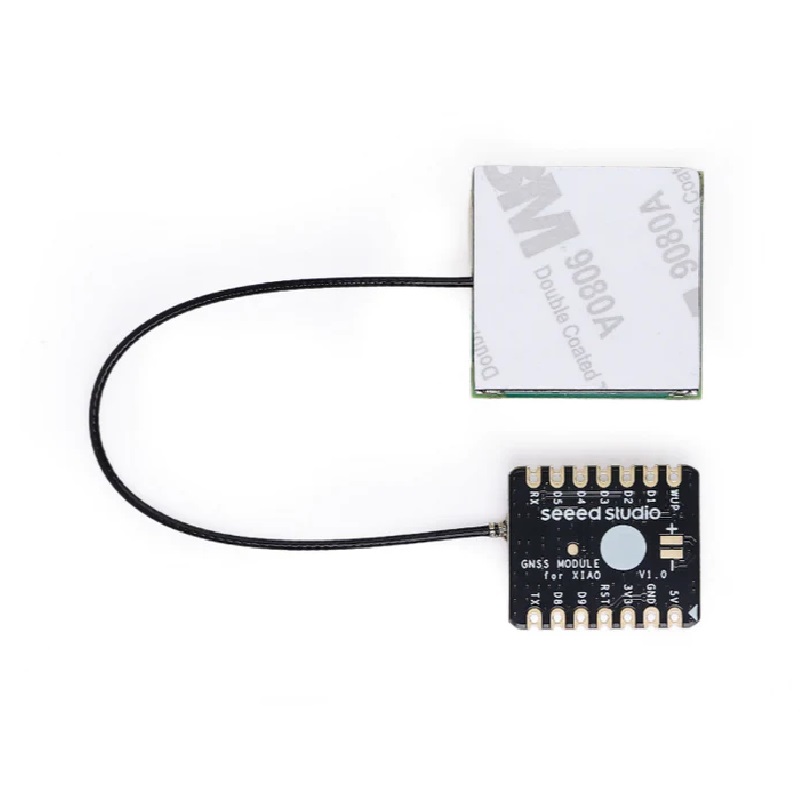

The module comes with a high-performance active GNSS antenna intended to cover GPS L1 C/A, BeiDou B1 and GLONASS L1 bands. The design also has a tiny bright green LED for indicating the 1PPS output on fix.
Applications:
- GPS navigation
- GPS Tracker
- Smart City
- Logistics and Freight Management
| Item | Detail |
|---|---|
| GNSS bands | GPS L1 C/A: 1575.42MHz GLONASS L1: 1602MHz BeiDou B1: 1561.098MHz |
| Channels | 32 tracking ch/72 acquisition ch |
| TTFF (Time To First Fix) | Cold Starts: 30s(w/o AGNSS), 5.5s(w/ GNSS) Hot Starts: 5.5s(w/o AGNSS), 2s(w/ AGNSS) |
| Sensitivity | Auto-aquisition: -148dBm Tracking: -162dBm Re-acquisition: -160dBm |
| Accuracy | Position: 2.0m CEP Velocity: 0.1m/s Acceleration: 0.1m/s² Timing: 30ns |
| UART Interface | Baud Rate: 9600~115200bps(9600bps default) Update Rate: 1Hz(default), 5Hz(Max.) Protocol: NMEA 0183, CASIC proprietary protocol |
| Antenna | Type: Active Antenna Operating Frequency: 1559–1606MHz Coaxial Cable: RF1.13 Length=10cm Cable Connector: U.FL Plug RA |
| Current consumption(w/ active antenna) | Auto-aquisition: 41mA Tracking: 41mA Standby: 360uA |
| Dimension | 18mm x 21mm |
Features
- Enhanced Reception: Built-in Low Noise Amplifier and Surface Acoustic Wave Filter for improved sensitivity and noise reduction
- High Precision: 32/72 channels, -162dBm tracking, -160dBm re-acquisition sensitivity
- Energy Efficiency: 41mA tracking/acquisition, 360µA standby
- Multi-GNSS Systems: Powered by Quectel L76K, supporting GPS, BeiDou, GLONASS and QZSS
- Ceramic Antenna: Enhanced signal reception, superior to traditional antennas.
Package Includes:

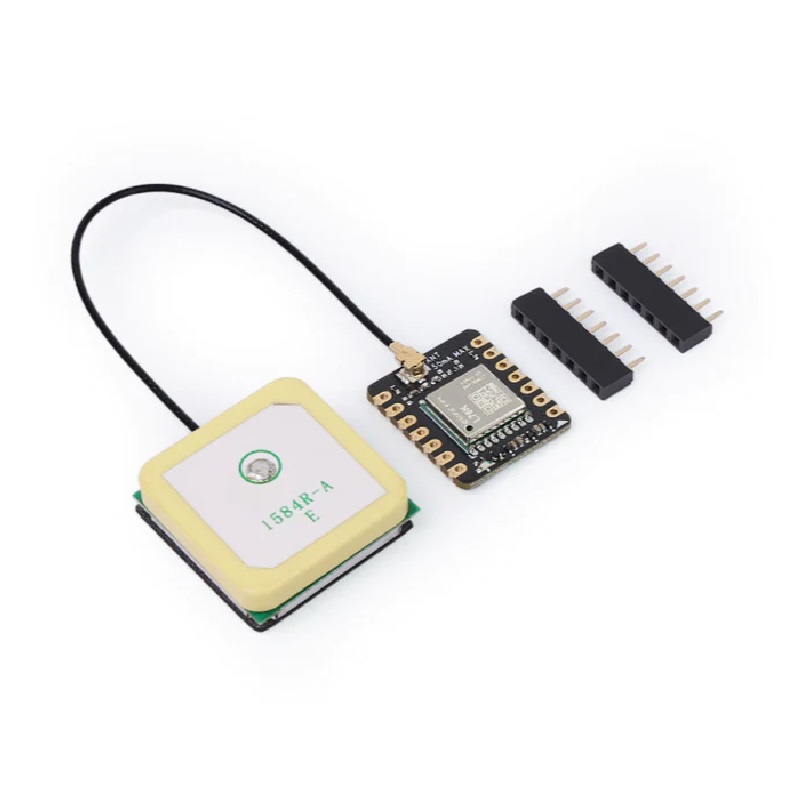

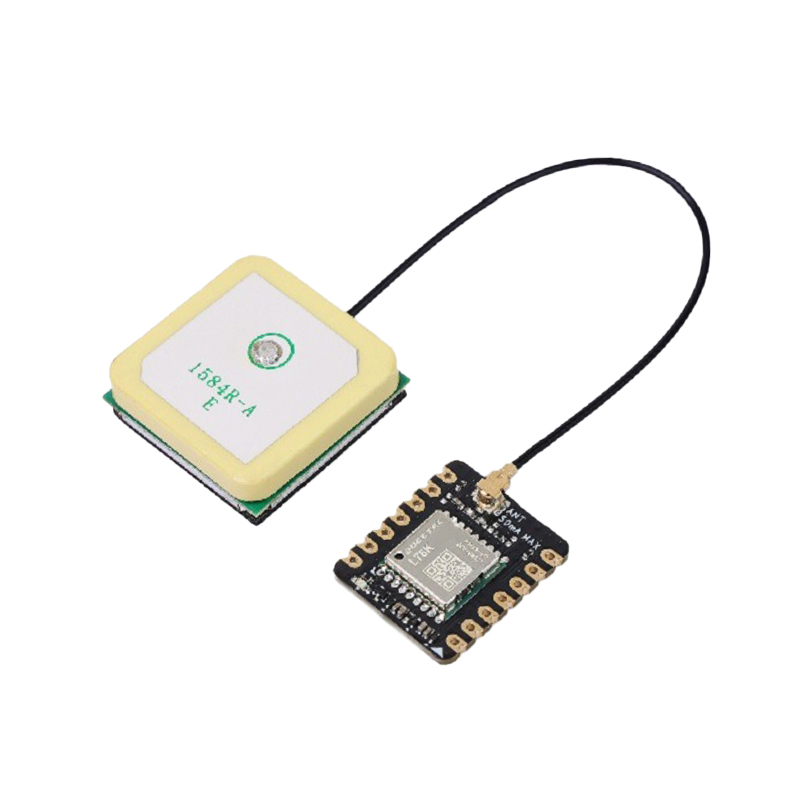

1 x L76K GNSS Module
1 x Active Antenna with iPex connector
2 x 7 Pin Female Header 2.54mm
Technical Specifications
| Channels | 32 tracking ch/72 acquisition ch |
|---|---|
| GNSS Band | BeiDou B1: 1561.098MHz, GLONASS L1: 1602MHz, GPS L1 C/A: 1575.42MHz |
| Item Type | GNSS Module |
| Shipping Dimensions | 10 × 9 × 1 cm |
| Shipping Weight | 0.017 kg |
