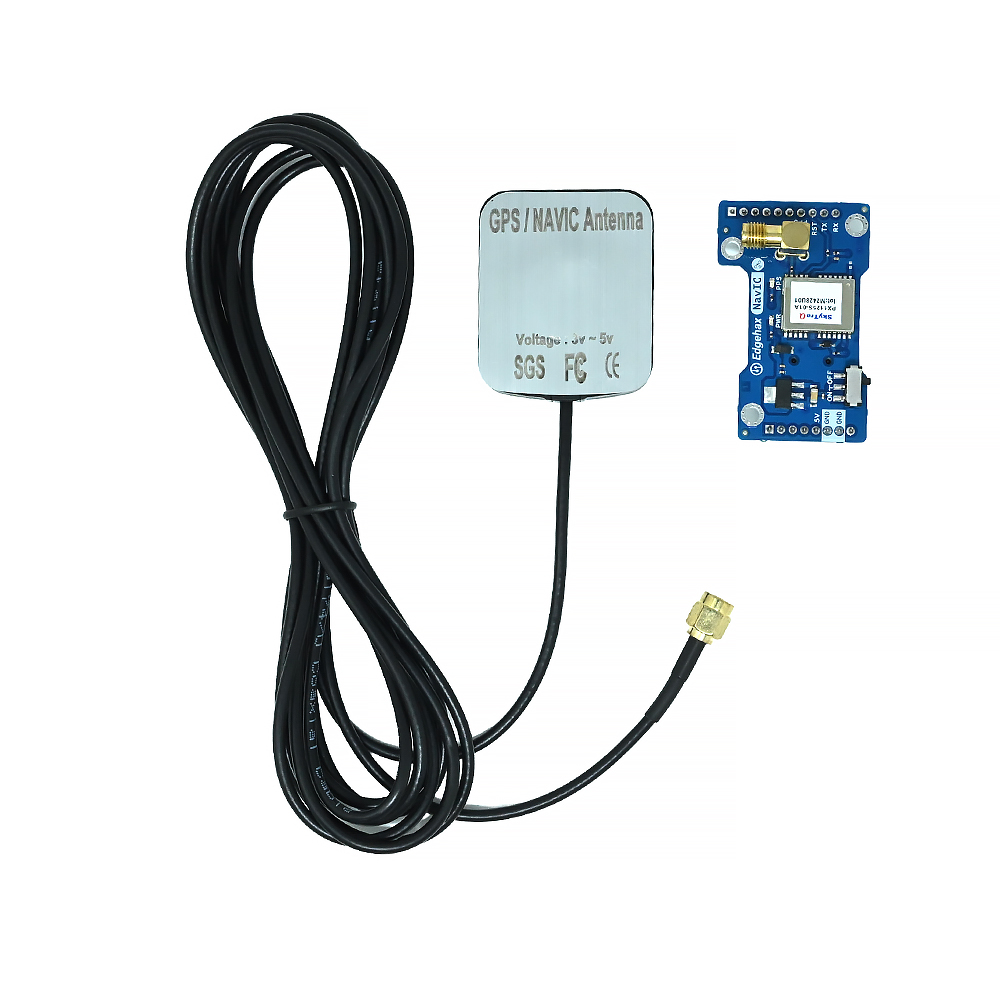

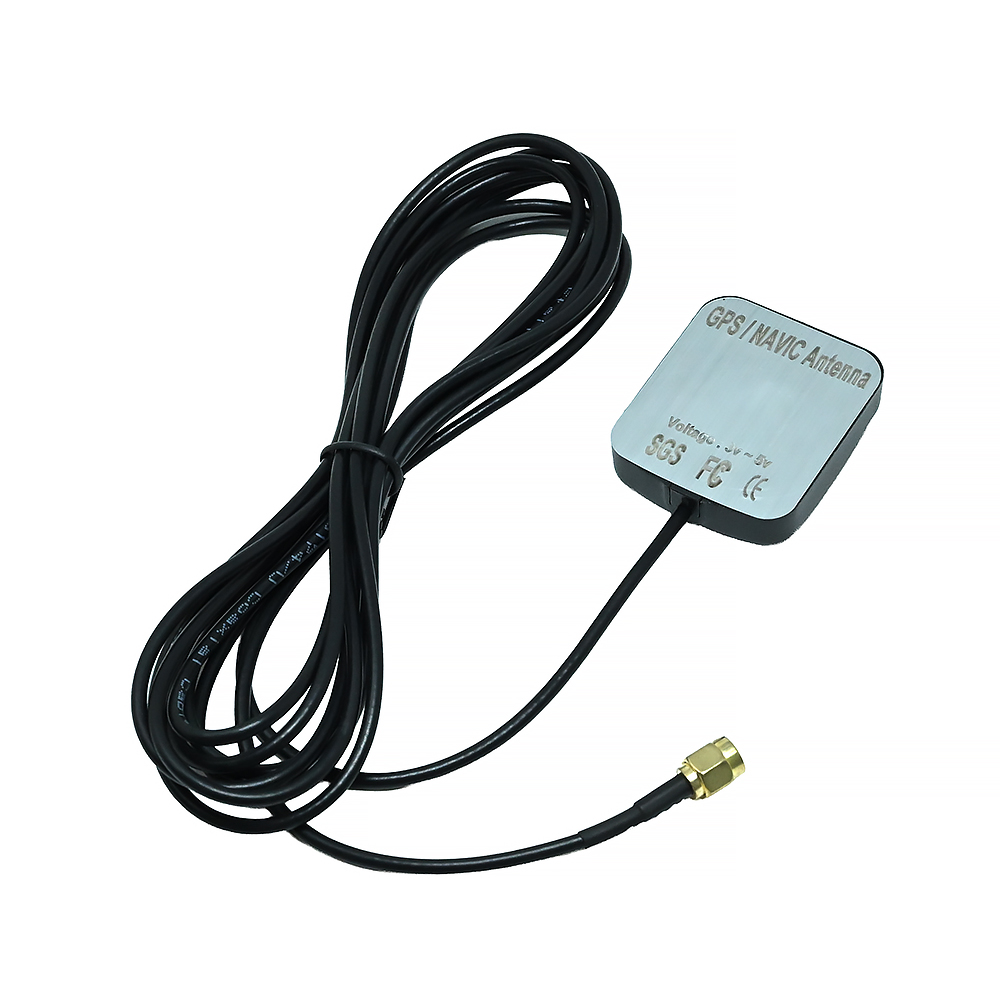

NavIC GPS with L1 & L5 Antenna
- Frequency Bands: 1575.42 MHz / 1602 MHz / 1176.45 MHz
- Cable Length: 3 meters (RG174)
- Connector Type: SMA Male (Straight)
- Impedance: 50 Ω
- Radiation Pattern: Omnidirectional
SKU: Not Found
Brand: EdgeHax
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The IRNSS/GPS/GLONASS External Antenna with RG174 Cable (3m) and SMA Male Connector is a high-performance antenna designed for reliable satellite signal reception across multiple GNSS systems. Supporting L1 and L5 frequency bands, it is fully compatible with NavIC/IRNSS, GPS, and GLONASS, ensuring accurate and stable positioning.
Equipped with a magnetic mount, this antenna allows quick and secure installation on metal surfaces, making it ideal for vehicle tracking, IoT devices, and outdoor applications. The 3-meter RG174 cable provides flexible placement options, while the omnidirectional radiation pattern ensures consistent signal reception from all directions. Its compact and durable design makes it a dependable choice for both industrial and commercial use.
Features:
- Supports NavIC/IRNSS, GPS, and GLONASS systems
- Dual-band operation: L1 + L5 for better accuracy
- Magnetic mount for easy and secure installation
- 3-meter RG174 cable for flexible positioning
- Omnidirectional signal reception for stable connectivity
Package Includes:
1 x NavIC GPS with L1 & L5 Antenna
Technical Specifications
| Cable Length (m) | 3 meters (RG174) |
|---|---|
| Cable Type | RG174 low-loss cable |
| Connector Type | SMA Male (Straight) |
| Dimensions (mm) | 46 × 38 |
| Frequency | L1 + L5 band Supported |
| Frequency Band | 1575.42 MHz / 1602 MHz / 1176.45 MHz |
| Impedance | 50 ohm |
| Interface | SMA (M) straight connector |
| Mounting Type | Magnetic mount |
| Radiation Pattern | Omnidirectional |
| Shipping Dimensions | 18 × 13 × 4 cm |
| Shipping Weight | 0.076 kg |
| Supported systems | NavIC (IRNSS), GPS, GLONASS |
