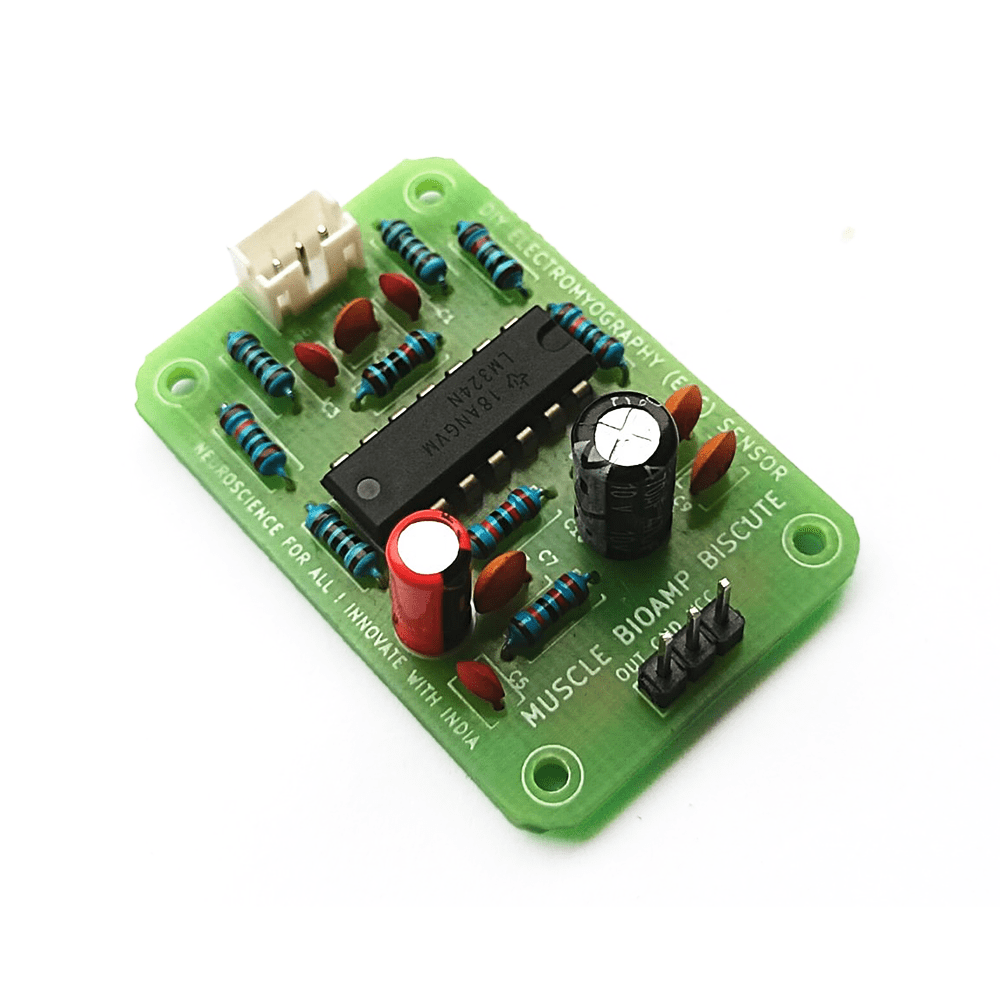

Muscle BioAmp BisCute is the most affordable DIY ElectroMyography (EMG) sensor in the world that allows you to create Human-Computer Interface (HCI) projects with ease. In the process of building your own BisCute by soldering the components on a PCB, you learn what goes into making a functional biopotential amplifier that can be used for amplifying sub mV signals generated by muscles inside your body to a level a microcontroller unit (MCU) can understand.

Note : If you are not interested in learning how to solder the components on the PCB, then check out Muscle BioAmp Candy which is the SMD version of Muscle BioAmp BisCute.

Note : Note: Arduino Uno is not included in the kit.

Features and Specifications:

1. Minimum Input Voltage: 3.3 – 30V
2. Input Impedance: 10^11 Ω
3. Fixed Gain: x2420
4. Bandpass Filter: 72 – 720 Hz
5. Compatible Hardware: Any development board with an ADC (Arduino UNO & Nano, Adafruit QtPy, STM32 Blue Pill, BeagleBone Black, Raspberry Pi Pico, to name just a few) or a standalone ADC of your choice
6. Biopotentials: EMG (Electromyography)
7. No. of channels: 1
8. Electrodes: 3 (Positive, negative and reference)
9. Dimensions: 3.0 x 4.5 cm
10. Open Source: Hardware + Software

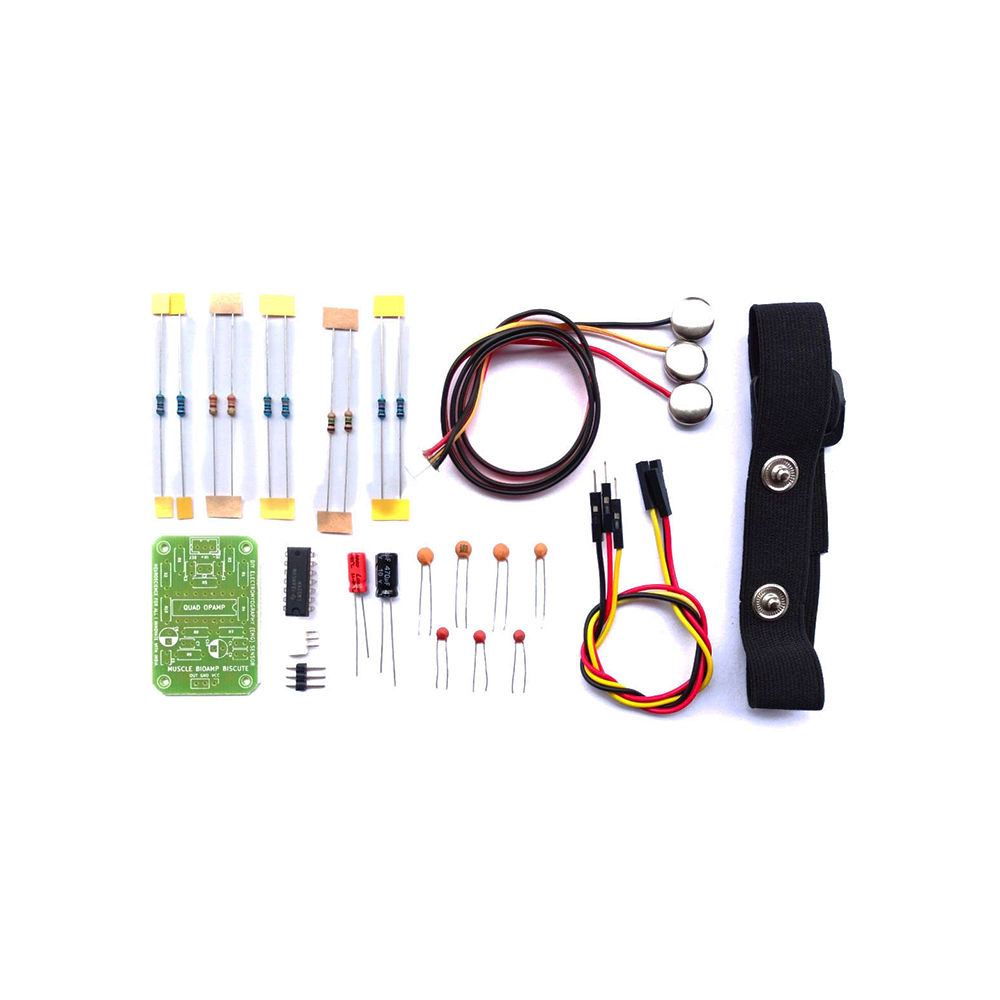

Package Includes:

1 x Muscle BioAmp BisCute

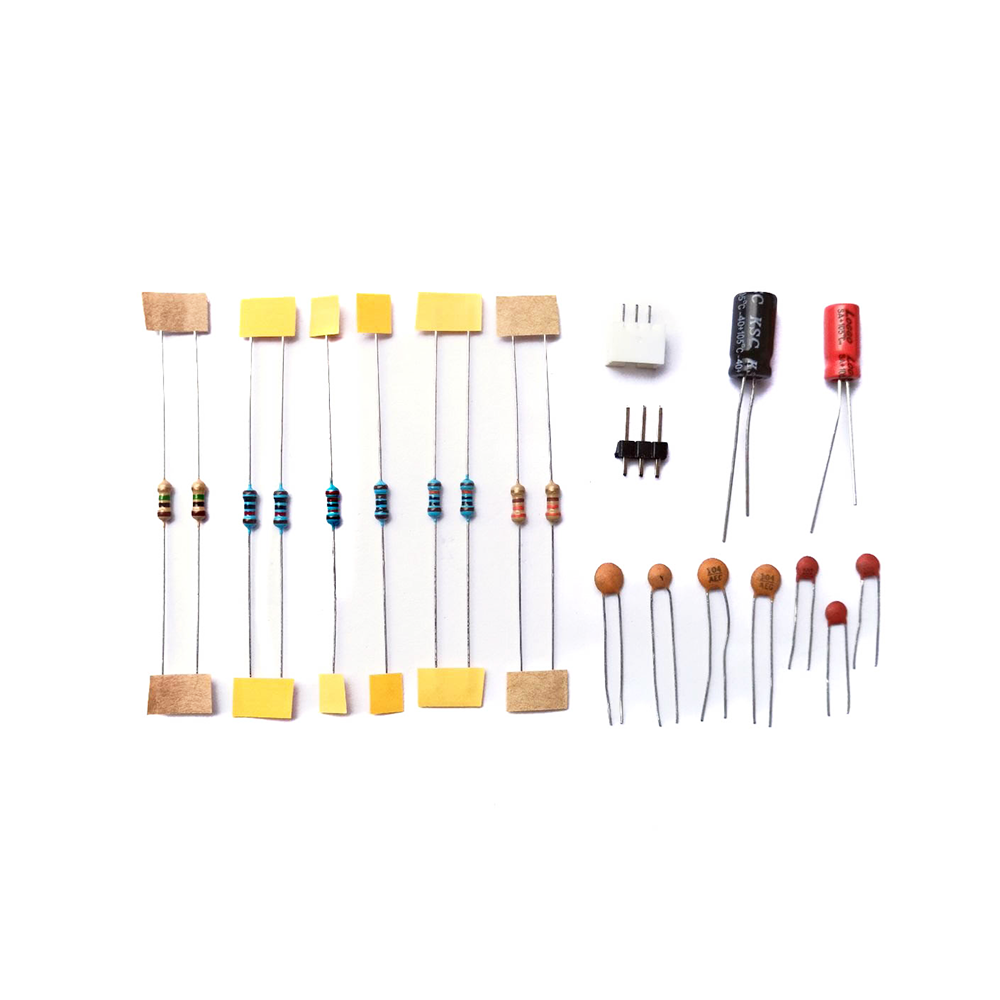

Components
1 x BioAmp Cable v3 (50cm)

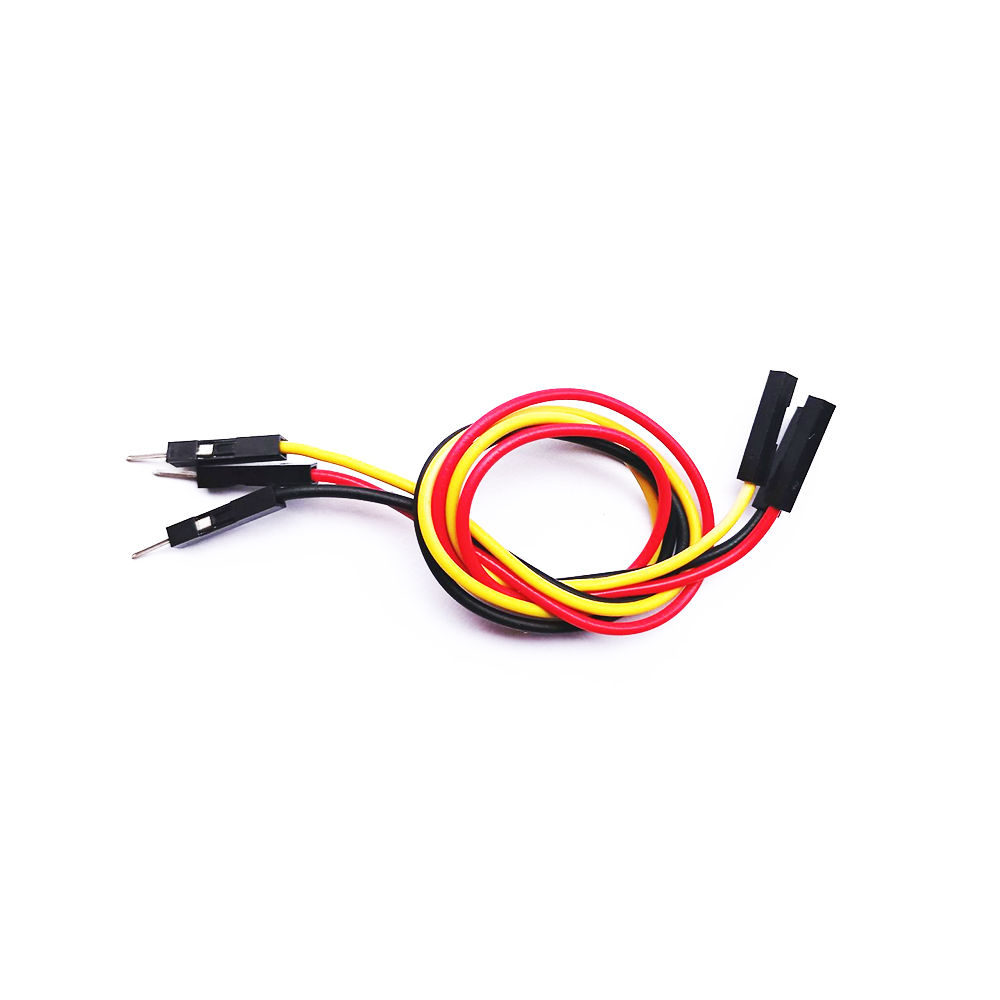

1 x Jumper Cables (Pack of 3)
3 x Boxy Gel Electrodes

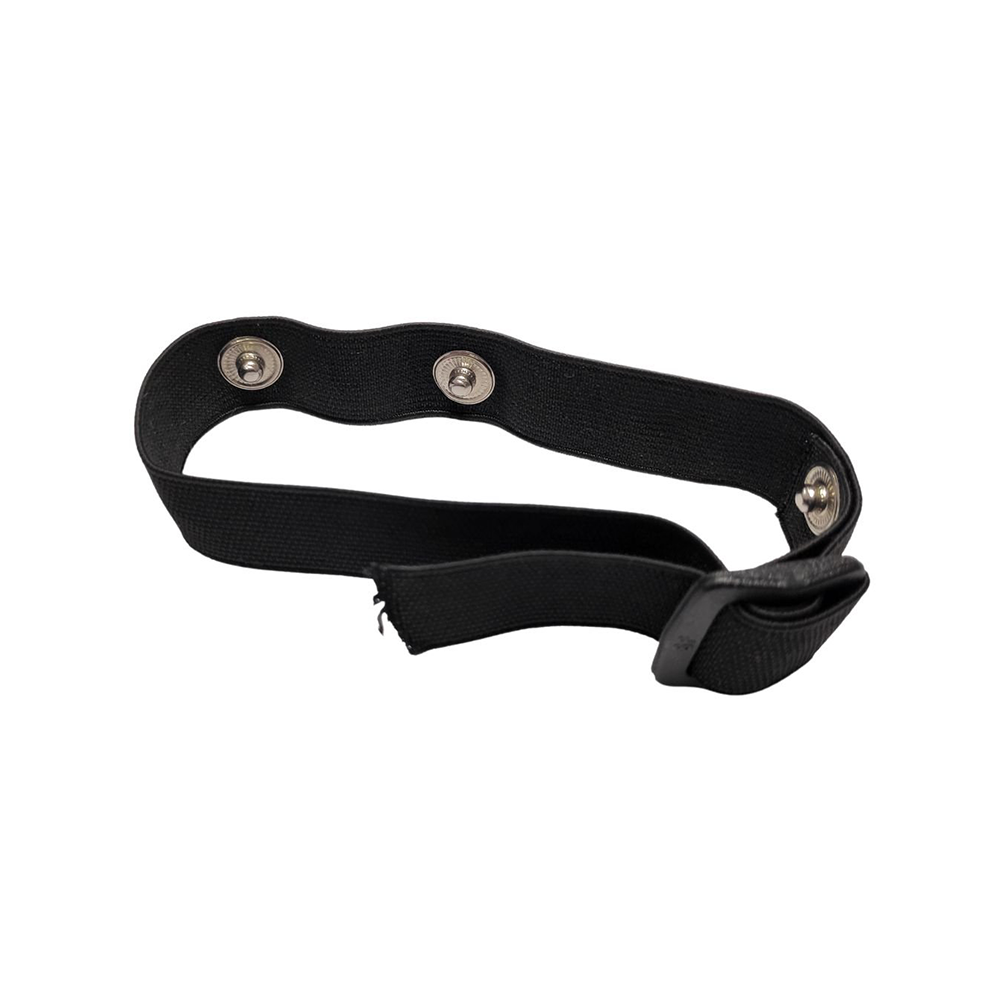

1 x  Muscle BioAmp Band

Useful Links:

Github Repository: https: https://github.com/upsidedownlabs/Muscle-BioAmp-BisCute

Complete Documentation: https://docs.upsidedownlabs.tech/hardware/bioamp/muscle-bioamp-biscute/index.html
