32-bit Microcontrollers IC

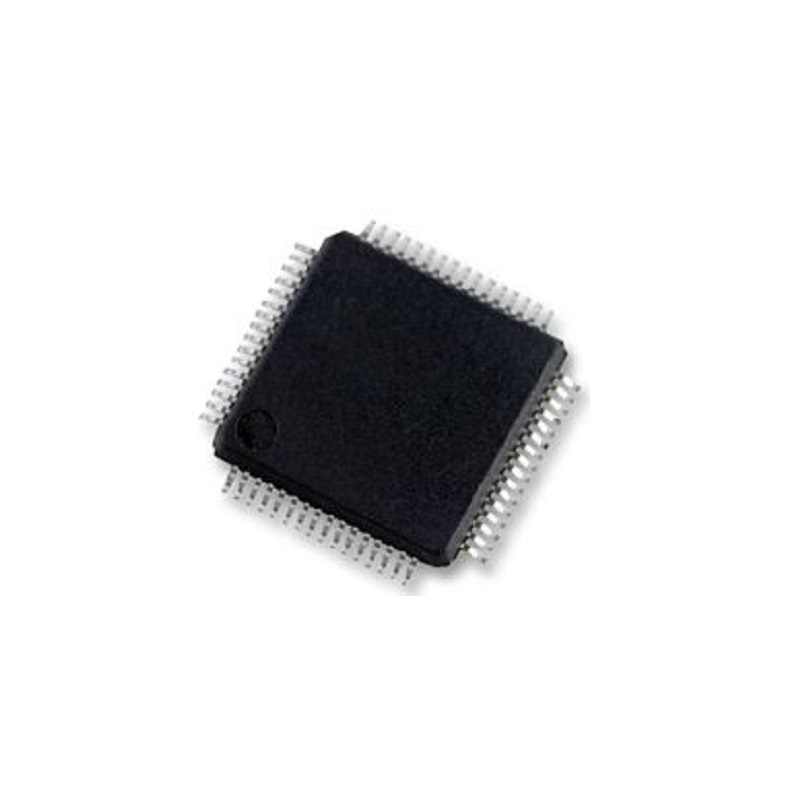

MCF51JM128VLH-NXP-32 Bit Microcontroller, Coldfire v1, 50MHz, Memory 128KB, RAM 16KB, CAN, I2C, SCI, SPI, USB, LQFP-64
- MPN: MCF51JM128VLH
- BRAND: NXP
SKU: Not Found
Brand: NXP
Out of stock
₹1179.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The MCF51JM128VLH is a ColdFire family 32-bit reduced instruction set computing (RISC) Microcontroller. The MCF51JM family a part of the Flexis microcontroller series. The Flexis series of devices includes complementary families of 8-bit S08 and 32-bit V1 ColdFire microcontrollers that have a common set of peripherals and development tools to deliver the ultimate in migration flexibility. The 32-bit MCF51JM128 further extends the low-end of the ColdFire embedded USB controller family with up to 128kB of flash memory, a full-speed USB 2.0 controller with host, device and on-the-go (OTG) support, an integrated CAN module and a 12-channel, 12-bit analog-to-digital converter (ADC). The ColdFire JM family also features a hardware cryptographic acceleration unit (CAU), a random number generator accelerator (RNGA) and several system protection features such as low-voltage detect and a computer operating properly (COP) module.
- V1 ColdFire core with background debug module
- 16KB of static RAM (SRAM)
- Multipurpose clock generator (MCG)
- Dual-role universal serial bus on-the-go device (USBOTG)
- Controller-area network (MSCAN)
- Cryptographic acceleration unit (CAU)
- Random number generator accelerator (RNGA)
- Analog comparators (ACMP)
- Analog-to-digital converter (ADC) with up to 12 channels
- 2 Inter-Integrated Circuit (IIC) modules
- 2 Serial peripheral interfaces (SPI)
- 2 Serial communications interfaces (SCI)
- Carrier modulation timer (CMT)
- Real-time counter (RTC)
- 33 General-purpose input/output (GPIO) modules plus interrupt request input
- 8 Keyboard interrupts (KBI)
- 16-bit Rapid GPIO
Specifications:
- Product Range: Coldfire V1 Family MCF51JM Series Microcontrollers
- Device Core: ColdFire v1
- Data Bus Width: 32 bit
- Operating Frequency Max: 50MHz
- Program Memory Size: 128KB
- No. of Pins: 64Pins
- IC Case / Package: LQFP
- No. of I/O’s: 51I/O’s
- Interfaces: CAN, I2C, SCI, SPI, USB
- RAM Memory Size: 16KB
- ADC Channels: 12Channels
- ADC Resolution: 12Bit
- Supply Voltage Min: 2.7V
- Supply Voltage Max: 5.5V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 105°C
- IC Mounting: Surface Mount
- MCU Family: ColdFire V1
- MCU Series: MCF51JM
Package Includes:
1 x MCF51JM128VLH-NXP-32 Bit Microcontroller, Coldfire v1, 50MHz, Memory 128KB, RAM 16KB, CAN, I2C, SCI, SPI, USB, LQFP-64
Technical Specifications
| Case/Package | LQFP |
|---|---|
| Data Bus Width | 32bit |
| Data RAM size and Type | 16 kb |
| Frequency Rating | 50MHz |
| Interface Type | CAN, I2C, SCI, SPI, USB |
| Manufacturer | NXP |
| Max. Clock Frequency (MHz) | 50MHz |
| Max. Supply Voltage (V) | 5.5V |
| Min Supply Voltage | 2.7V |
| No. of I/Os | 51 i/o |
| No. of Pins | 64Pins |
| Processor Series | Coldfire V1 Family MCF51JM Series Microcontrollers |
| Program Memory (KB) | 128KB |
| Shipping Dimensions | 1 × 1 × 1 cm |
| Shipping Weight | 0.001 kg |
