32-bit Microcontrollers IC

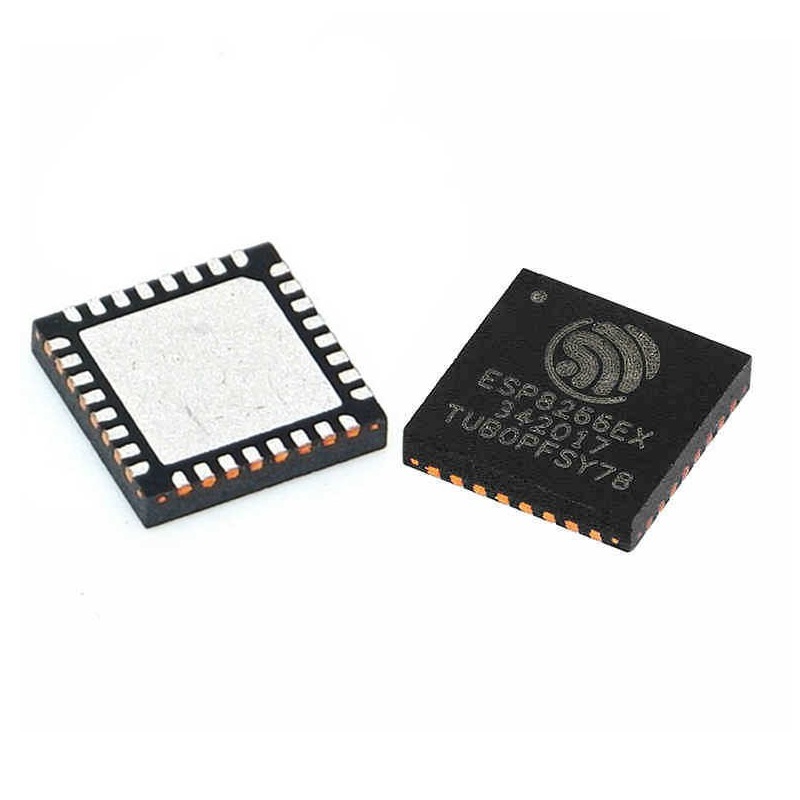

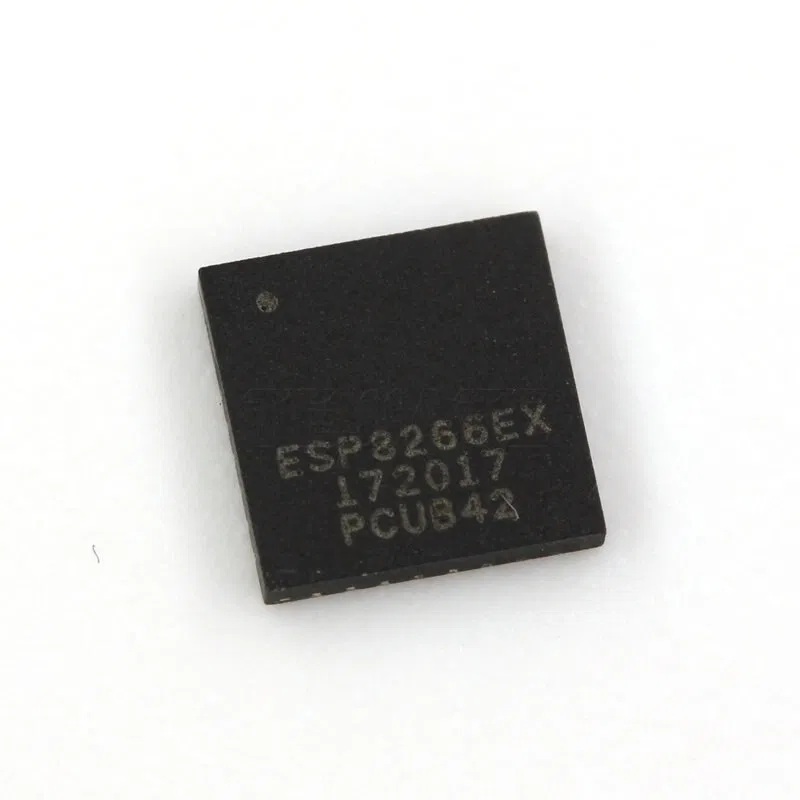

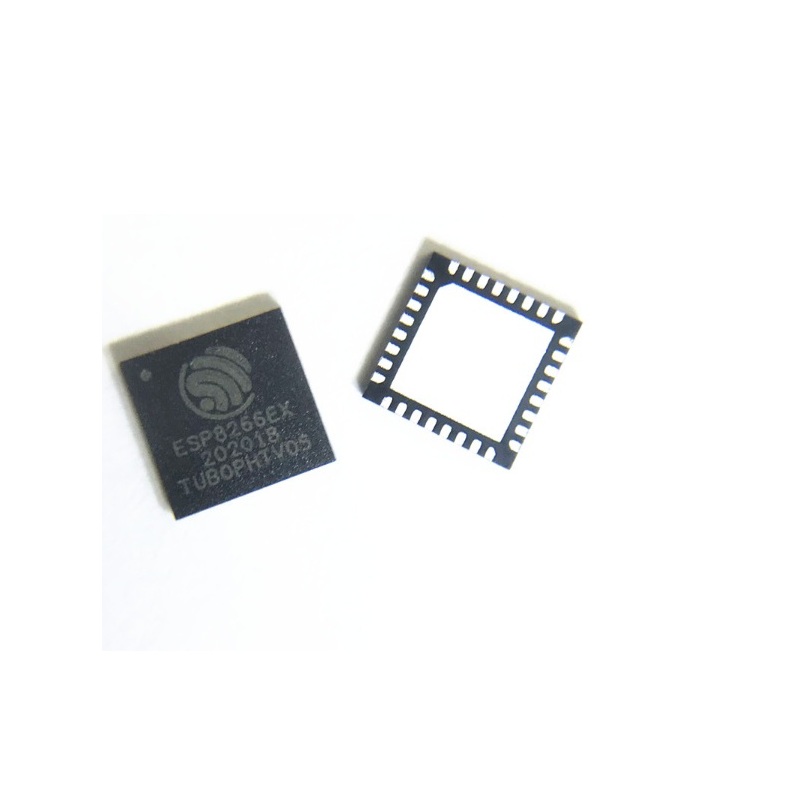

ESP8266EX Single-core 32-bit MCU 2.4GHz Wi-Fi SoC 32-Pin QFN
- 802.11b/g/n Wi-Fi+BT SOC
- Dual-core 32-bit CPU, 240 MHz frequency
- Supports UART/SPI/I2C/SDIO/GPIO/ADC/PWM
SKU: Not Found
Brand: Generic
Out of stock
₹175.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 14 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
ESP8266EX delivers highly integrated Wi-Fi SoC solutions to meet users’ continuous demands for efficient power usage, compact design and reliable performance in the IoT industry. With the complete and self-contained Wi-Fi networking capabilities, ESP8266EX can perform either as a standalone application or as the slave to a host MCU. When ESP8266EX hosts the application, it promptly boots up from the flash. The integrated highspeed cache helps to increase system performance and optimize system memory. Also, ESP8266EX can be applied to any microcontroller design as a Wi-Fi adaptor through SPI/SDIO or UART interfaces.
Pin Diagram
Features:
Package Includes:
1 x ESP8266EX IC QFN32
Technical Specifications
| Additional Specs. | 56 mA, SRAM, Supply Current Receiving |
|---|---|
| Case/Package | QFN 32 |
| Core | L106 |
| Data Bus Width | 32bit |
| Data RAM Size | 50 kB |
| Data Rate | 72.2 Mb/s Max |
| Frequency Rating | 2.4GHz |
| Interface Type | ADC, GPIO, I2C, I2S, SDIO, SPI, UART |
| Length (mm) | 5 mm |
| Manufacturer | Espressif |
| Maximum Clock Frequency | 160 MHz |
| Mounting Style | SMD/SMT |
| Net Weight | 68.500 mg |
| Operating Frequency(GHz) | 2.4 to 2.5GHz |
| Operating Supply Voltage(V) | 2.5 V to 3.6 V |
| Operating Temperature (°C) | – 40 C To 125 C |
| Output Power | 20 dBm |
| Product Type | RF System on a Chip – SoC |
| Program Memory (KB) | 1 MB |
| Program Memory Type | FLASH |
| Sensitivity (dBm) | -72 dBm |
| Shipping Dimensions | 1 × 1 × 1 cm |
| Shipping Weight | 0.001 kg |
| Supply Current Transmitting | 170 mA |
| Width (mm) | 5 mm |
