The LSM6DS3TR-C is a low-power system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope. It operates at 0.90 mA in high-performance mode, offering always-on low-power features for optimal motion sensing. The device supports a wide range of accelerometer (±2/±4/±8/±16 g) and gyroscope (±125/±250/±500/±1000/±2000 dps) full-scale ranges. It features a 4 kbyte FIFO buffer for dynamic data batching, smart motion functions like pedometer and step detection, and various interrupts including free-fall and 6D/4D orientation. With SPI/I2C interfaces and a compact LGA package, it’s ideal for wearable and IoT applications.

Features:

1. Low power consumption: 0.90 mA in high-performance mode
2. Smart FIFO: 4 kbyte for dynamic data batching
3. Interfaces: SPI & I2C with main processor data synchronization

Package Includes:

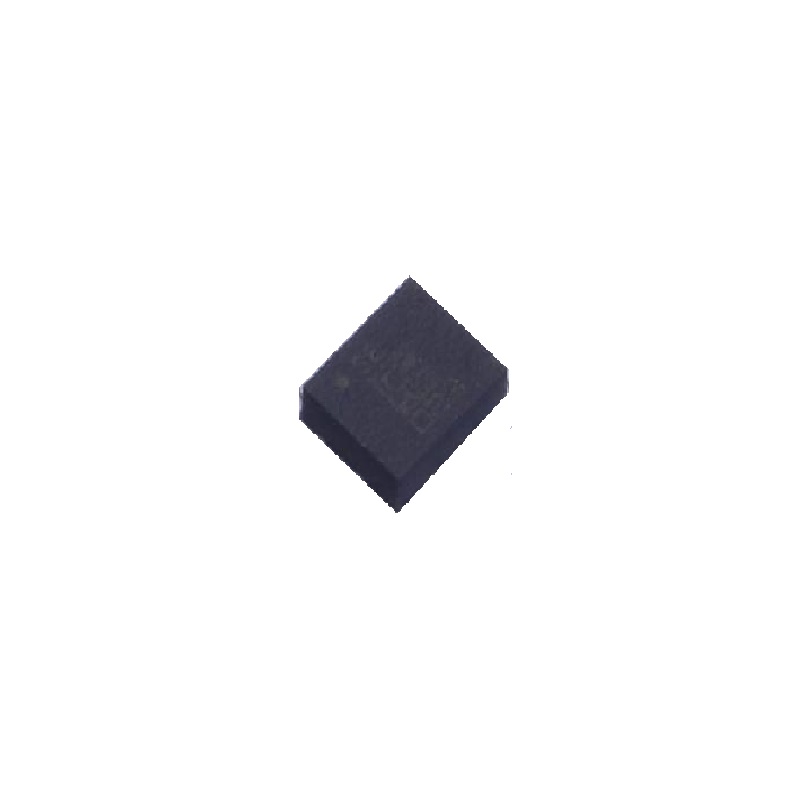

1 x LSM6DS3TR-C STMicroelectronics LGA-14(2.5×3) Accelerometer gyroscope LGA-14(2.5×3) Accelerometers ROHS
