Hall Sensor

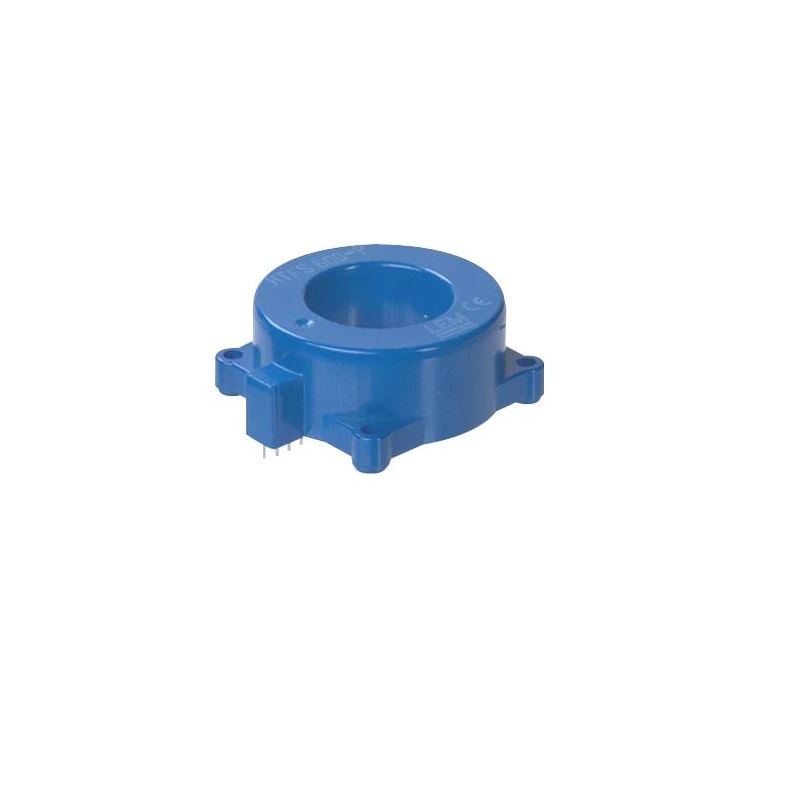

LEM HTFS 200A Current Transducer Voltage Output
- Galvanic isolation between primary and secondary circuit
- +5V Single power supply
- Ratiometric offset
- Fixation by M3 nuts and screws
- Small size and space-saving
SKU: Not Found
Brand: LEM
Out of stock
₹2692.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The LEM Current Transducer HTFS Series PCB 200A -300A to 300A 1 % Voltage Output 5 Vdc M3 is a Current Transducer for the electronic measurement of DC, AC, pulsed, mixed with galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit). Hall effect measuring principle. Low power consumption. The isolated plastic case is recognized according to UL94V-0. High immunity to external interference.
Applications:
Automotive, Motor Drive & Control, Power Management, Test & Measurement, Maintenance & Repair, Industrial
Warnings:
Risk of electrical shock, when operating the transducer, certain parts of the module can carry hazardous voltage. Ignoring this warning can lead to injury and/or cause serious damage.
Features:
- Galvanic isolation between primary and secondary circuit
- +5V Single power supply
- Ratiometric offset
- Fixation by M3 nuts and screws
- Small size and space-saving
- Only one design for a wide current rating range
- VREF IN/OUT
Package Includes:
1 x LEM Current Transducer, HTFS Series, PCB, 200A, 1 %, Voltage Output, 5 Vdc, M3
Technical Specifications
| Accuracy | 0.01 |
|---|---|
| Current Measuring Range AC | -300 to 300 |
| Current Measuring Range DC | -300 to 300 |
| Min Supply Voltage | 4.75 |
| Response Time (uS) | 7 |
| Shipping Dimensions | 6 × 5 × 3 cm |
| Shipping Weight | 0.04 kg |
| Supply voltage(VDC) | 5.25 |
