MCU-758 ACS758LCB-050B-PFF-T Hall Current Sensor Module
- Working voltage: 3V-5V (MAN SV)
- Static output voltage: VCCi2
- Working current: 135m2A (MAX)
- Small in size, with easy mounting capability.
- Monolithic Hall IC for high reliability
SKU: Not Found
Brand: Generic
Out of stock
₹416.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description

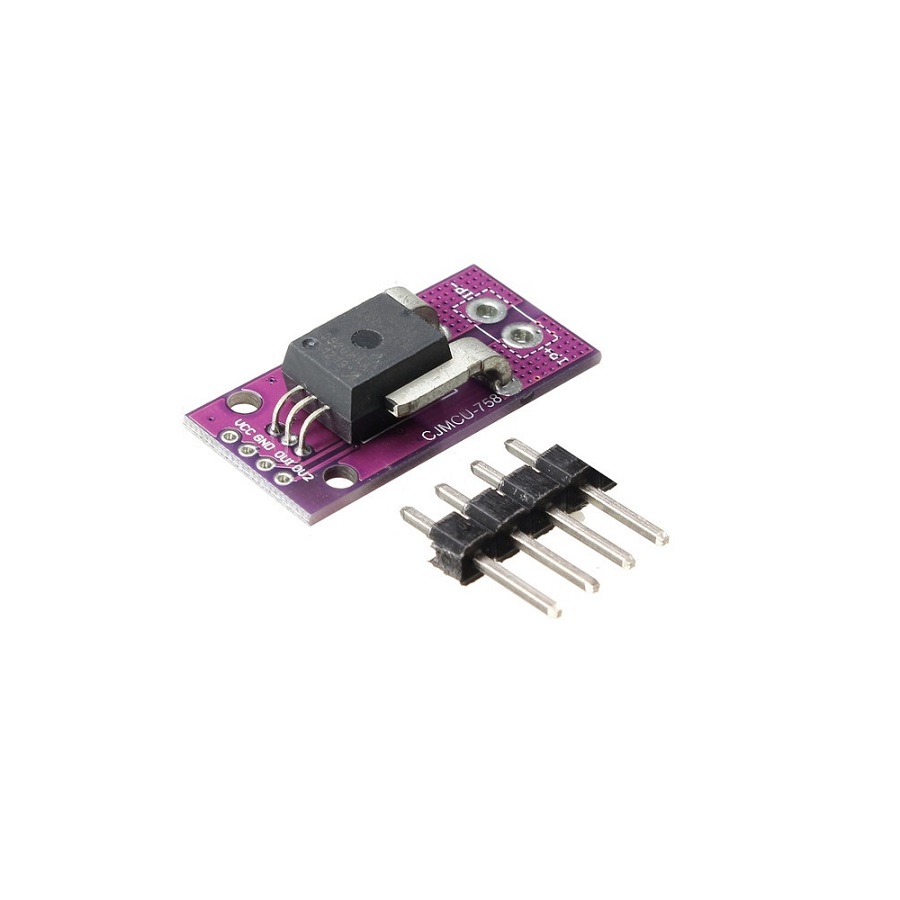

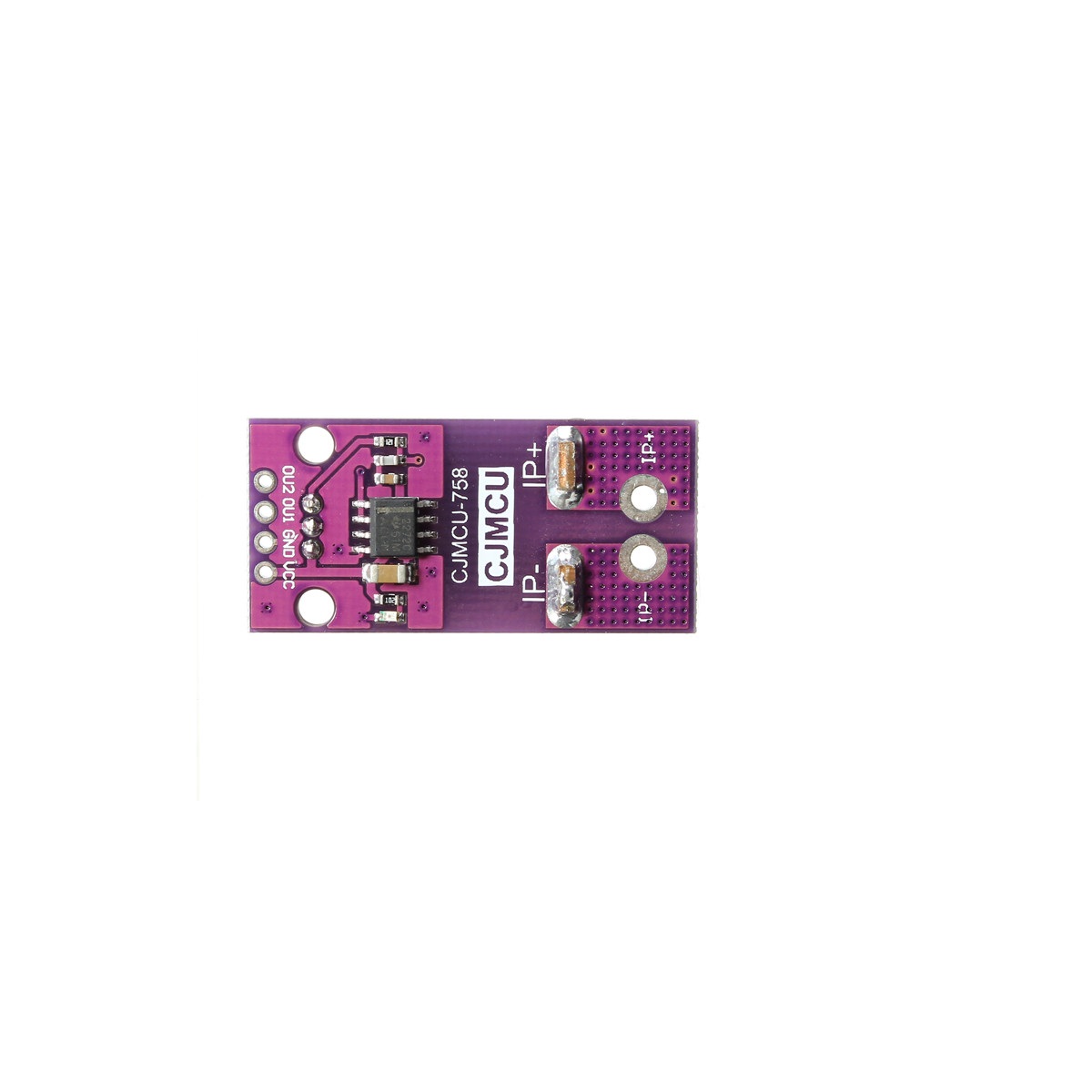

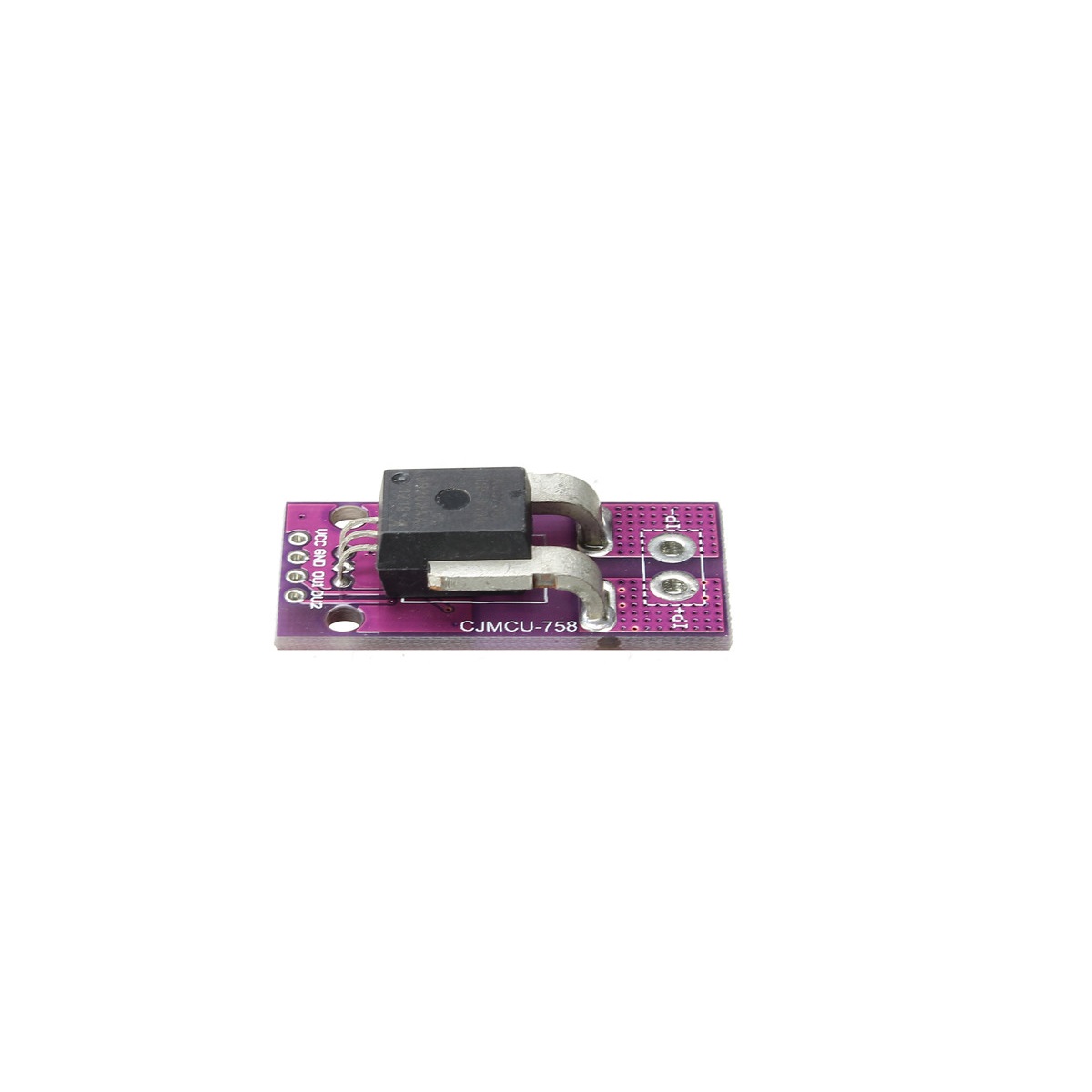

This MCU-758 ACS758LCB-050B- PFF-T Hall Current Sensor Module is based on the Allegro Hall-effect Based Linear Current Sensor IC ACS758LCB-050B. This is 50 Ampere Bi-directional current sensor Module.
The relationship between voltage output and current input:
VOUT = VOUT(Q) + Vsens x I VOUT(Q) is the quiescent output voltage, which is VCC/2, which is the output voltage when there is no input. Vsens is a sensor-sensitive scale, also known as a coefficient. I is the current flowing from IP+ to IP-.
For example, suppose the sensor model is 050B, VCC is 5V, and I current is 10A, then the output is 5V / 2+40mV/A x10A=2.9V.
Features:
- Small in size, with easy mounting capability.
- Monolithic Hall IC for high reliability
- Extremely stable output offset voltage
- Factory-trimmed for accuracy.
- Nearly zero magnetic hystereses.
Package Includes:
1 x MCU-758 Hall Current Sensor
Technical Specifications
| Bandwidth (KHz) | Internal: 120 KHz |
|---|---|
| Detection range | ±50A |
| Linearity (mV/A) | 40 |
| Model | Hall Current Sensor |
| Module Size | 37 X 18 |
| Module weight | 8.8 g |
| Operating Current (mA) | 13.5 mA |
| Operating Temperature (°C) | -40 to 150 |
| Output Current (mA) | 3 mA |
| Shipping Dimensions | 8 × 6 × 1 cm |
| Shipping Weight | 0.007 kg |
| Storage Temperature (°C) | -65 °C – 165 °C |
