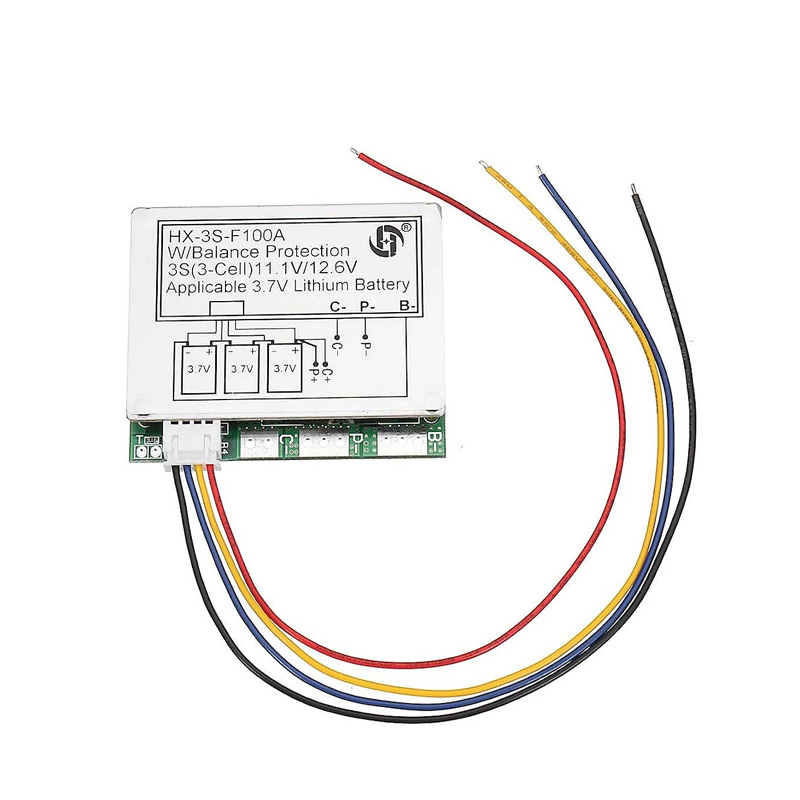

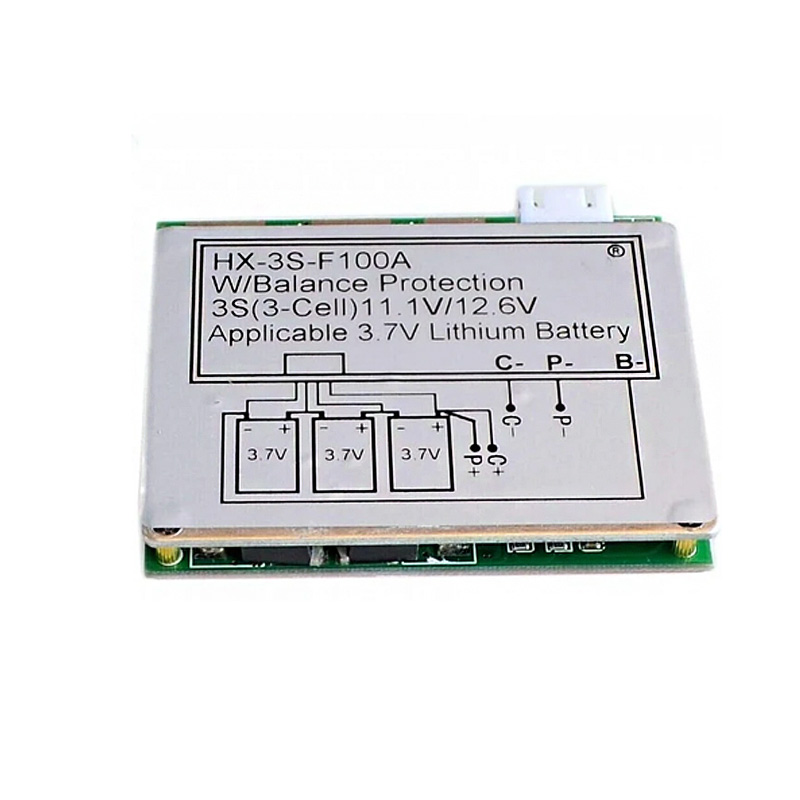

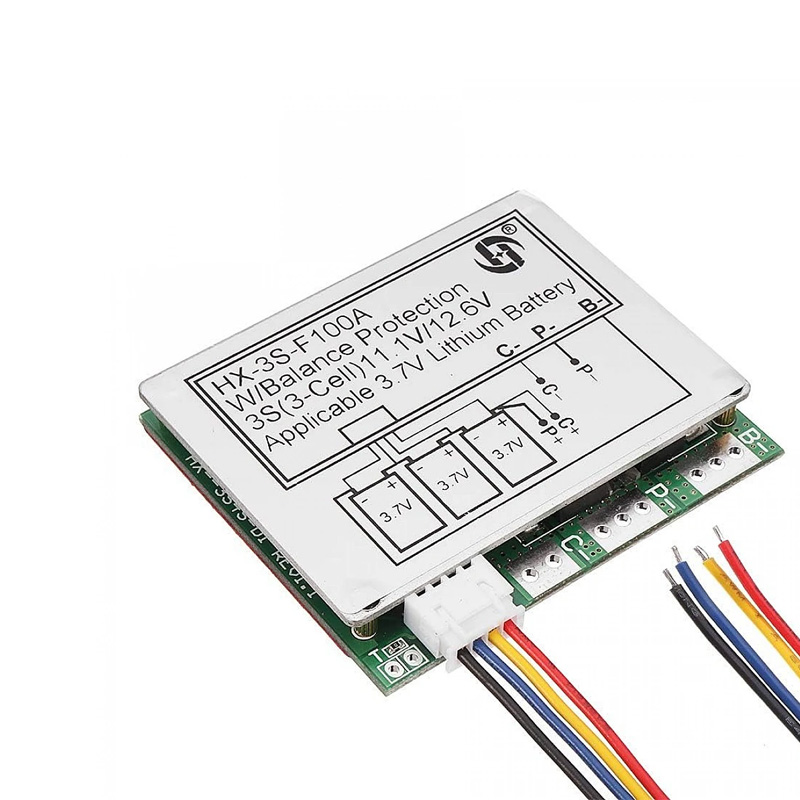

HX-3S-F100A Lithium Battery Protection Board 3S 11.1V/12.6V
- Model: HX-3S-F100A
- Battery Type: 3S Li-ion / LiPo
- discharge Current: 100A (Continuous ), Peak Current: 120A
- Full Charge Voltage: 12.6V
SKU: Not Found
Brand: Generic
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The 3S 100A Lithium Battery Protection Board (Model: HX-3S-F100A) is designed to provide advanced safety and performance management for 3-series lithium battery packs. Supporting 11.1V (nominal) and 12.6V (fully charged), this BMS ensures stable operation, this BMS ensures stable operation in high-power applications.
With up to 100A continuous discharge current and 120A instantaneous discharge capability, it is ideal for demanding systems such as e-bikes, power tools, robotics, and solar energy storage. Built with MOSFET-based switching and balancing functionality, it helps maintain cell stability, improve efficiency, and extend battery lifespan.
Features:
- Designed for 3S (11.1V/12.6V) lithium battery packs
- Supports 100A continuous discharge current
- 120A peak/instantaneous discharge capability
- Overcharge, over-discharge & short-circuit protection
- MOSFET-based switching with balanced charging support
- Compact and lightweight PCB design
Package Includes:
1 x HX-3S-F100A Lithium Battery Protection Board 3S 11.1V/12.6V
1 x 4 Pin Connecting Cable
Technical Specifications
| Battery Type | 3S Li-ion / LiPo / LiFePO4 |
|---|---|
| Height (mm) | 08 |
| Item Type | Battery Protection Board |
| Length (mm) | 70 |
| Model No | HX 3S F100A |
| Protection Features | Overcharge, Over-discharge, Overcurrent, Short Circuit |
| Shipping Dimensions | 10 × 8 × 3 cm |
| Shipping Weight | 0.055 kg |
| Weight (g) | 48 |
| Width (mm) | 60 |
