Drone GPS GNSS Modules and Antennas
Holybro DroneCAN M9N GPS
- Model: Holybro DroneCAN M9N GPS
- Advanced GNSS Technology
- Powerful Processor
- DroneCAN Protocol
- Clear Status Indication
- Serial Port Efficiency
- CAN Bus Compatibility
SKU: Not Found
Brand: Holybro
Out of stock
₹10601.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The Holybro DroneCAN GPS has an UBLOX M8N or M9N module, BMM150 compass, tri-colored LED indicator. It has the STM32G4 Processor and adopted the DroneCAN protocol for communication, making it more reliable and better in dealing with electromagnetic interference compare to serial connection. It does not occupy any serial port of the flight controller, and different CAN devices can be connected to the same CAN bus via a CAN splitter board.
Features:
- Advanced GNSS Technology
- Powerful Processor
- DroneCAN Protocol
- Clear Status Indication
- Serial Port Efficiency
- CAN Bus Compatibility
- LNA MAX2659ELT+ RF Amplifier
- Rechargeable Farah capacitance
- Low noise 3.3V regulator

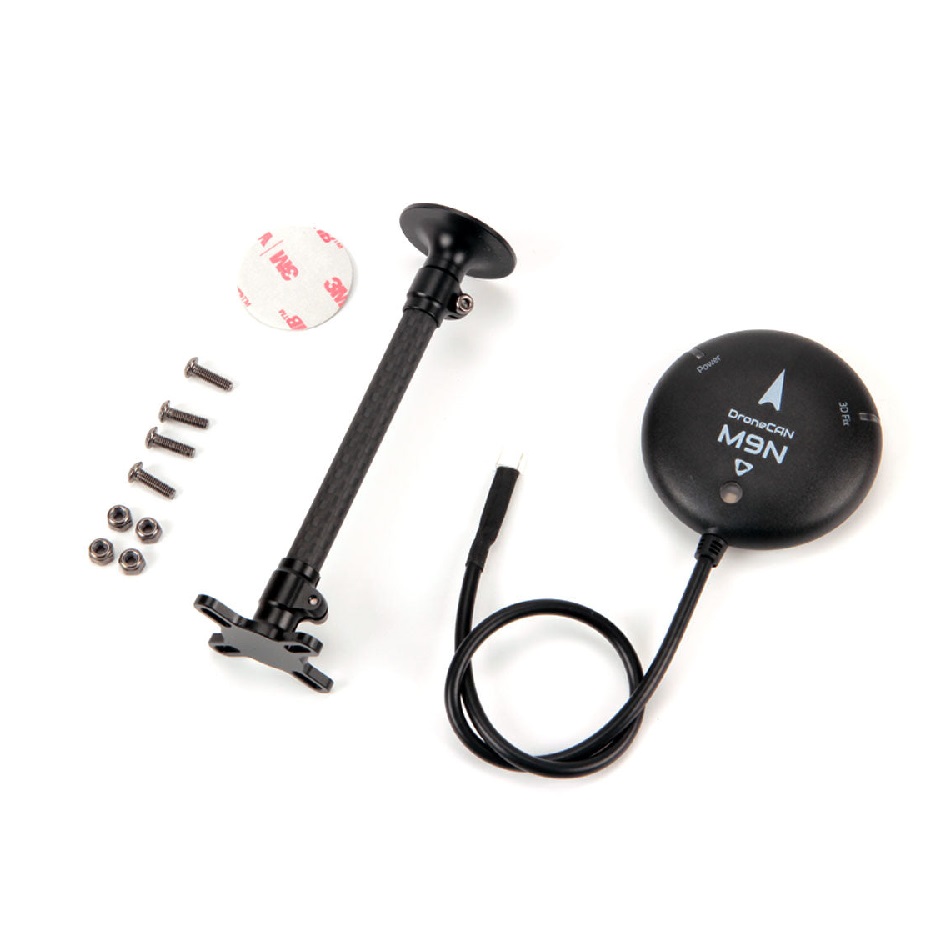

Package Includes:
1 x Holybro DroneCAN M9N GPS
Technical Specifications
| Accuracy | 2.5 |
|---|---|
| Band Rate | GPS: L1C/A GLONASS: L10F Beidou: B1I Galileo: E1B/C |
| Compass | BMM150 |
| Current Consumption (mA) | Less than 200mA @ 5V |
| GNSS | Ublox NEO M9N |
| Input Voltage (V) | 4.7 to 5.2 |
| Item Type | GPS Module |
| Navigation Update Rate | 5Hz Default(10Hz MAX) |
| No. of Concurrent GNSS | Up to 4 GNSS (GPS, Galileo, GLONASS, BeiDou) |
| Operating Temperature (°C) | -40~80C |
| Processor | STM32G4 (170MHz, 512K FLASH) |
| Refresh Speed (ms) | 0.05 |
| Shipping Dimensions | 14 × 12 × 5 cm |
| Shipping Weight | 0.111 kg |
| Size (mm) | Diameter: 54mm Thickness: 14.5mm |
